Overview

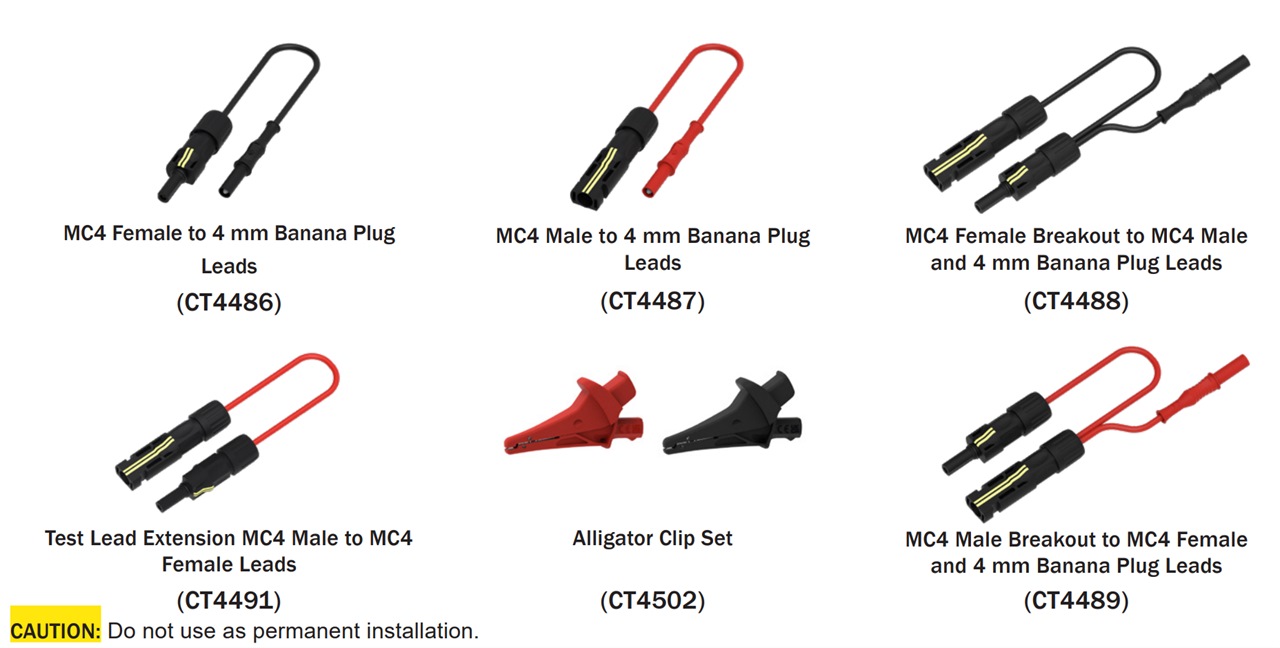

The CT4490 is a convenient and complete kit that provides all the necessary test leads to make a variety of different measurements on photovoltaic systems. Intended to be used with instruments featuring sheathed 4 mm banana jacks, each lead is specifically designed to directly connect to the PV panel for crucial measurements. The included CT4486 (MC4 female to 4 mm banana plug) and CT4487 (MC4 male to 4 mm banana plug) leads can be used to easily measure open-circuit voltage and short-circuit current on PV panels. The CT4488 (MC4 female breakout to MC4 male and 4 mm banana plug leads) and CT4489 (MC4 male breakout to MC4 female and 4 mm banana plug leads) tests in circuit operating voltage and current in a single set up. The CT4491 (MC4 male to MC4 female leads) and CT4502 (Alligator clip set) are included to provide connection flexibility. Every piece included in this kit has a 1500 VDC CAT III rating for a safe, easy, and secure usage.
See datasheet for example connection configurations.
Features:
- Complete PV accessory kit for testing and maintenance
- IEC 61010-031 Safety rated
- MC4 to 4 mm banana plug lead assemblies
- Double insulated PVC wire
- CE and RoHS 2 compliant
Kit Contents
- (3) Pouch, Clear Polyethylene - 451033-001
- (2) Packaging inserts - 451-141-000
- (1) Lead, PV Female Connector, 4mm P-MC4, Black - CT4486-100-0
- (1) Lead, PV Male Connector, 4mm P-MC4, Red - CT4487-100-2
- (1) Lead, PV Female Breakout to PV Male and 4mm Plug - CT4488-30-100-0
- (1) Lead, PV Male Breakout to PV Female and 4mm Plug - CT4489-30-100-2
- (2) PV Male (MC4) to PV Female (MC4) Test Lead Extension - CT4491-100-2
- (1) Photovoltaic Alligator Clip, 1500V CATIII/1000V CATIV, Black - CT4501-0
- (1) Photovoltaic Alligator Clip, 1500V CATIII/1000V CATIV, Red - CT4501-2
Specifications
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 49 days
