Product resources
CT4487-100-2
CT4487 Series
Active CatalogPhotovoltaic Test Lead, MC4 Male to 4 mm Sheathed Banana Plug
Lead, PV Male Connector, 4 mm Plug-MC4, Red
$27.001 Year Warranty
Where to Buy
Select Variant
Length
Overview

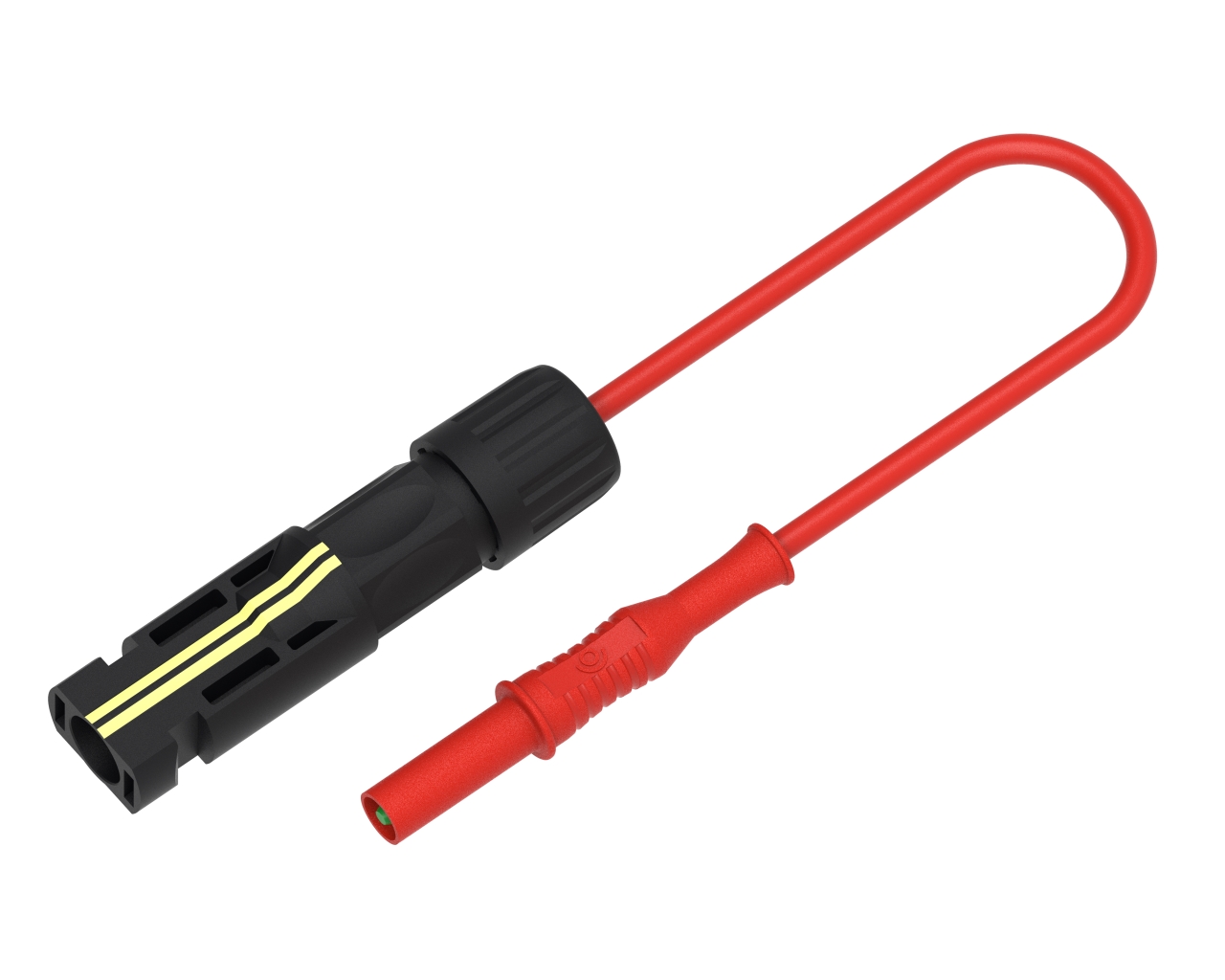

The CT4487 is an interconnecting, MC4 male to 4 mm sheathed banana plug lead. Designed to allow the measurement of open-circuit voltage (Voc) and short-circuit current (Isc) of solar panels, it provides a reliable and safe connection between photovoltaic modules and your measuring device. The double insulated PVC wire is both flexible and durable to provide ease of use. Use with Cal Test’s CT4491, MC4 extension lead, whenever additional lead length is required.
Available individually, as a pair, or in a kit.
Features:
- Test lead set for PV testing and maintenance
- IEC 61010-031 Safety rated
- Interconnection (MC4 / 4 mm sheathed plug)
- Double insulated PVC wire
- Contact material: BeCu, AuNi plated
- CE Mark
- RoHS 2 Compliant
Specifications
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
