CT4503
CT4503 Series
Active CatalogPhotovoltaic Test Lead Set, MC4 to 4 mm Sheathed Banana Plug

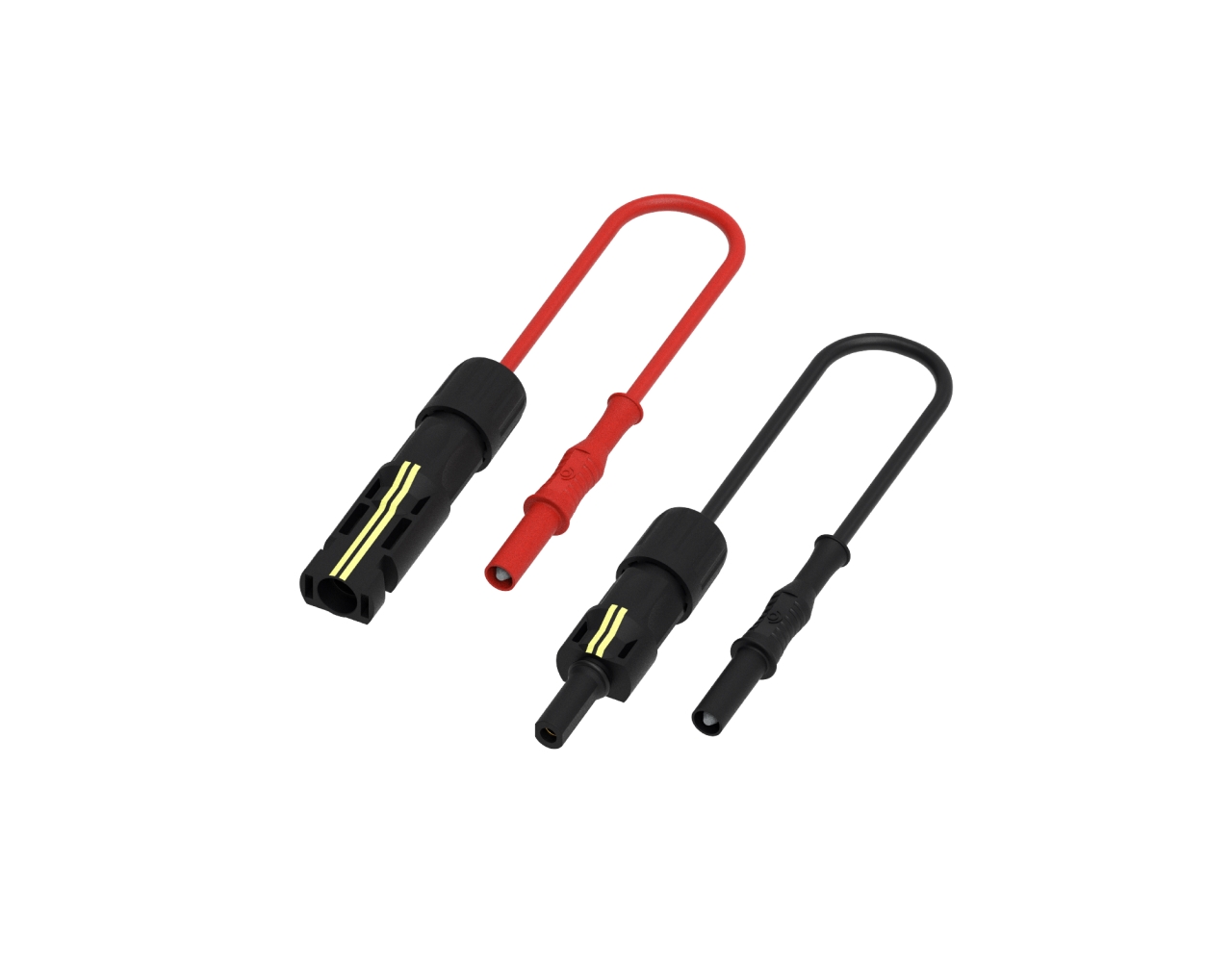

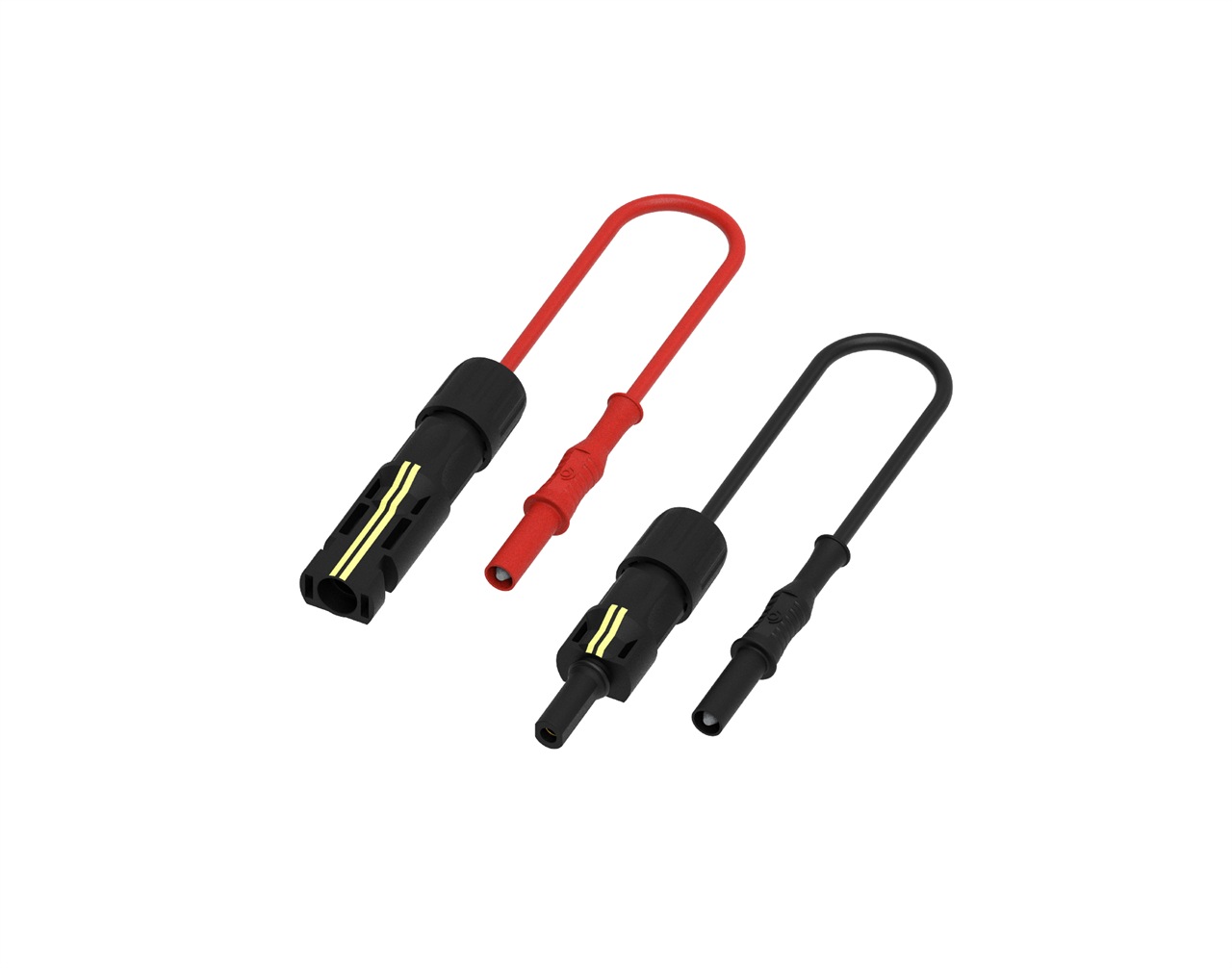

Photovoltaic Test Lead Set, MC4 to 4 mm Sheathed Plug
Overview
The CT4503 is a set of interconnecting, MC4 to 4 mm sheathed banana plug leads. Designed to allow the measurement of open-circuit voltage (Voc) and short-circuit current (Isc) of solar panels, they provide a reliable and safe connection between photovoltaic modules and your measuring device. The double insulated PVC wire is both flexible and durable to provide ease of use. These photovoltaic leads can be used with Cal Test’s CT4491, MC4 extension lead, whenever additional lead length is required.
Available individually, as a pair, or in a kit.
Photovoltaic Test Lead Set Includes:
CT4486-100-0 [MC4 Female to 4 mm Sheathed Plug, 100 cm, black]
CT4487-100-2 [MC4 Male to 4 mm Sheathed Plug, 100 cm, red]
Features:
- Test lead set for PV testing and maintenance
- IEC 61010-031 Safety rated
- Interconnection (MC4 / 4 mm sheathed plug)
- Double insulated PVC wire
- Contact material: BeCu, AuNi plated
- CE Mark
- RoHS 2 Compliant
Kit Contents
- (1) Pouch, Clear Polyethylene - 451033-001
- (1) Lead, PV Female Connector, 4mm P-MC4, Black - CT4486-100-0
- (1) Lead, PV Male Connector, 4mm P-MC4, Red - CT4487-100-2
Specifications
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 49 days
- See More Specifications
- Datasheet
