CT4489-30-100-2

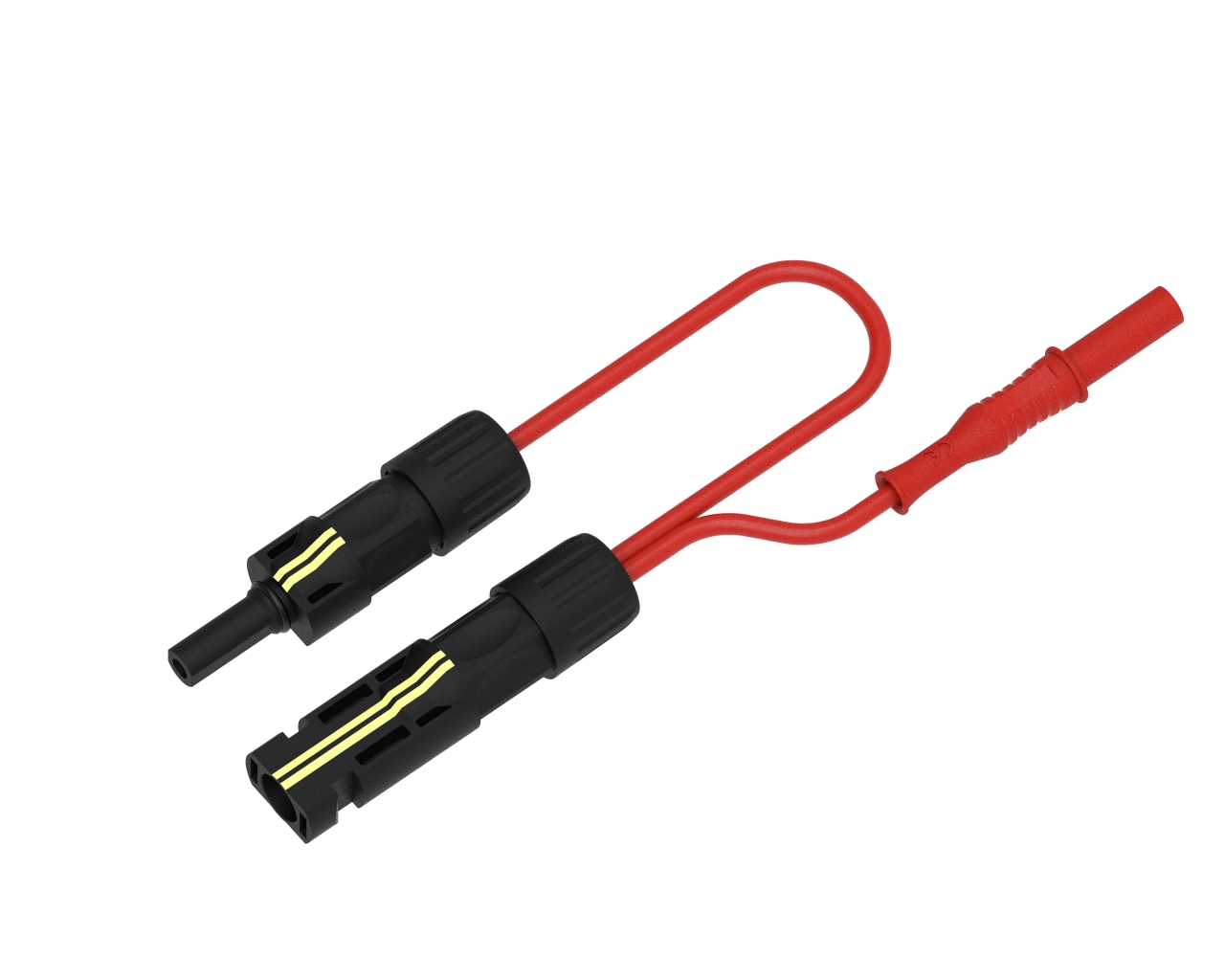

The CT4489 is an MC4 male to MC4 female extension with 4 mm sheathed banana plug breakout leads. The breakout feature provides a safe and reliable method of measuring the operating voltage (Vop) and operating current (Iop) of solar panels. With Cal Test’s new breakout leads, the user can easily insert a measurement instrument between photovoltaic modules. The double insulated PVC wire is both flexible and durable to enhance user convenience.

Obtain a convenient measurement solution by using the CT4489 leads along with the CT4488 leads (MC4 Jack breakout to MC4 Plug and 4 mm Plug). The CT4489 comes standard with red test lead wire, and the CT4488 comes standard with black test lead wire for easy identification.

These new leads can be used with the CT4491, MC4 extension lead, whenever additional lead length is required.

Available individually, as a pair, or in a kit.

Features:

• IEC 61010-031 Safety rated
• MC4 Male breakout connection (MC4 Female / 4 mm sheathed plug)
• Double insulated PVC wire
• Contact material: BeCu, AuNi plated
• CE Mark
• RoHS 2 Compliant
