CT4491-100-2
CT4491 Series

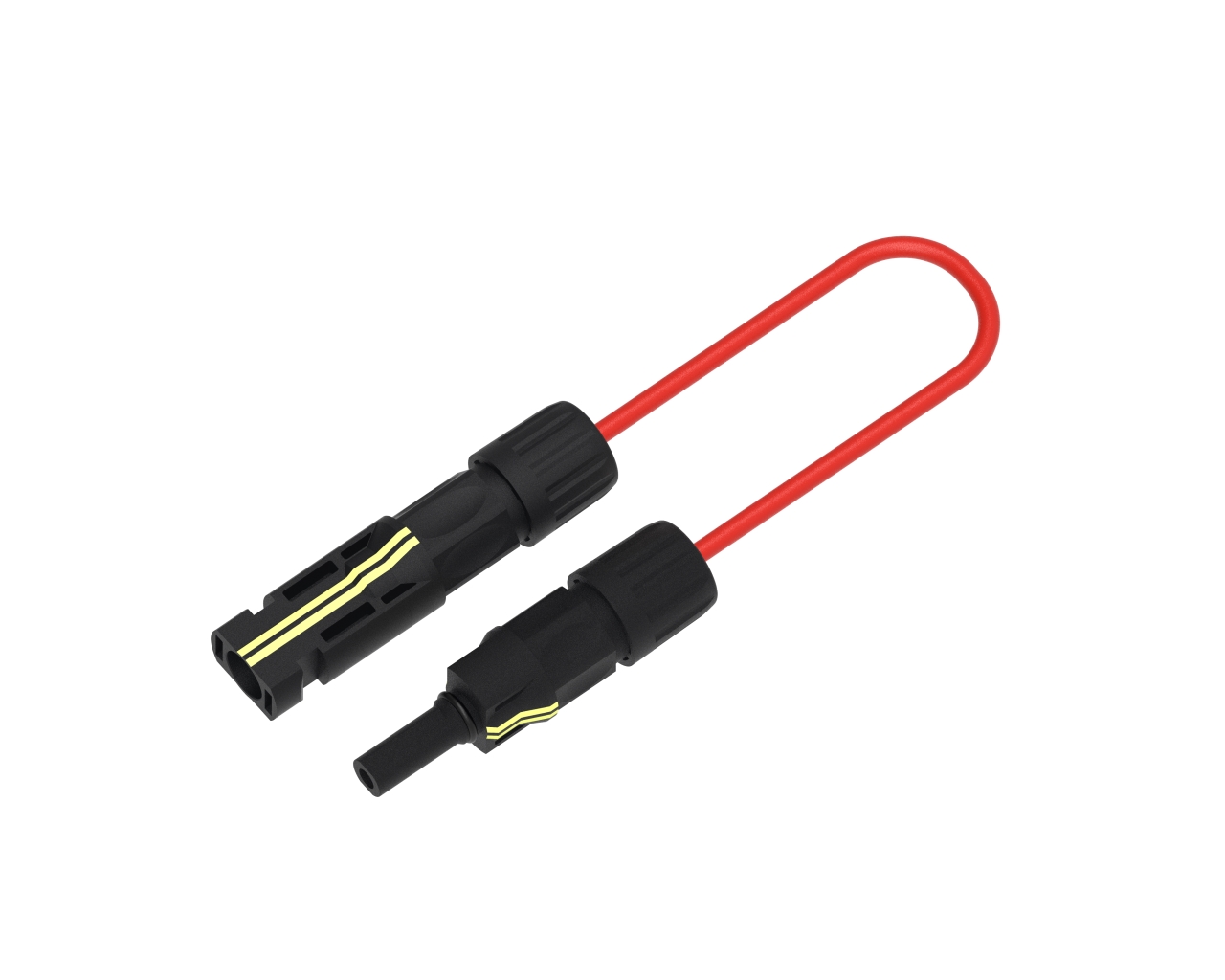

Special OrderPhotovoltaic Test Lead Extension, MC4 Male to MC4 Female
PV Male (MC4) to PV Female (MC4) Test Lead Extension
$68.001 Year Warranty
Where to Buy
Select Variant
Length
Overview
The CT4491 is an MC4 male to MC4 female test lead. Designed as an extension, it will provide added test lead length whenever it is required. The double insulated PVC wire is both fl exible and durable for ease of use. When uthilizing this extension lead, the user will have added fl exibility in obtaining a more desirable test set up connection. The CT4491 is intended to be used with Cal Test’s photovoltaic line of test leads to provide a safe, convenient, and reliable test measurement connection.
Available individually, or in a kit.
Features:
- IEC 61010-031 Safety rated
- MC4 Male to MC4 female connection
- Double insulated PVC wire
- Contact material: AuNi plated
- CE Mark
- RoHS 2 Compliant
Specifications
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
