CT4501-2
CT4501 Series
Active CatalogPhotovoltaic Alligator Clips

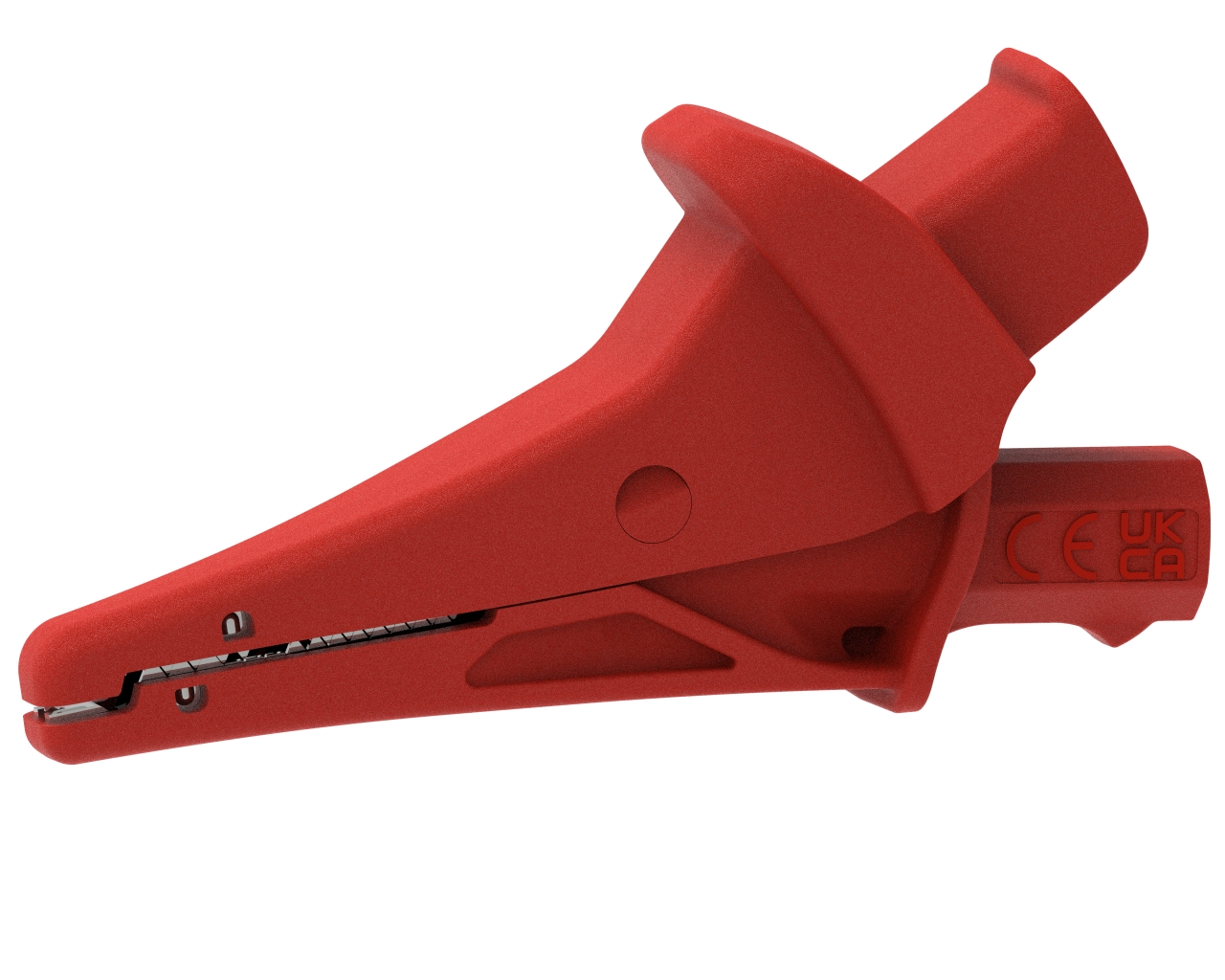

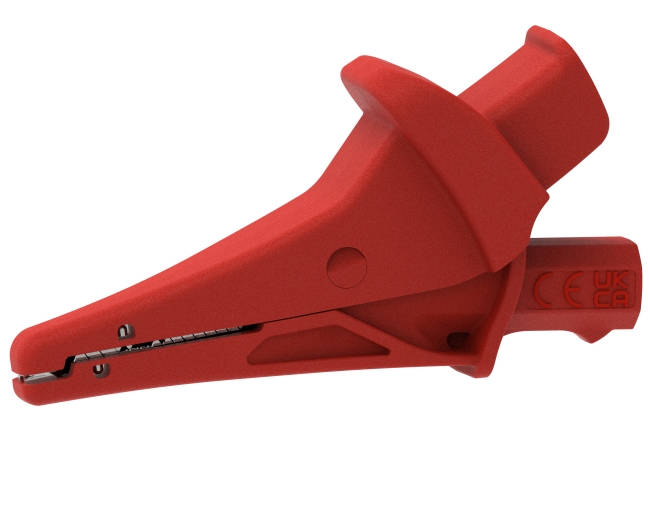

Photovoltaic Alligator Clip, 1500V CATIII/1000V CATIV, Red
Where to Buy
Overview
Cal Test Electronics introduces its new alligator clip rated to 1,500 V in CAT III and 1000 V in CAT IV, per IEC 61010-031 safety standards. This added safety allows the CT4501 to respond to the hazards related to photovoltaic infrastructures with 1500 V CAT III direct-current circuits. The CT4501 is the perfect choice for professionals working with photovoltaic panels and other high voltage environments, making it the ideal solution for your needs.
Make effortless connections with the alligator clip that readily accepts standard, retractile sheath, and fixed sheath 4 mm banana plugs.
The CT4501 is available in 8 vibrant colors: choose from Red, Blue, Black, Green, Brown, Grey, Yellow, and White.
In keeping with Cal Test Electronics’ tradition of meeting the highest global and environmental standards, the CT4501 is CE, UKCA, and RoHS 2 compliant. Our confidence in the enduring performance and quality of the CT4501 is reinforced by Cal Test Electronics’ standard one-year warranty. Upgrade to the CT4501 today and experience a higher level of safety and performance!
Features:
- IEC 61010-031 safety rated
- Higher rated working voltage: 1500 V CAT III / 1000 V CAT IV
- Reinforced insulation
- Compatible with both sheathed and standard 4 mm banana plugs
- Available in 8 colors
- CE & UKCA compliant
- RoHS 2 Compliant
- One-year warranty
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4501-0 | Photovoltaic Alligator Clip, 1500V CATIII/1000V CATIV, Black | $10.00 | Active Catalog | 1 Year | Photovoltaic | Black | 1,500 V CAT III / 1,000 V CAT IV | 20 A | EA |
 |
CT4501-1 | Photovoltaic Alligator Clip, 1500V CATIII/1000V CATIV, Brown | $10.00 | Special Order | 1 Year | Photovoltaic | Brown | 1,500 V CAT III / 1,000 V CAT IV | 20 A | EA |
 |
CT4501-2 | Photovoltaic Alligator Clip, 1500V CATIII/1000V CATIV, Red | $10.00 | Active Catalog | 1 Year | Photovoltaic | Red | 1,500 V CAT III / 1,000 V CAT IV | 20 A | EA |
 |
CT4501-4 | Photovoltaic Alligator Clip, 1500V CATIII/1000V CATIV,Yellow | $10.00 | Active Catalog | 1 Year | Photovoltaic | Yellow | 1,500 V CAT III / 1,000 V CAT IV | 20 A | EA |
 |
CT4501-5 | Photovoltaic Alligator Clip, 1500V CATIII/1000V CATIV, Green | $10.00 | Active Catalog | 1 Year | Photovoltaic | Green | 1,500 V CAT III / 1,000 V CAT IV | 20 A | EA |
 |
CT4501-6 | Photovoltaic Alligator Clip, 1500V CATIII/1000V CATIV, Blue | $10.00 | Active Catalog | 1 Year | Photovoltaic | Blue | 1,500 V CAT III / 1,000 V CAT IV | 20 A | EA |
 |
CT4501-8 | Photovoltaic Alligator Clip, 1500V CATIII/1000V CATIV, Grey | $10.00 | Special Order | 1 Year | Photovoltaic | Grey | 1,500 V CAT III / 1,000 V CAT IV | 20 A | EA |
 |
CT4501-9 | Photovoltaic Alligator Clip, 1500V CATIII/1000V CATIV, White | Discontinued | 1 Year | Photovoltaic | White | 1,500 V CAT III / 1,000 V CAT IV | 20 A | EA | |
 |
CT4502 | Photovoltaic Alligator Clips, 1500V CATIII/1000V CATIV, B/R | $20.00 | Active Catalog | 1 Year | Photovoltaic | Black/Red | 1,500 V CAT III / 1,000 V CAT IV | 20 A | EA |
Specifications
- Type
- Photovoltaic
- Color
- Red
- Rated Voltage
- 1,500 V CAT III / 1,000 V CAT IV
- Max Current
- 20 A
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
