CT4488-30-100-0

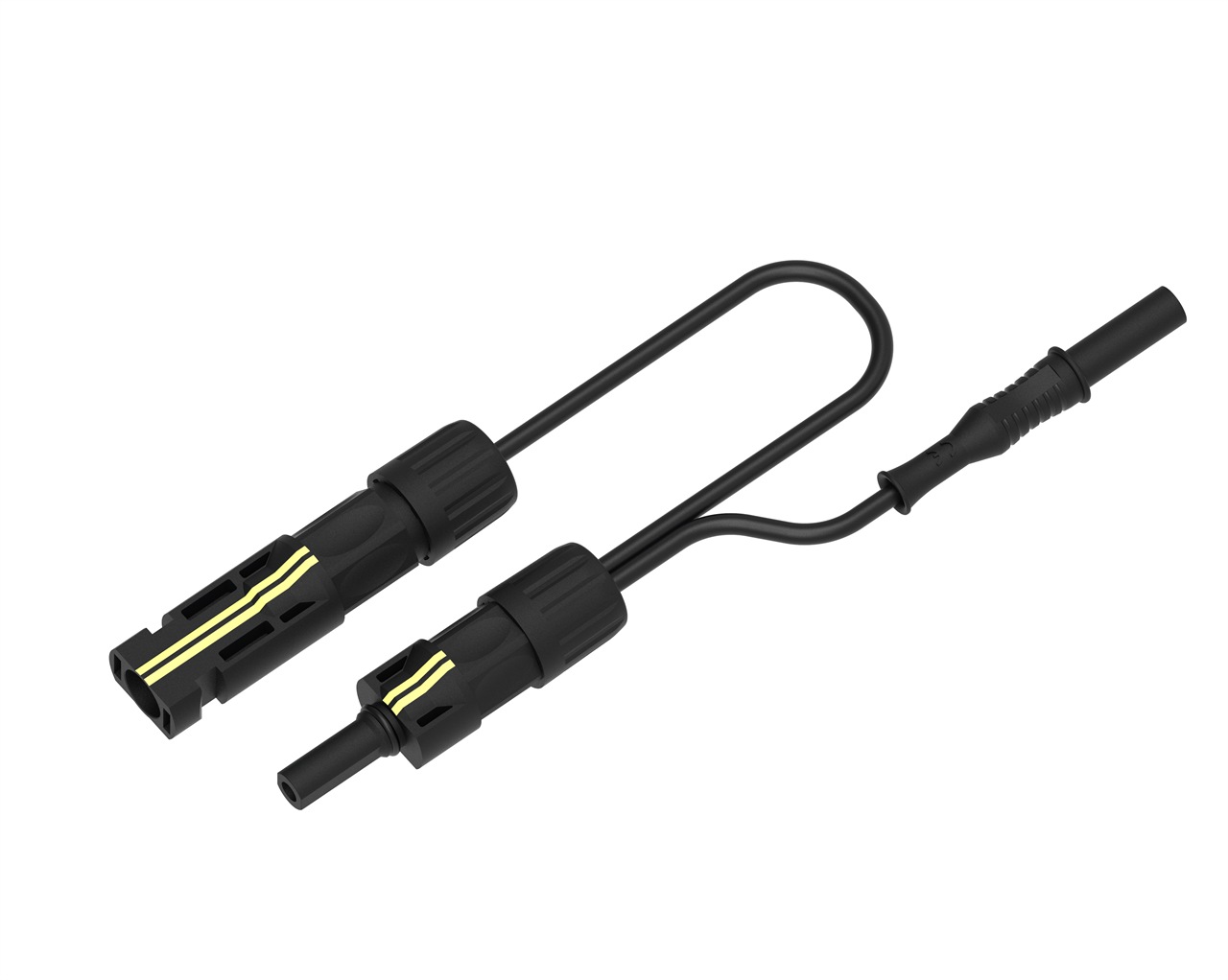

The CT4488 is an MC4 female to MC4 male extension with a 4 mm sheathed banana plug breakout leads. The breakout feature provides a safe and reliable method of measuring the operating voltage (Vop) and operating current (Iop) of solar panels. With Cal Test’s new breakout leads, the user can easily insert a measurement instrument between photovoltaic modules. The double insulated PVC wire is both flexible and durable to enhance user convenience.

Obtain a convenient measurement solution by using the CT4488 leads along with the CT4489 leads (MC4 Plug breakout to MC4 Jack and 4 mm Plug). The CT4488 comes standard with black test lead wire, and the CT4489 comes standard with red test lead wire for easy identification.

These new leads can be used with the CT4491, MC4 extension lead, whenever additional lead length is required.

Available individually, as a pair, or in a kit.

Features:

• IEC 61010-031 Safety rated
• MC4 Female breakout connection (MC4 male / 4 mm sheathed plug)
• Double insulated PVC wire
• Contact material: BeCu, AuNi plated
• CE Mark
• RoHS 2 Compliant
