CT2942-100
CT2942 Series

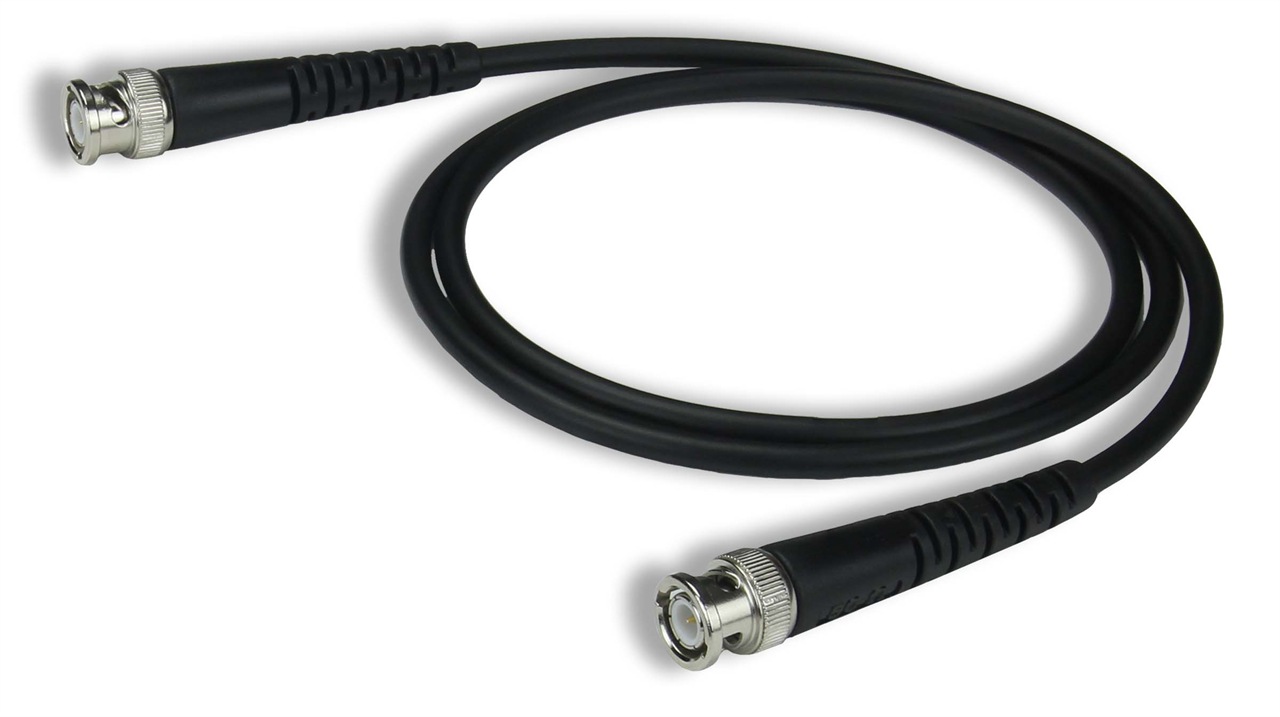

Active CatalogBNC Male to BNC Male Cable
BNC (m) Cable Assembly - RG-58C/U, 100cm, Blk
$9.201 Year Warranty
Where to Buy
Overview
High Quality BNC male to male coaxial cable assembly. Molded bend relief boot.
- 50 Ohm
- Available in 7 lengths
Models
| Image | Model | Description | MSRP | Status | Warranty | Cable Type | Length | Impedance | Bandwidth | VSWR | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2942-100 | BNC (m) Cable Assembly - RG-58C/U, 100cm, Blk | $9.20 | Active Catalog | 1 Year | RG-58C/U | 100 cm | 50 Ω | DC to 1 Ghz | 1.2:1 - DC to 400 MHz 1.65:1 - 400 MHz to 1 GHz | EA |
 |
CT2942-120 | BNC (m) Cable Assembly - RG-58C/U, 120cm, Black | $9.70 | Active Catalog | 1 Year | RG-58C/U | 120 cm | 50 Ω | DC to 1 Ghz | 1.2:1 - DC to 400 MHz 1.65:1 - 400 MHz to 1 GHz | EA |
 |
CT2942-150 | BNC (m) Cable Assembly - RG-58C/U, 150cm, Blk | $10.40 | Active Catalog | 1 Year | RG-58C/U | 150 cm | 50 Ω | DC to 1 Ghz | 1.2:1 - DC to 400 MHz 1.65:1 - 400 MHz to 1 GHz | EA |
 |
CT2942-200 | BNC (m) Cable Assembly - RG-58C/U, 200cm, Blk | $12.00 | Active Catalog | 1 Year | RG-58C/U | 200 cm | 50 Ω | DC to 1 Ghz | 1.2:1 - DC to 400 MHz 1.65:1 - 400 MHz to 1 GHz | EA |
 |
CT2942-25 | BNC (m) Cable Assembly - RG-58C/U, 25cm, Black | $9.00 | Active Catalog | 1 Year | RG-58C/U | 25 cm | 50 Ω | DC to 1 Ghz | 1.2:1 - DC to 400 MHz 1.65:1 - 400 MHz to 1 GHz | EA |
 |
CT2942-250 | BNC (m) Cable Assembly - RG-58C/U, 250cm, Black | $13.00 | Active Catalog | 1 Year | RG-58C/U | 250 cm | 50 Ω | DC to 1 Ghz | 1.2:1 - DC to 400 MHz 1.65:1 - 400 MHz to 1 GHz | EA |
 |
CT2942-50 | BNC (m) Cable Assembly - RG-58C/U, 50cm, Black | $8.60 | Active Catalog | 1 Year | RG-58C/U | 50 cm | 50 Ω | DC to 1 Ghz | 1.2:1 - DC to 400 MHz 1.65:1 - 400 MHz to 1 GHz | EA |
Specifications
- Cable Type
- RG-58C/U
- Length
- 100 cm
- Impedance
- 50 Ω
- Bandwidth
- DC to 1 Ghz
- VSWR
- 1.2:1 - DC to 400 MHz 1.65:1 - 400 MHz to 1 GHz
- Connector Grade
- General Purpose
- Insertion Loss
- 0.9 dB/m @ 1 GHz
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 70 days
- See More Specifications
- Product Drawing
