Overview
This kit provides the basic components to connect your oscilloscope with other test instruments or circuits under test. Cost effective replacements for original scope manufactures accessories.

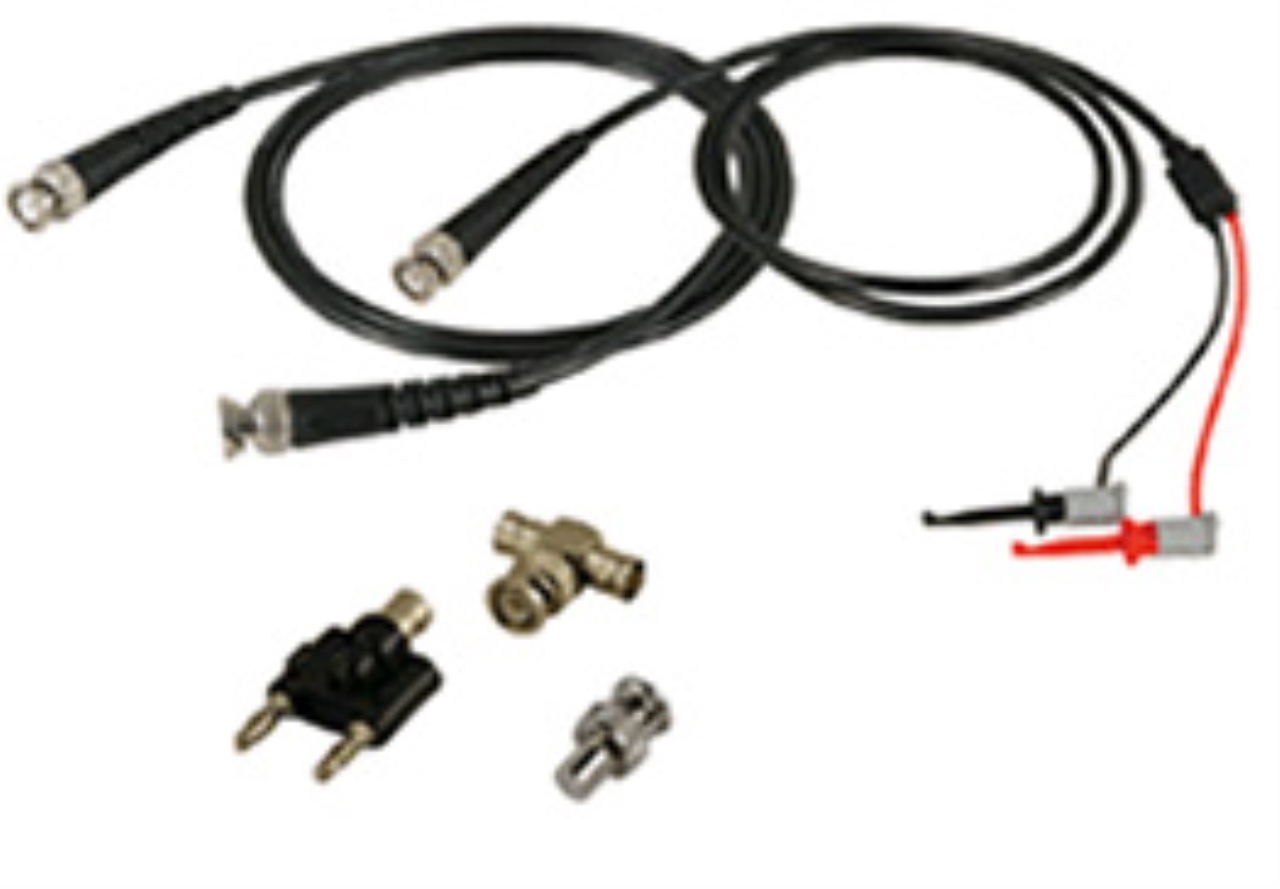

Kit Contains:
-(1) Coax Adapter female-male-female tee
-(1) BNC female Adapter-4mm Bplugs: Black
-(1) BNC male Cable Assembly-RG-58 C/V, 100 cm (40"): Black
-(1) BNC male terminator 50 Ω ±1%
-(1) Cable, BNC-miniP Clips-50 Ω, 100 cm (40"): Black
Kit Contents
- (1) Clamshell Blister, 170x105x20mm, Scope Probes - 450764-001
- (1) Coax Adapter - BNC (f-m-f) Tee, 4 GHz - CT2411
- (1) BNC(f) Adapter - 4mm BPlugs, Black - CT2939
- (1) BNC (m) Cable Assembly - RG-58C/U, 100cm, Blk - CT2942-100
- (1) Cable, BNC - MiniPro Clips - 50ohm, 100cm, Black - CT3230-100
- (1) TERMINATOR, BNC MALE, 50Ohm, 6GHz, 1W - CT4522-50
Specifications
- Type
- Oscilloscope Adapter
- Kit Application
- Basic
- Recommended User
- Technician
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- USA
- Lead Time
- 84 days
- See More Specifications
- Datasheet
