Overview
The Engineer level function generator kit provides all the necessary cables and adapters to effectively begin using your instrument. These standard interconnects will work with the majority of function and arbitrary waveform generators.

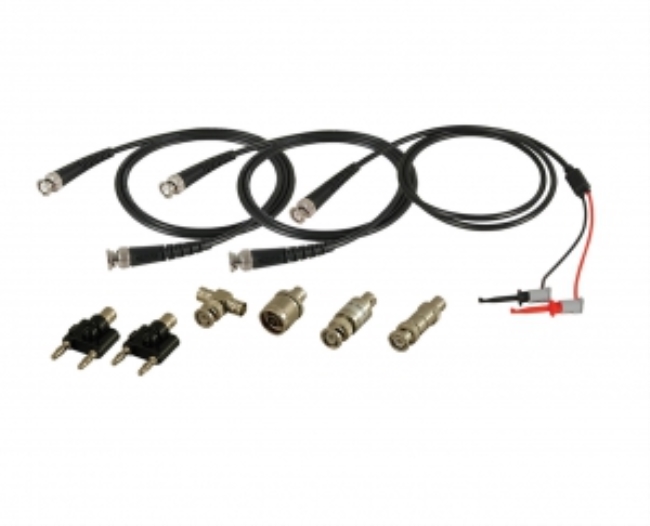

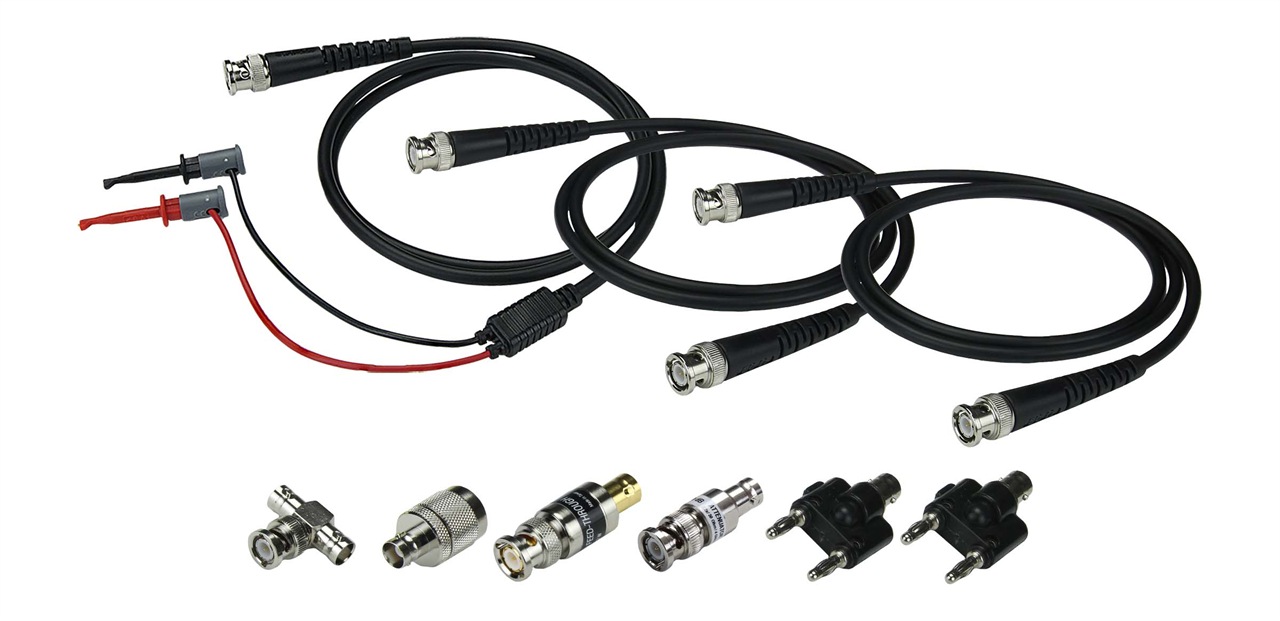

Kit Contains:
(1) BNC female-male-female Tee Adapter, 50 Ω
(1) BNC female to N male Adapter, 50 Ω
(2) BNC female to 4mm Banana Plug Adapter
(2) BNC male Cable, RG-58C/U, 50 Ω, 100 cm (40")
(1) BNC 50 Ω Feed-Thru Terminator, male-female, 2W
(1) BNC 50 Ω 20 dB Attenuator male-female, 4 GHz, 2 W
(1) BNC male to IC Clips Cable, RG-58C/U, 50 Ω, 100 cm (40")
(1) BNC female-male-female Tee Adapter, 50 Ω
(1) BNC female to N male Adapter, 50 Ω
(2) BNC female to 4mm Banana Plug Adapter
(2) BNC male Cable, RG-58C/U, 50 Ω, 100 cm (40")
(1) BNC 50 Ω Feed-Thru Terminator, male-female, 2W
(1) BNC 50 Ω 20 dB Attenuator male-female, 4 GHz, 2 W
(1) BNC male to IC Clips Cable, RG-58C/U, 50 Ω, 100 cm (40")
Kit Contents
- (1) Clamshell Blister, 170x105x20mm, Scope Probes - 450764-001
- (1) Coax Adapter - BNC (f-m-f) Tee, 4 GHz - CT2411
- (1) Coax Adapter - BNC(f) - N(m), 50 Ohm, 4GHz - CT2762
- (2) BNC(f) Adapter - 4mm BPlugs, Black - CT2939
- (2) BNC (m) Cable Assembly - RG-58C/U, 100cm, Blk - CT2942-100
- (1) BNC Feed-Thru Terminator - (m-f) 1 GHz, 2 W, 50 Ohm - CT2944C-50
- (1) Cable, BNC - MiniPro Clips - 50ohm, 100cm, Black - CT3230-100
- (1) BNC Attenuator, m-f, 50ohm, 20dB (10x) 4GHz 2W ND - CT3369A-20
Specifications
- Type
- Function Generator (Frequency Counter)
- Kit Application
- General Purpose
- Recommended User
- Engineer
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- USA
- Lead Time
- 84 days
