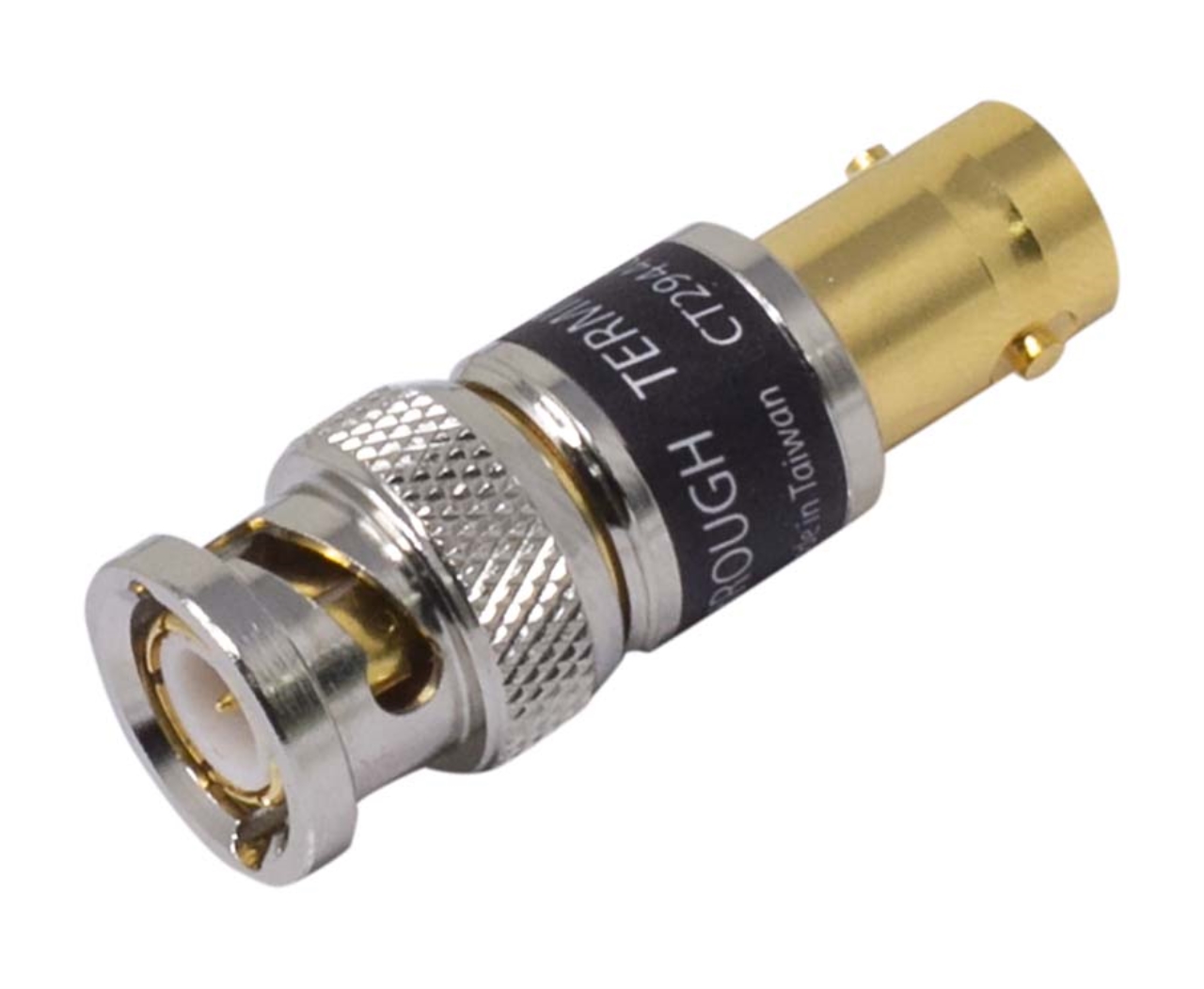

CT2944C-50
CT2944C Series
Active CatalogCoaxial Terminator
BNC Feed-Thru Terminator - (m-f) 1 GHz, 2 W, 50 Ohm
$46.001 Year Warranty
Overview
CT2944C: BNC Feed-Thru Terminator, male to female. Matches higher impedance devices to input impedance of the test equipment. Ideal, for example, in matching a probe with a 50 Ω output impedance to an oscilloscope with a 1 MΩ input impedance.
- BNC male to female
- Frequency: DC to 1
- Gold plated center contacts
* The replacement to the CT2944-50.
Specifications
- Type
- Adapter, Jack to Plug
- Connector Grade
- General Purpose
- Average Power
- 2 W
- Frequency Range
- DC to 1 GHz
- Impedance
- 50 Ω
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 70 days
- See More Specifications
- Product Drawing
