CT4121
CT4121 Series
DiscontinuedActive FET Probe Kit 1.2 GHz, 10x, ±40 V
Active FET Probe Kit, 1.2 GHz, 10x, Cal Test
1 Year Warranty
Where to Buy
Checking distributor stock…
Overview
The CT4121 is a compact FET probe with very high input resistance and low input capacitance. With a 1.2 GHz bandwidth, this probe is ideal for timing analysis or troubleshooting high speed logic circuits, for design verification of disk drives, as well as for wireless and data communication design. The CT4121 can measure up to ±40 V (DC + AC peak). Compatible with oscilloscopes from all major manufacturers, the probe is powered by the included 9 V battery or direct from the oscilloscope using the included USB power lead.
Features:
- 1.2 GHz bandwidth (-3 dB)
- Up to ±40 V (DC + AC peak)
- Attenuation 10x
- High accuracy (±2%)
- Power indicator LED
- SMD accessory kit

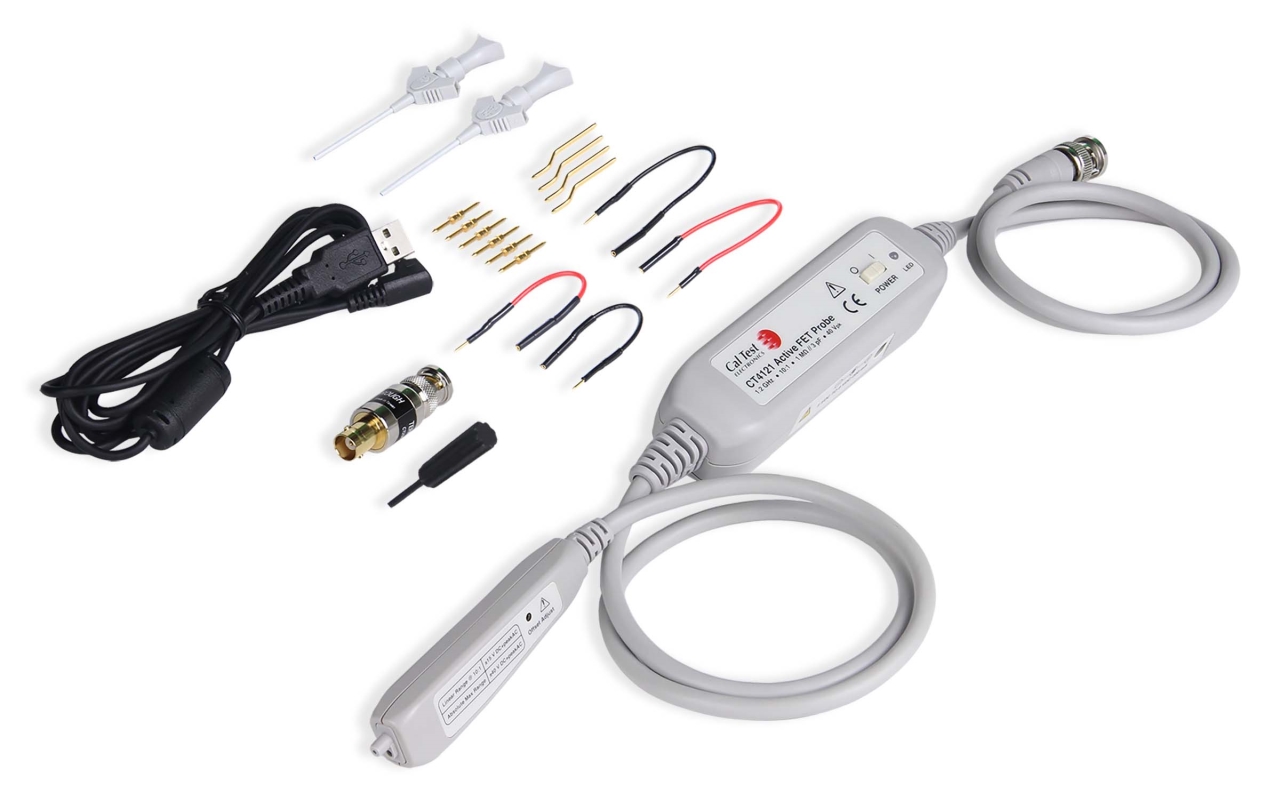

Kit Contents
- (1) BNC Feed-Thru Terminator - (m-f) 1 GHz, 2 W, 50 Ohm - CT2944C-50
- (2) SMD Test Clip, Grey - CT3659-8
Specifications
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Country of Origin
- Taiwan
- Lead Time
- 84 days
