Product resources
CT2762
CT2762 Series
Active CatalogBNC female to N male, General Purpose
Coax Adapter - BNC(f) - N(m), 50 Ohm, 4GHz
$9.651 Year Warranty
Overview

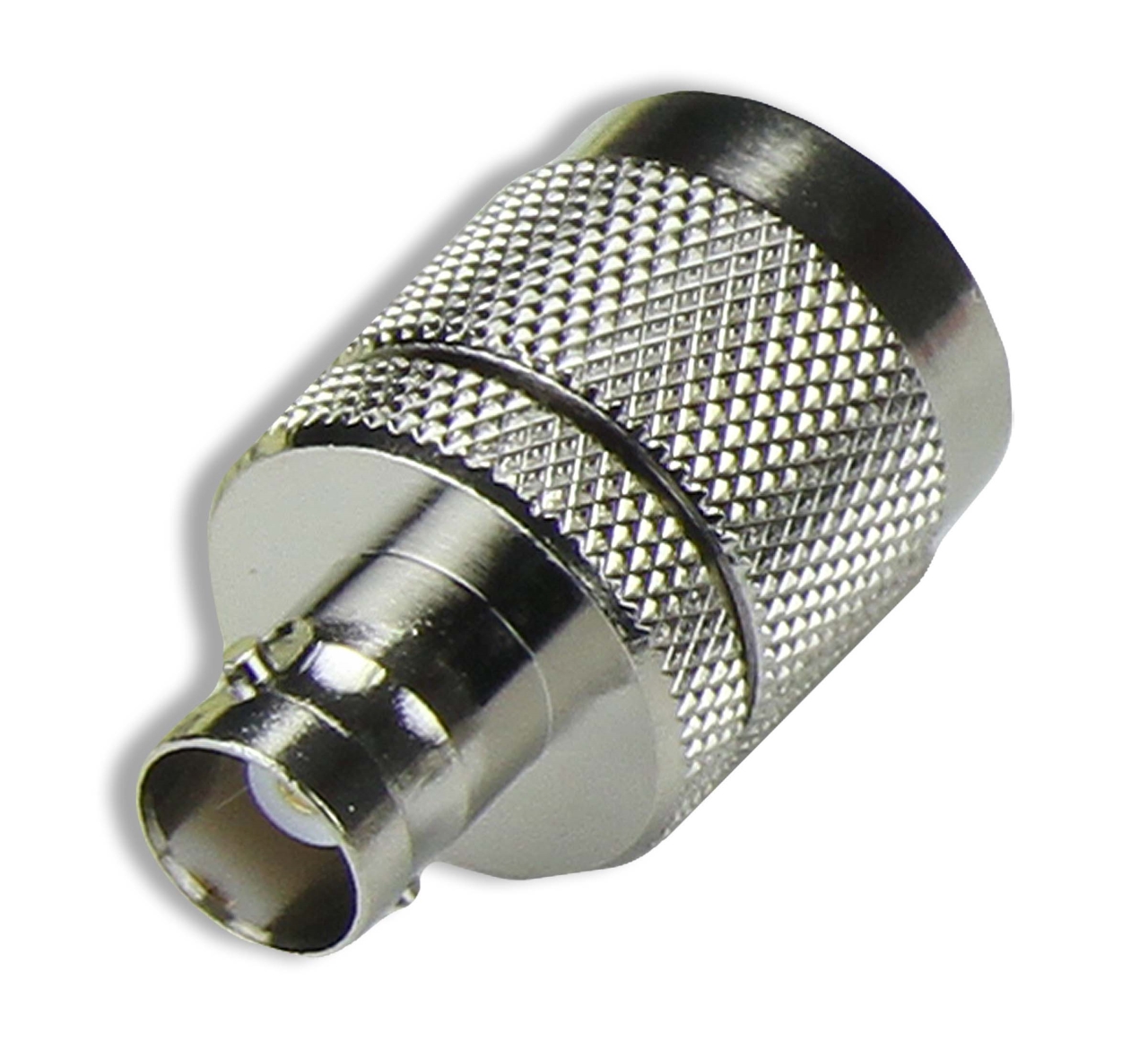

BNC female to N Type male, 50 Ω General Purpose between-series coax adapter.
- General Purpose
- Body: Brass, Nickel Plated
- Contact: Brass and BeCu, Gold Plated
Specifications
- Connector Grade
- General Purpose
- Frequency Range
- DC to 4 GHz
- Impedance
- 50 Ohms
- VSWR
- 1.30:1 - DC to 4 GHz
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 30 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
