Overview

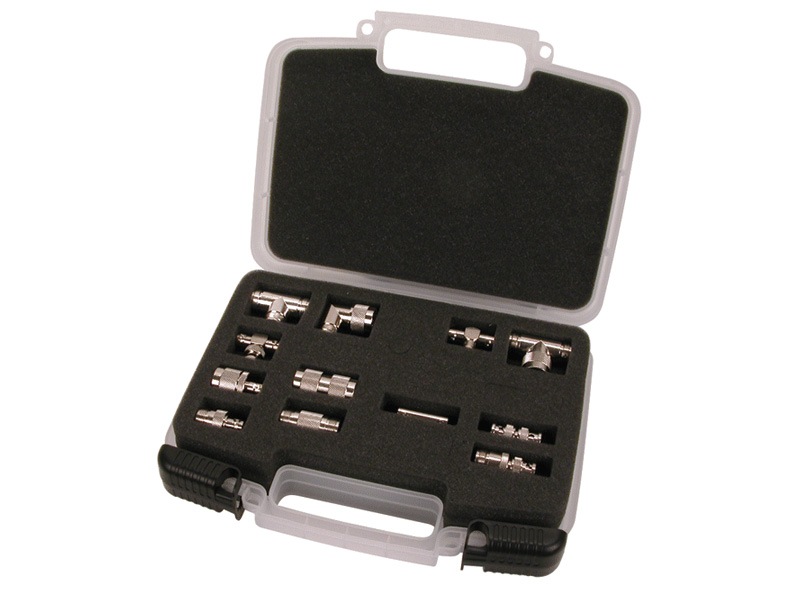

Convenient twelve (12) piece BNC and N type, in-series and between-series 50 Ω adapter kit.
- BNC & N type coaxial adapters - in-series and between series
- Gold plated center contacts
- Foam-lined storage case
Kit Includes:
(1) BNC female-male-female Tee in-series Adapter, 50 Ω
(1) N type female to N type female in-series Adapter, 50 Ω
(1) N type male to N type male in-series Adapter, 50 Ω
(1) N type female-male-female Tee in-series Adapter, 50 Ω
(1) N type female-female-female Tee in-series Adapter, 50 Ω
(1) BNC female to N type male between-series Adapter, 50 Ω
(1) BNC male to N type female between-series Adapter, 50 Ω
(1) BNC female-female in-series Adapter, 50 Ω
(1) BNC male-male in-series Adapter, 50 Ω
(1) BNC female-N female between-series Adapter, 50 Ω
(1) BNC female-female-female Tee in-series Adapter, 50 Ω
(1) N type male-female Right-Angle in-series Adapter, 50 Ω
(1) BNC female-male-female Tee in-series Adapter, 50 Ω
(1) N type female to N type female in-series Adapter, 50 Ω
(1) N type male to N type male in-series Adapter, 50 Ω
(1) N type female-male-female Tee in-series Adapter, 50 Ω
(1) N type female-female-female Tee in-series Adapter, 50 Ω
(1) BNC female to N type male between-series Adapter, 50 Ω
(1) BNC male to N type female between-series Adapter, 50 Ω
(1) BNC female-female in-series Adapter, 50 Ω
(1) BNC male-male in-series Adapter, 50 Ω
(1) BNC female-N female between-series Adapter, 50 Ω
(1) BNC female-female-female Tee in-series Adapter, 50 Ω
(1) N type male-female Right-Angle in-series Adapter, 50 Ω
Kit Contents
- (1) Case, 10.5" Black, w/Foam Cutout #1 (Tradesman) - 450705-001
- (1) Label, CT Kit, 1.25" x 3.5" BR&W Polye-2mil/Lex-5mil CT2702A - 450720-001
- (1) Coax Adapter - BNC (f-m-f) Tee, 4 GHz - CT2411
- (1) Coax Adapter - N(f) - N(f), 50 Ohm, 8GHz - CT2758
- (1) Coax Adapter - N(m) - N(m), 50 Ohm, 8GHz - CT2759
- (1) Coax Adapter - N(f-m-f) Tee, 50 Ohm, 8GHz - CT2760
- (1) Coax Adapter- N Tee (f-f-f), 50ohm, Gen Pur, 8GHz - CT2761
- (1) Coax Adapter - BNC(f) - N(m), 50 Ohm, 4GHz - CT2762
- (1) Coax Adapter - BNC(m) - N(f), 50 Ohm, 4 GHz - CT2763
- (1) Coax Adapter - BNC(f) - (f), 50 Ohm, 4 GHz - CT2765
- (1) Coax Adapter - BNC(m) - (m), 50 Ohm , 4 GHz - CT2766
- (1) Coax Adapter - BNC(f) - N(f), 50 Ohm, 4 GHz - CT2771
- (1) BNC tee f-f-f Adapter, 50ohm, Gen Pur G, 4 GHz - CT3312
- (1) N m-f Right-Angle Adapter, 50ohm, Gen Pur Grade, 8GHz - CT3388
Specifications
- Connector Grade
- General Purpose
- Frequency Range
- DC to 8 GHz
- Impedance
- 50 Ohms
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Datasheet
