CT2766
CT2766 Series

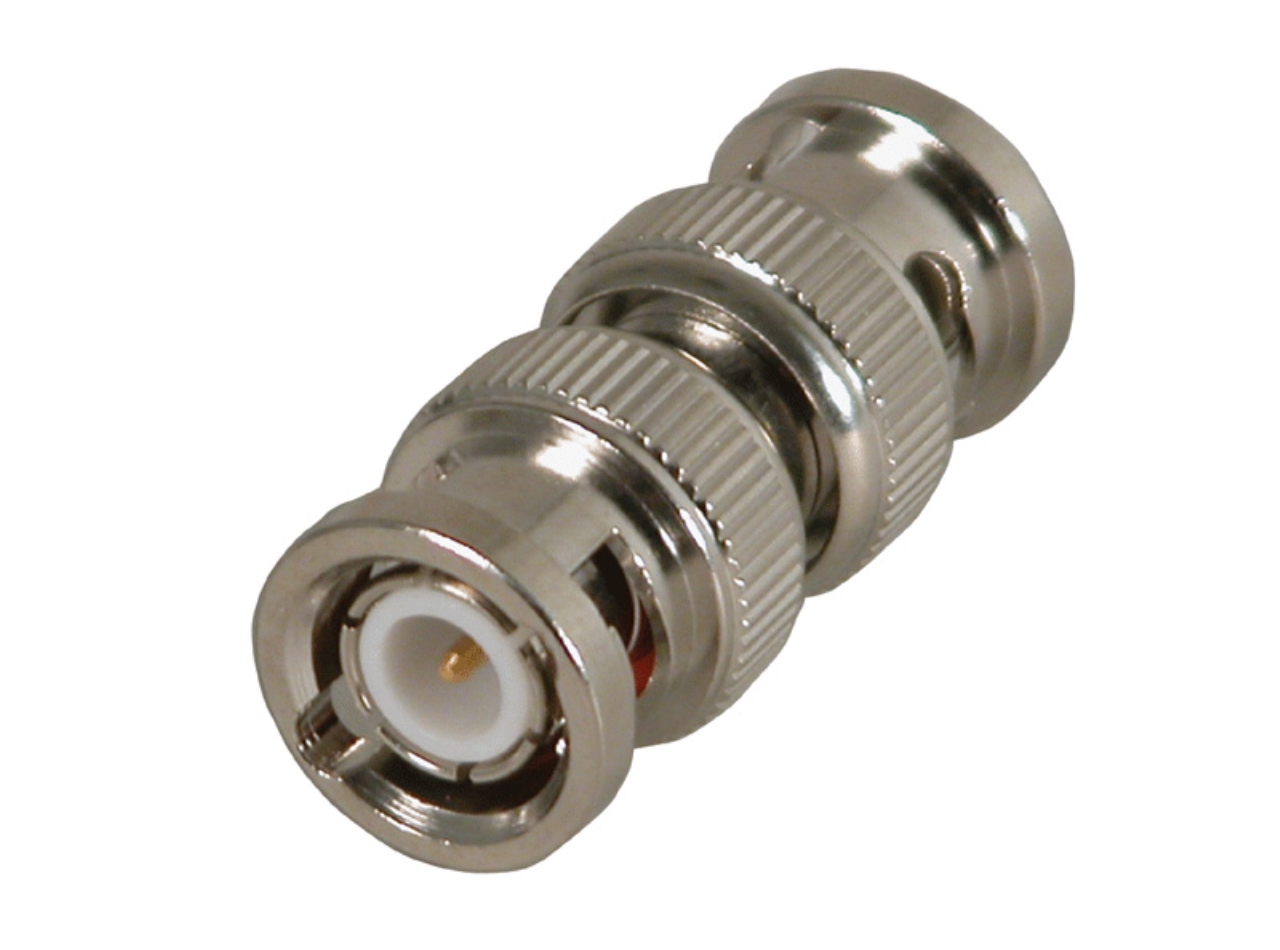

Active CatalogBNC, male to male, General Purpose
Coax Adapter - BNC(m) - (m), 50 Ohm , 4 GHz
$3.951 Year Warranty
Overview
General Purpose BNC barrel, male to male, in-series coax adapter. A very popular coaxial adapter.
- General Purpose
- Body: Brass, Nickel Plated
- Contact: Brass, Gold Plated
Specifications
- Connector Grade
- General Purpose
- Frequency Range
- DC to 4 GHz
- Impedance
- 50 Ohms
- VSWR
- 1.30:1 - DC to 4 GHz
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 30 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
