CT2763
CT2763 Series
Active CatalogBNC male to N female, General Purpose
Coax Adapter - BNC(m) - N(f), 50 Ohm, 4 GHz
$14.001 Year Warranty
Overview

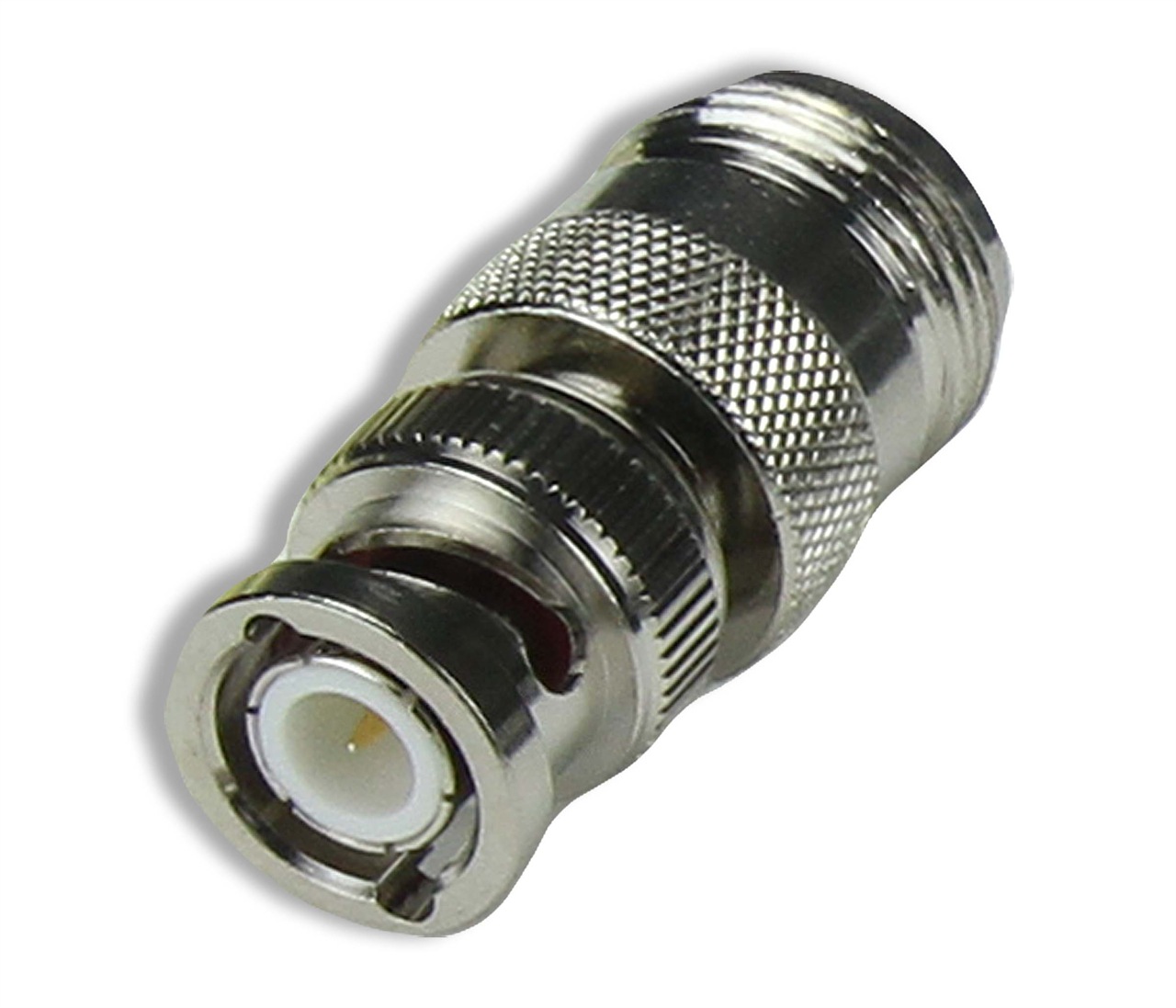

BNC male to N Type female between-series coax adapter.
Turn your instrument's BNC female output into an N Type female connector.
Specifications
- Connector Grade
- General Purpose
- Frequency Range
- DC to 4 GHz
- Impedance
- 50 Ohms
- VSWR
- 1.30:1 - DC to 4 GHz
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 30 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
