Overview

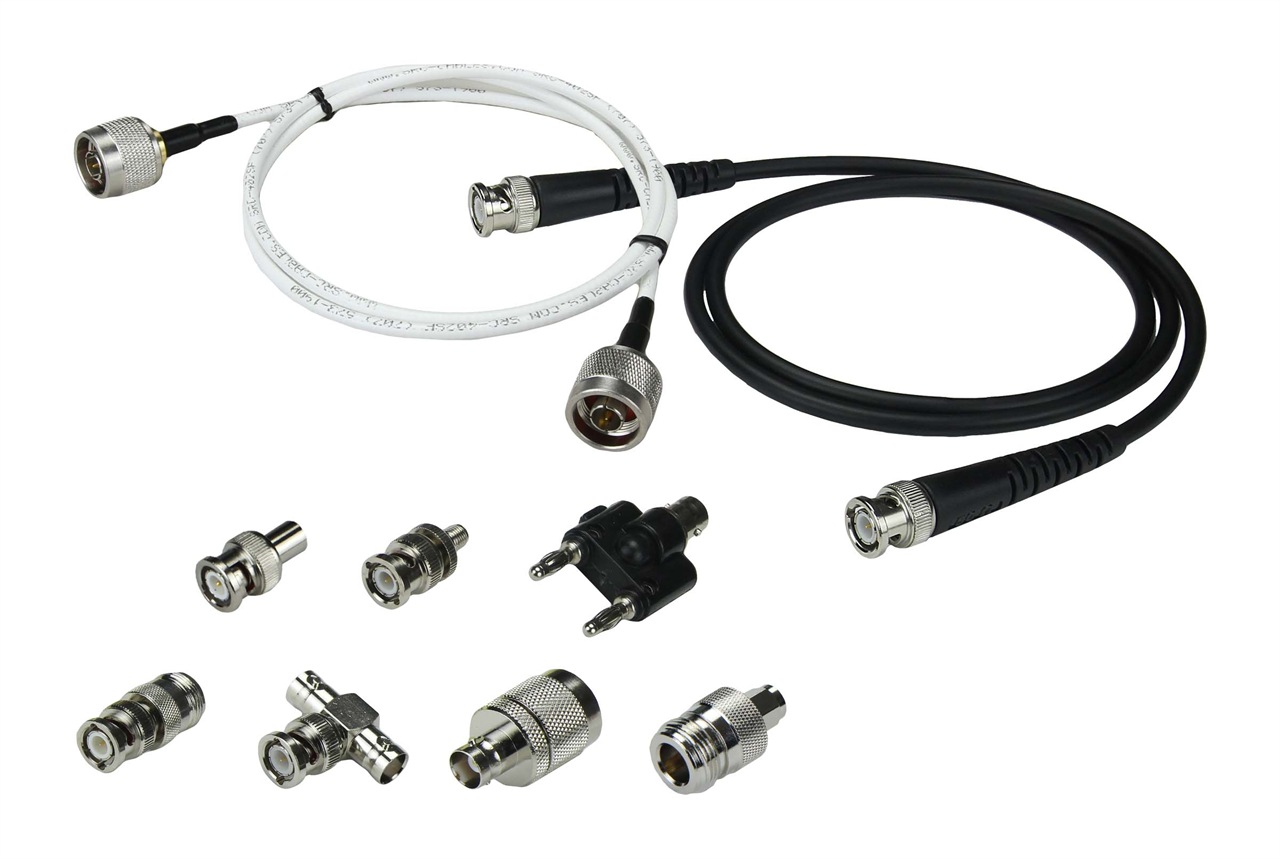

Kit provides an advanced 9 piece selection of coaxial adapters, cables and attenuators for higher performance 9 GHz spectrum analyzers.
Kit Contains:
(1) Coax Adapter female-male-female tee
(1) Coax Adapter- BNC female-N male
(1) Coax Adapter- BNC female-N female
(1) BNC female Adapter-4mm Bplugs: Black
(1) BNC male Cable Assembly-RG-58 C/U, 100 cm (40")
(1) N male to N male, RF cable, 50 Ω, 12.4 GHz 100 cm (40")
(1) BNC male terminator 50 Ω ±1%
(1) N female- SMA male 50 Ω
(1) N male-female attenuator, 50 Ω
Kit Contents
- (1) Clamshell Blister, 170x105x20mm, Scope Probes - 450764-001
- (1) Coax Adapter - BNC (f-m-f) Tee, 4 GHz - CT2411
- (1) Coax Adapter - BNC(f) - N(m), 50 Ohm, 4GHz - CT2762
- (1) Coax Adapter - BNC(m) - N(f), 50 Ohm, 4 GHz - CT2763
- (1) BNC(f) Adapter - 4mm BPlugs, Black - CT2939
- (1) BNC (m) Cable Assembly - RG-58C/U, 100cm, Blk - CT2942-100
- (1) N male to female Attenuator, 50ohm, 10db (3.2x) 12.4GHz 2W - CT3353-10
- (1) N female to SMA male Adapter, 50ohm, Gen Pur Grade, 11GHz - CT3390
- (1) TERMINATOR, BNC MALE, 50Ohm, 6GHz, 1W - CT4522-50
Specifications
- Type
- Spectrum Analyzer
- Kit Application
- Advanced
- Recommended User
- Engineer
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- USA
- Lead Time
- 84 days
- See More Specifications
- Datasheet
