Product resources
CT3353-10
CT3353 Series
Active CatalogCoaxial Attenuator

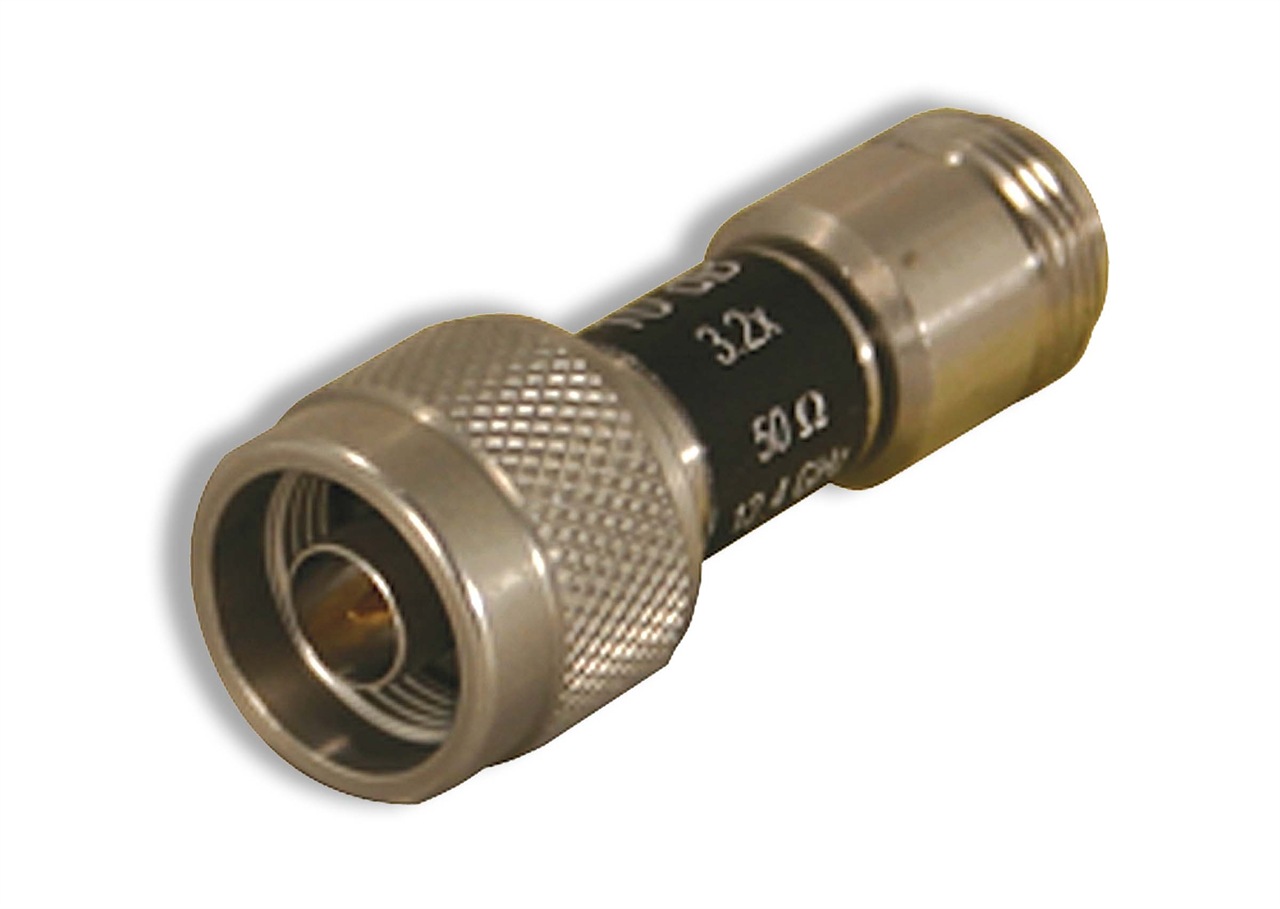

N male to female Attenuator, 50ohm, 10db (3.2x) 12.4GHz 2W
$199.001 Year Warranty
Overview
Precision N Type male to female fixed coaxial attenuator. Useful in a wide variety of applications including impedance matching and level control.
- High quality, rugged construction
- Excellent VSWR
- 2W power level
- Useable to 12.4 GHz
- Passivated Stainless Steel
- Available as 6 attenuator kit CT3417
Specifications
- Type
- BNC
- Attenuation
- 10 dB
- Average Power
- 2 W
- Frequency Range
- DC to 12.4 GHz
- Impedance
- 50 Ω
- Temperature
- 0 to +125° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- USA
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
