CT3388
CT3388 Series
Active CatalogN Right-Angle, male to female, General Purpose
N m-f Right-Angle Adapter, 50ohm, Gen Pur Grade, 8GHz
$16.001 Year Warranty
Overview

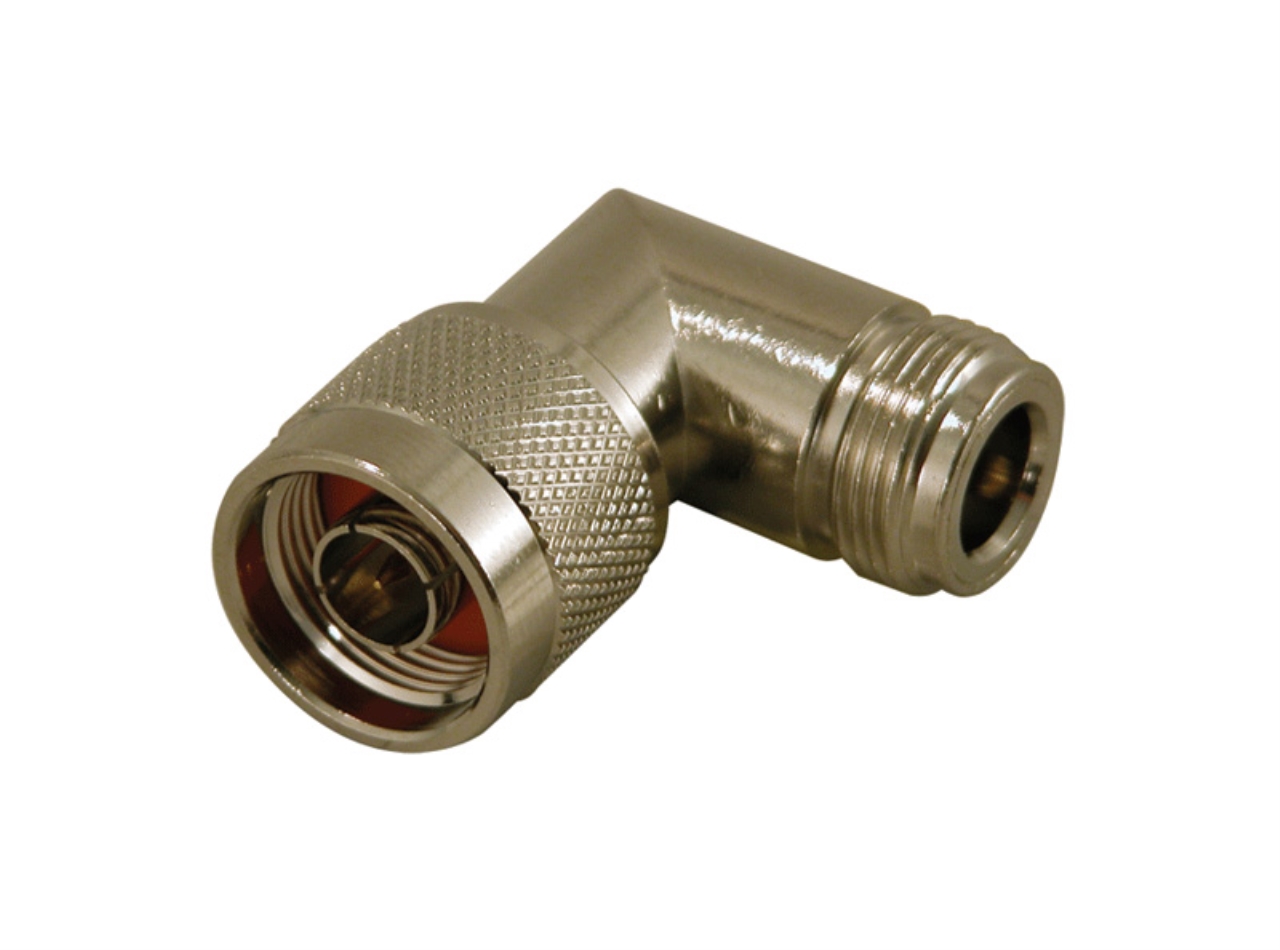

N Type right-angle, male to female, 50 Ω in-series coaxial adapter.
Specifications
- Connector Grade
- General Purpose
- Frequency Range
- DC to 8 GHz (various)
- Impedance
- 50 Ohms
- VSWR
- 1.35:1 - DC to 8 GHz
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 30 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
