Overview
Kit provides an enhanced 10 piece selection of coaxial adapters, cables and attenuators for general purpose use with spectrum analyzers up to 3 GHz.

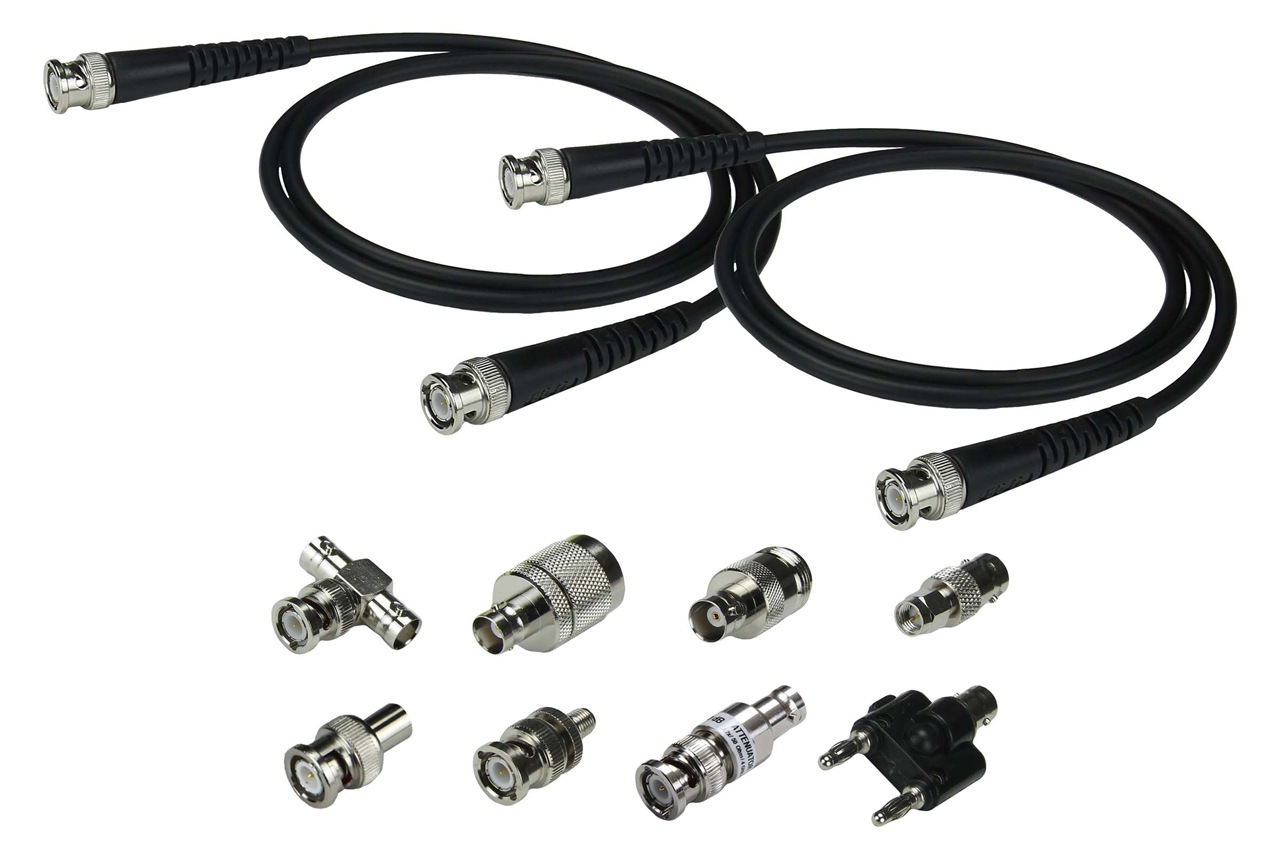

Kit Contains:
(1) BNC female-male-female Tee Adapter, 50 Ω
(1) BNC female to N male Adapter, 50 Ω
(1) BNC female to N female Adapter, 50 Ω
(1) BNC female to 4mm Banana Plug Adapter
(2) BNC male Cable, 50 Ω, RG 58C/U, 100 cm (40")
(1) BNC male to SMA female Adapter, 50 Ω
(1) BNC male Terminator, 50 Ω ±1%
(1) BNC female to SMA male Adapter, 50 Ω
(1) BNC Attenuator, 10 dB, BNC male to female, 50 Ω, 4 GHz, 2 W
Kit Contents
- (1) Clamshell Blister, 170x105x20mm, Scope Probes - 450764-001
- (1) Coax Adapter - BNC (f-m-f) Tee, 4 GHz - CT2411
- (1) Coax Adapter - BNC(f) - N(m), 50 Ohm, 4GHz - CT2762
- (1) Coax Adapter - BNC(f) - N(f), 50 Ohm, 4 GHz - CT2771
- (1) BNC(f) Adapter - 4mm BPlugs, Black - CT2939
- (2) BNC (m) Cable Assembly - RG-58C/U, 100cm, Blk - CT2942-100
- (1) BNC male to SMA female Adapter, 50ohm, Gen Pur Grade, 4GHz - CT3328
- (1) BNC Attenuator, m-f, 50ohm, 10dB (3.2x) 4GHz 2W ND - CT3369A-10
- (1) BNC female to SMA male Adapter, 50ohm, Gen Pur Grade, 4GHz - CT3387
- (1) TERMINATOR, BNC MALE, 50Ohm, 6GHz, 1W - CT4522-50
Specifications
- Type
- Spectrum Analyzer
- Kit Application
- General Purpose
- Recommended User
- Senior Technician
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- USA
- Lead Time
- 84 days
- See More Specifications
- Datasheet
