CT3983B-120
CT3983B Series
Special OrderProbe w/Locking Cap, Shth Plug Leads, w/Access, UL, 120cm, B/R Pair
Probe w/Lock Cap,ShthPlugLeads,w/Access,UL, 120cm, B/R Pair
$88.001 Year Warranty
Overview

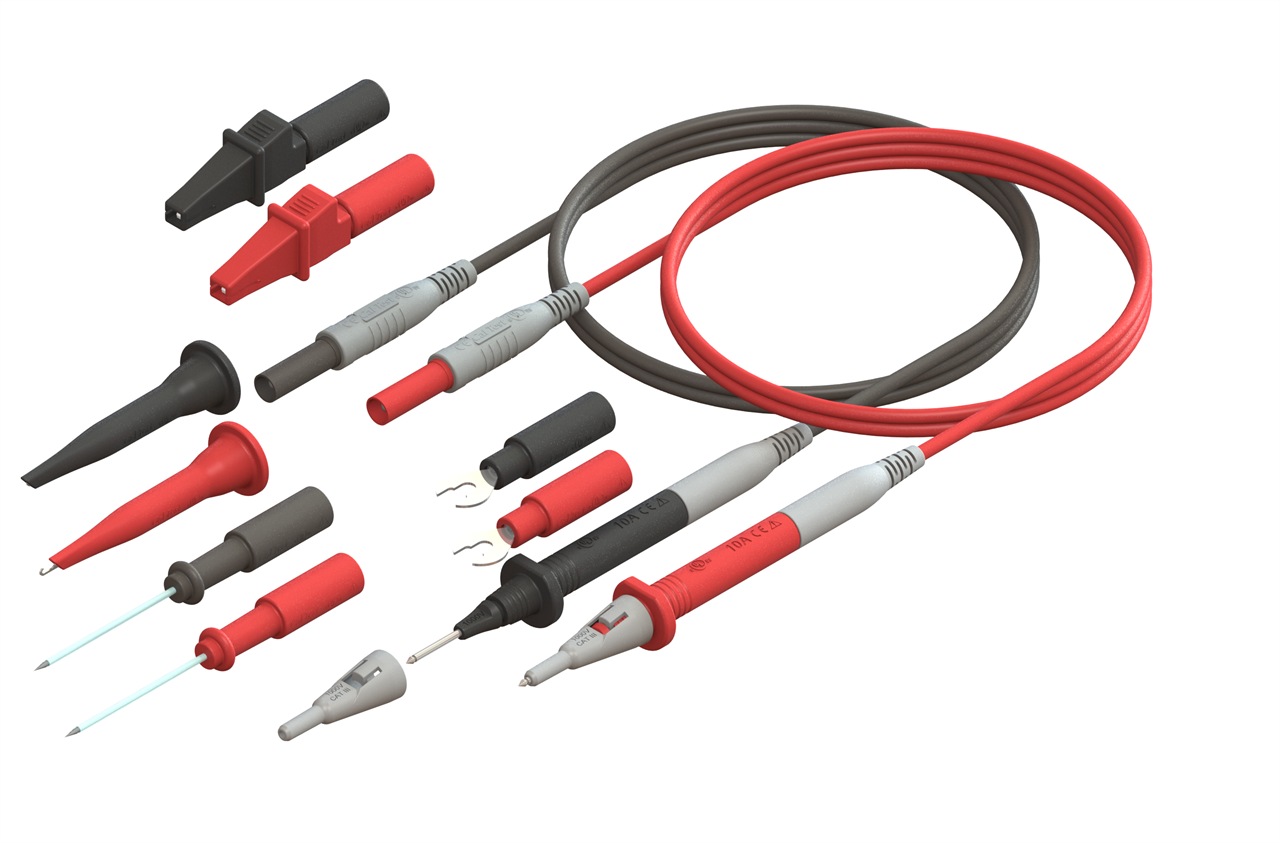

Pair of DMM probes with fixed leads, 2 mm (.080”) diameter x 19 mm (0.75”) probe tips for all test applications. With locking cap installed, the probe meets 600 V CAT IV applications. Remove the safety cap for access to the standard 2 mm tip and to attach tip accessories.
Includes pair of extended tips, alligator clips, spade lugs and sprung hooks all featuring "snap-locks" to probes.
Features:
- Probe body with 4 mm sheathed banana jack connection
- UL 61010-031 rated
- Accessories "snap-lock" to probe bodies
- Cap on probe tip provides CAT III / CAT IV usage
Kit Contains:
(2) Extended Tips, black & red - (CT3941B)
(2) Alligator Clips, black & red - (CT3943B)
(2) Spade Lugs, black & red - (CT3945B)
(2) Sprung Hooks, black & red - (CT3947B)
Kit Contents
- (1) Ext Tip Adapter, 3900B Series UL, 50mm, B/R Pair - CT3941B
- (1) Alligator Clip Adapter, 3900B Series UL, B/R Pair - CT3943B
- (1) Spade Lug Adapter, 3900B Series UL, B/R Pair - CT3945B
- (1) Sprung Hook Adapter, 3900B Series UL, B/R Pair - CT3947B
- (1) Probe w/Lock Cap, Shth Plug Leads, UL, 120cm, Black - CT3980B-120-0
- (1) Probe w/Lock Cap, Shth Plug Leads, UL, 120cm, Red - CT3980B-120-2
Specifications
- Type
- Digital Multimeter(DMM)
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Manual
