CT3945B
CT3945B Series
Active CatalogSpade Lug Adapter, 3900B Series UL, B/R Pair

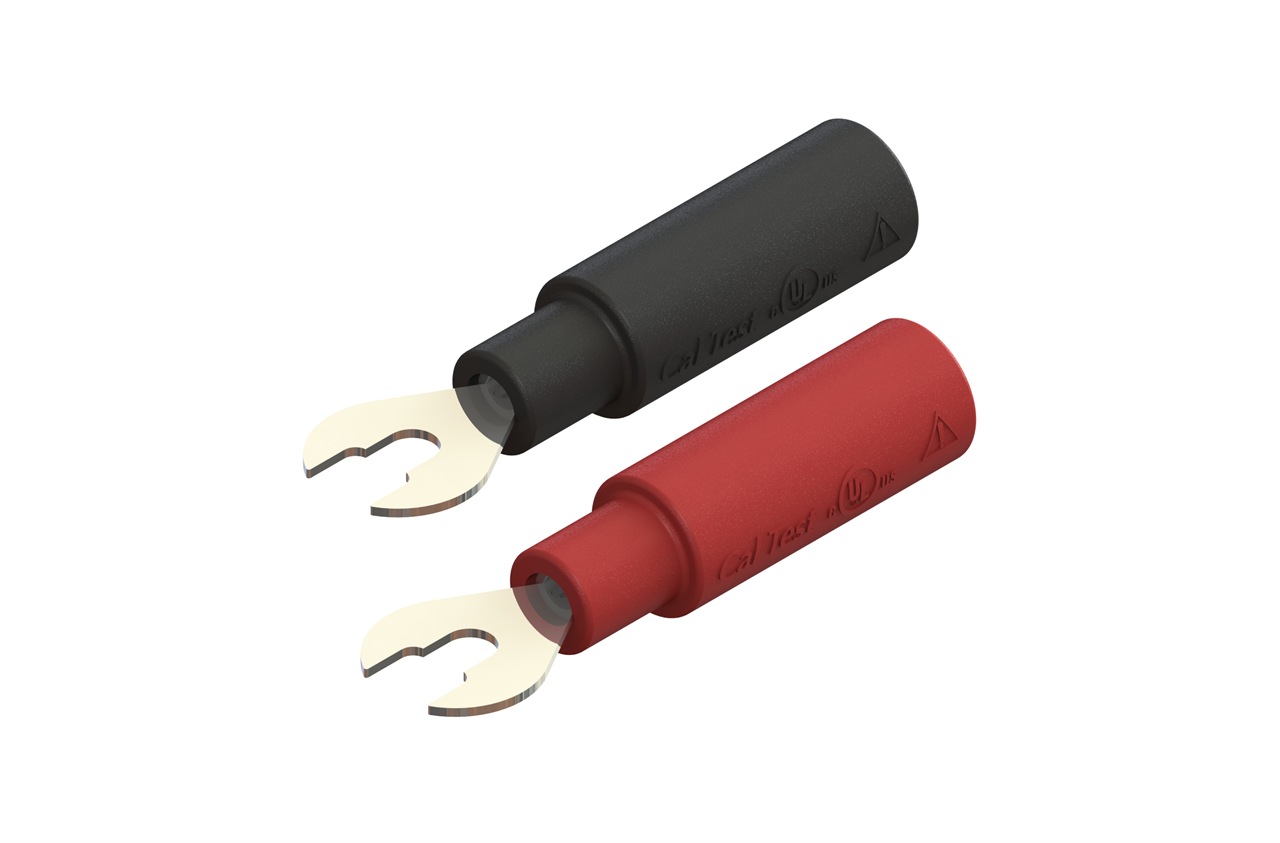

Spade Lug Adapter, 3900B Series UL, B/R Pair
$13.901 Year Warranty
Overview
UL listed pair of spade lug accessories for 3900B Series DMM probes. Spade lugs fit both #6 and #4 screws and lugs. Spades are .81 mm (.032") thick with PVC insulated bodies.
Remove the probe's safety cap to access the 2 mm diameter pin tips and attach spade lugs. Lugs "snap-lock" to the probes for firm attachment.
Features:
- Pair, black and red
- #6 and #4 spade openings
- "Snap-lock" to probe bodies
- UL 61010-031 rated
Kit Contents
- (1) Spade Lug Adapter, 3900B Series UL, Black - CT3944B-0
- (1) Spade Lug Adapter, 3900B Series UL, Red - CT3944B-2
Specifications
- Type
- Digital Multimeter (DMM)
- Max Current
- 5 A
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 56 days
- See More Specifications
