CT3941B
CT3941B Series
Active CatalogExtended Tip Adapter, 3900B Series UL, 50mm, B/R Pair
Ext Tip Adapter, 3900B Series UL, 50mm, B/R Pair
$30.001 Year Warranty
Overview

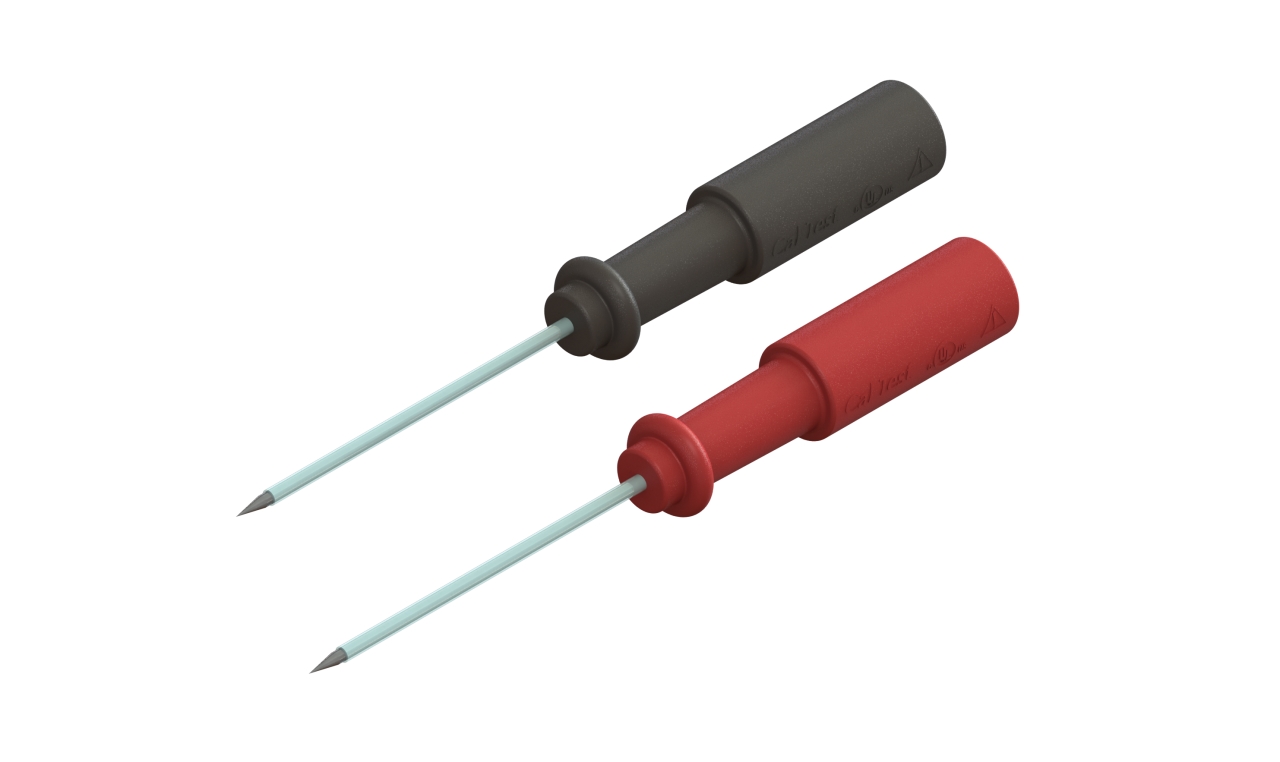

UL listed pair of extended tip accessories for 3900B Series DMM probes. Tips are 1.5 mm (.059") dia. x 50 mm (1.97") long extra-sharp stainless steel. Tip bodies are insulated by clear Kynar® sleeves.
Remove the probe's safety cap to access the 2 mm diameter pin tips and attach extended tips. Tips "snap-lock" to the probes for firm attachment.
Features:
- Pair, black and red
- 50 mm (1.97") long stainless steel extra-sharp tips
- Clear Kynar® sleeve insulation
- "Snap-lock" to probe bodies
- UL 61010-031 rated
Kit Contents
- (1) Ext Tip Adapter, 3900B Series UL, 50mm, Black - CT3940B-0
- (1) Ext Tip Adapter, 3900B Series UL, 50mm, Red - CT3940B-2
Specifications
- Type
- Digital Multimeter (DMM)
- Rated Voltage
- 300 V CAT II
- Max Current
- 3 A
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 56 days
- See More Specifications
- Manual
Documents
- ManualManual
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
