Overview
Model CT3688A features a fixed 10x attenuation setting, 200 MHz bandwidth and ±20 V maximum differential. This probe features a ±1% accuracy rating that will ensure the reliability of each and every measurement.
Compatible with oscilloscopes from all major manufacturers, the probe can be battery operated or powered directly from an oscilloscope using the included USB cable.
The probe comes housed in a rugged foam-lined plastic case. Inside the case you will find a QR code directing you to the latest version of the User Manual.
User applications include:
- Precise power semiconductor device measurements
- Switching power supply design
- Measurement of power converters
- Precise measurement of motor drives
Features:
- Meets IEC 61010-031 safety standard
- Small compact size
- Up to ±20 V differential
- High accuracy ±1%
- 200 MHz bandwidth (-3 dB)
- Excellent CMRR

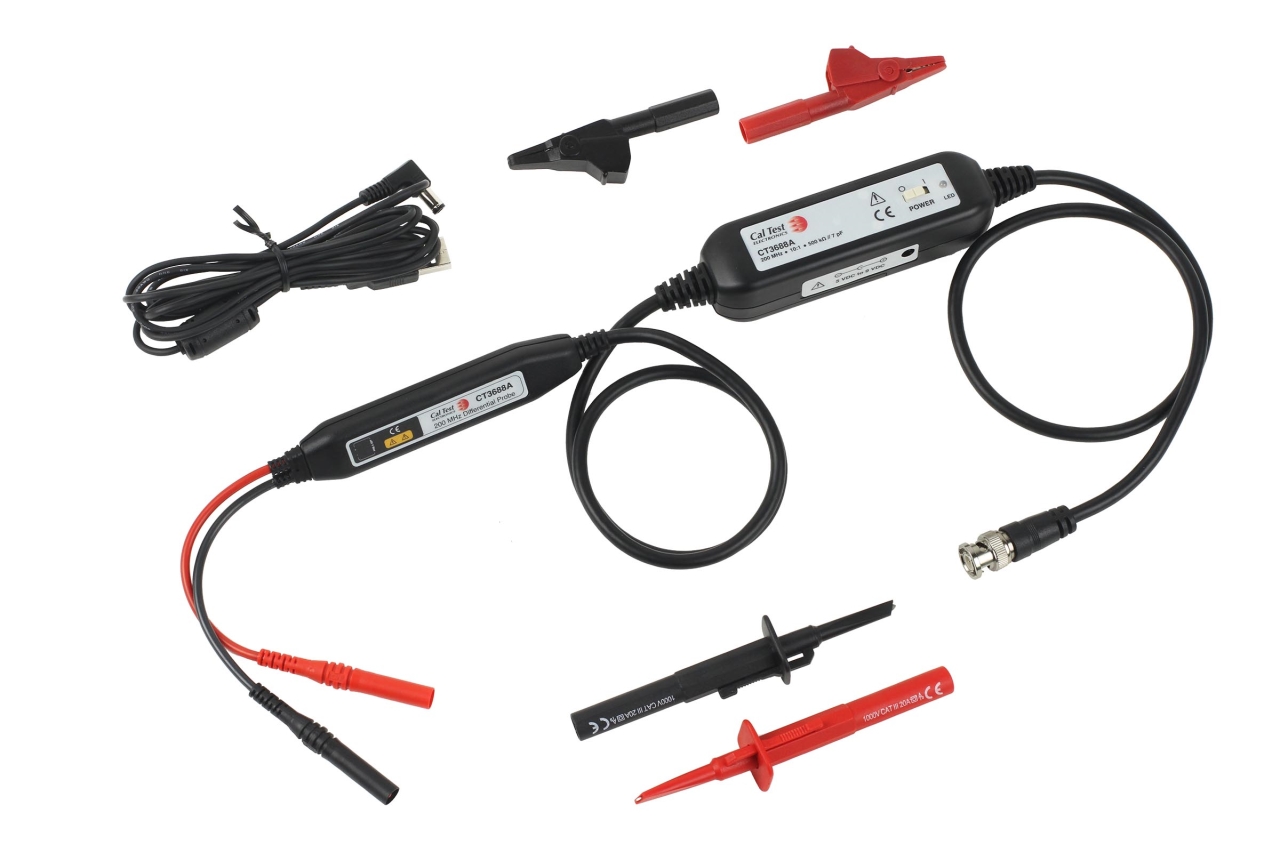

- Kit comes in foam-lined case and contains:
- Differential probe
- (2) Sprung hook probes, 1000 V, CAT III, 20 A (black & red) [CT4386]
- (2) Alligator clips, 300 V, CAT II (black & red) [CT4441]
- 9 V Battery
- USB Power Cable [CT4122]
Kit Contents
- (1) Differential Probe - CT3688A-UNIT
- (1) Insulated Sprung Hook Probes, 1000V CAT III, 20A, Pair(B/R) - CT4386
Specifications
- Attenuation
- 10x
- Bandwidth
- 200 MHz
- Max Differential Input Voltage
- 20 V
- Rated Voltage
- IEC 61010-031
- Input Impedance
- 500 kΩ
- Rise Time
- 1.75 ns
- Input Leads Length
- 15 cm
- Output Leads Length
- 120 cm
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Country of Origin
- Taiwan
- Lead Time
- 49 days
