CT4197
CT4197 Series
Active Catalog50 MHz Differential Probe
Differential Probe Kit, 50 MHz, 4 kV, 10x/100x/1000x
$950.001 Year Warranty
Overview
Differential probes allow for safe, accurate measurements between two voltage points where neither point is referenced to ground.
Model CT4197 features 10x/100x/1000x attenuation settings, 50 MHz bandwidth and ±4 kV maximum differential - all in a compact and rugged housing.
Compatible with oscilloscopes from all major manufacturers, the probe is ideal where high sensitivity and dynamic range is needed. The probe is exclusively powered by the included 9 V power adapter (CT3957-NA).
Features:
- Meets IEC 61010-1 safety standard
- Up to ±4 kV differential
- 50 MHz bandwidth (-3 dB)
- Power and over-range indicators
- Optional European style 9 V power adapter (CT3957-EU)

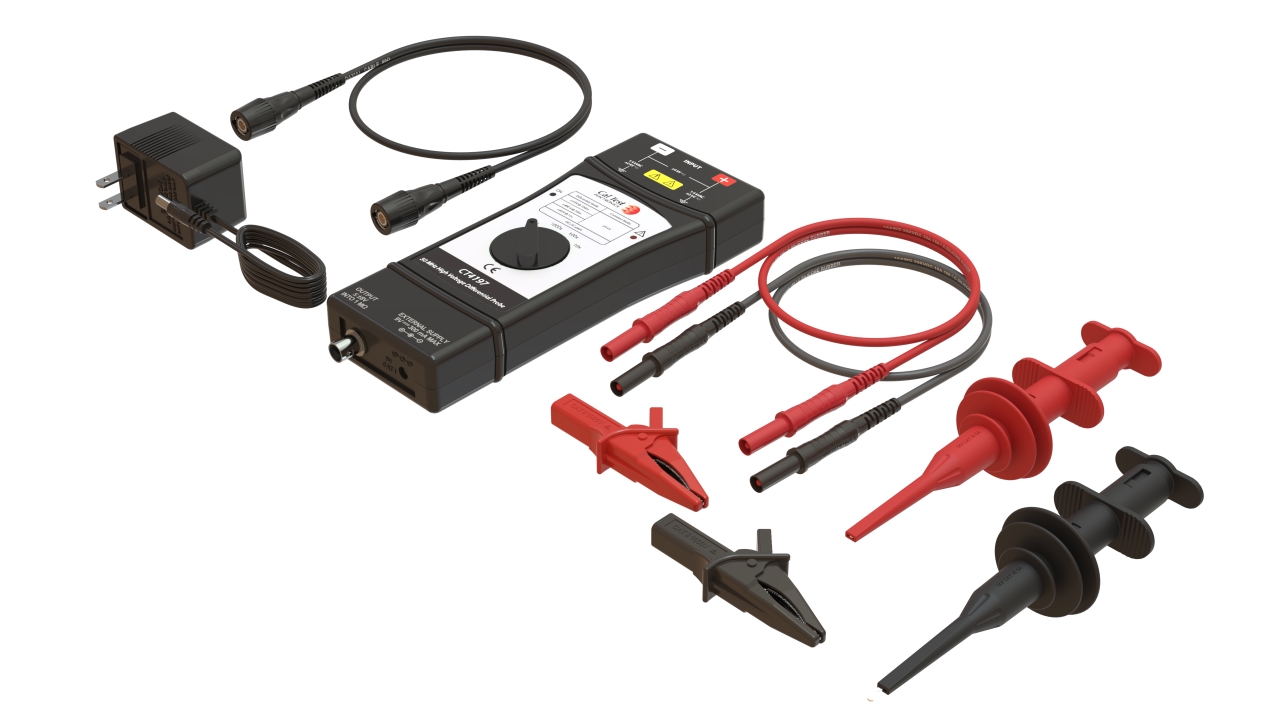

Kit Contains
- Differential probe
- (2) HV Pincer clips, black & red
- (2) Alligator clips, black & red
- (2) HV Banana plug leads, black & red
- Insulated BNC cable
- Power adapter (CT3957-NA)
- User manual
Specifications
- Attenuation
- 10x/100x/1000x
- Bandwidth
- 50 MHz
- Max Differential Input Voltage
- 4000 V (kV)
- Rated Voltage
- IEC 61010 CAT III
- Input Impedance
- 20 MΩ
- Rise Time
- 3.5 ns
- Input Leads Length
- 55 cm
- Output Leads Length
- 100 cm
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 49 days
