Overview

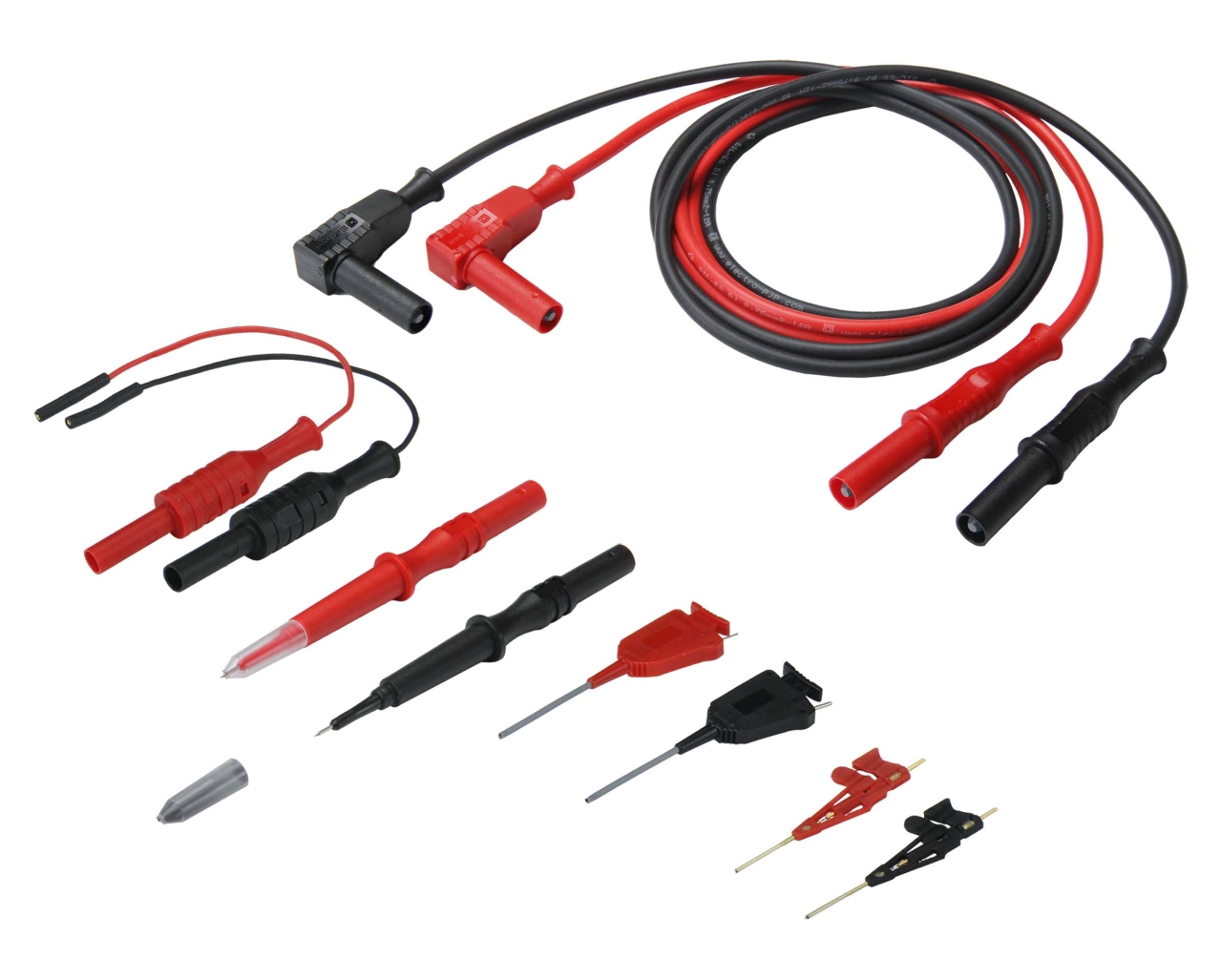

A complete test lead kit for High Density SMD (Surface Mount Device) testing. The Spring Tip MiniProbes and Silicone test leads make for a small, slim-line probe assembly. The MiniFlex Clips and the smaller MicroCips work with high density IC's.
- Silicone jacketed lead Wire
- MiniFlex Clips w/rotating pincer tips
- Packaged in Clear PVC Pouch
Kit Contains:
(2) Spring Tip MiniProbes, (1) Black (1) Red
(2) MicroClip Test Clips, (1) Black (1) Red
(2) MniFlex Test Clips, (1) Black (1) Red
(2) MicroLead, 4mm Jack to .031 Pin Jack, Silicone Jacket, 10 cm (4"), (1) Black (1) Red
(2) 4mm Banana Test Leads, Sheath Plug to Right-Angle Sheath Plug, Silicone Jacket, 100 cm (40"), (1) Black (1) Red
Kit Contents
- (1) Pouch, Clear Polyethylene - 451033-001
- (1) Lead, 4mm Shth P-RaP - SILIC 0.75, 100cm, Black - CT2176-100-0
- (1) Lead, 4mm Shth P-RaP - SILIC 0.75, 100cm, Red - CT2176-100-2
- (1) Spg Tip MiniProbe - 4mm Jack, Black - CT2388-0
- (1) Spg Tip MiniProbe - 4mm Jack, Red - CT2388-2
- (1) MiniFlex Clip, .031 Pin - Black - CT2592-0
- (1) MiniFlex Clip, .031 Pin - Red - CT2592-2
- (1) MicroClip Test Clip - Black - CT2845-0
- (1) MicroClip Test Clip - Red - CT2845-2
- (1) 4mm MicroLead to .031 J - SILIC, 10cm, Black - CT2887-10-0
- (1) 4mm MicroLead to .031 J - SILIC, 10cm, Red - CT2887-10-2
Specifications
- Type
- Digital Multimeter(DMM)
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 84 days
