Product resources
Overview

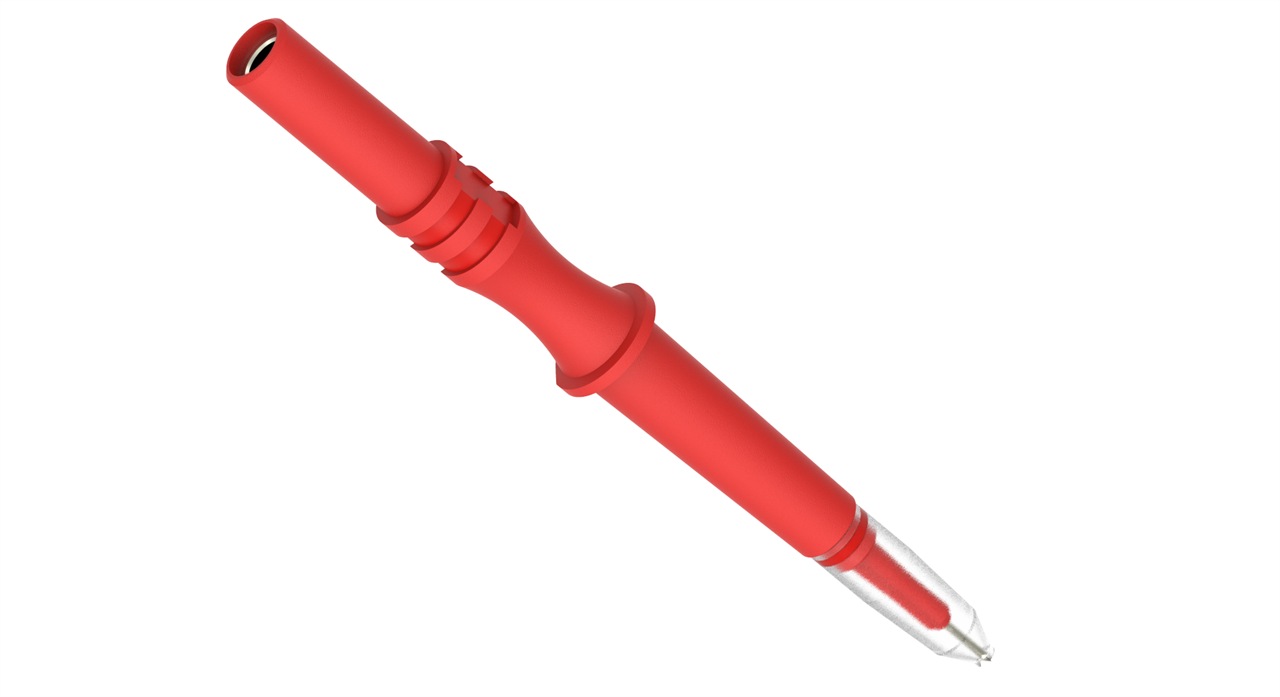

Unique probe body featuring an extremely sharp Ø 0.7 mm (.028") springs-loaded, stainless steel tip. Use on those small, delicate ICs and components. The probe is supplied with a clear, removable IC cap covering the tip.
Body accepts a 4 mm sheath (safety) banana plug test lead.
Features:
- 600 V CAT II rating
- Contact tip: Sharp Stainless Steel
- Clear, removable IC cap
- Miniature size body: 81 mm (3.2") length
- Black and red colors standard; others available as special order
Black and Red pair available as Model CT2665
Models
| Image | Model | Description | MSRP | Status | Warranty | Rated Voltage | Max Current | Color | UOM |
|---|---|---|---|---|---|---|---|---|---|
 |
CT2388-0 | Spg Tip MiniProbe - 4mm Jack, Black | $18.00 | Active Catalog | 1 Year | 600 V CAT II | 1 A | Black | EA |
 |
CT2388-2 | Spg Tip MiniProbe - 4mm Jack, Red | $18.00 | Active Catalog | 1 Year | 600 V CAT II | 1 A | Red | EA |
Specifications
- Rated Voltage
- 600 V CAT II
- Max Current
- 1 A
- Color
- Red
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
