Overview

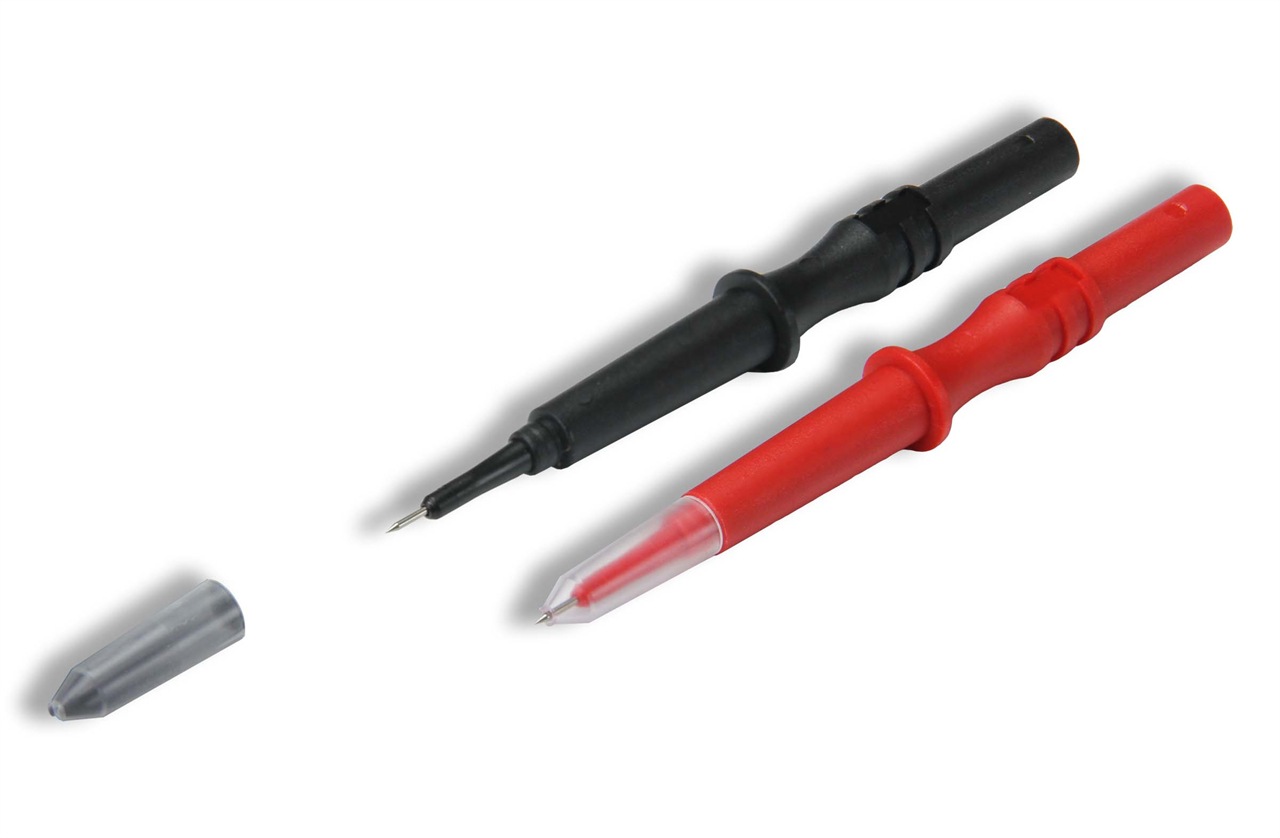

Black and red pair of unique probe bodies featuring extremely sharp Ø 0.7 mm (.028") springs-loaded, stainless steel tips. Use on those small, delicate ICs and components. The probes are supplied with clear, removable IC caps covering the tips.
Bodies accepts a 4 mm sheath (safety) banana plug test leads.
Features:
- 600 V CAT II rating
- Contact tips: Sharp Stainless Steel
- Clear, removable IC caps
- Miniature size bodies: 81 mm (3.2") length
Individual colors available as Model CT2388
Kit Contents
Specifications
- Rated Voltage
- 600 V CAT II
- Max Current
- 1 A
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
