Product resources
CT2887-10-0
CT2887 Series
Active CatalogMicroLead Jack to 4mm Jack

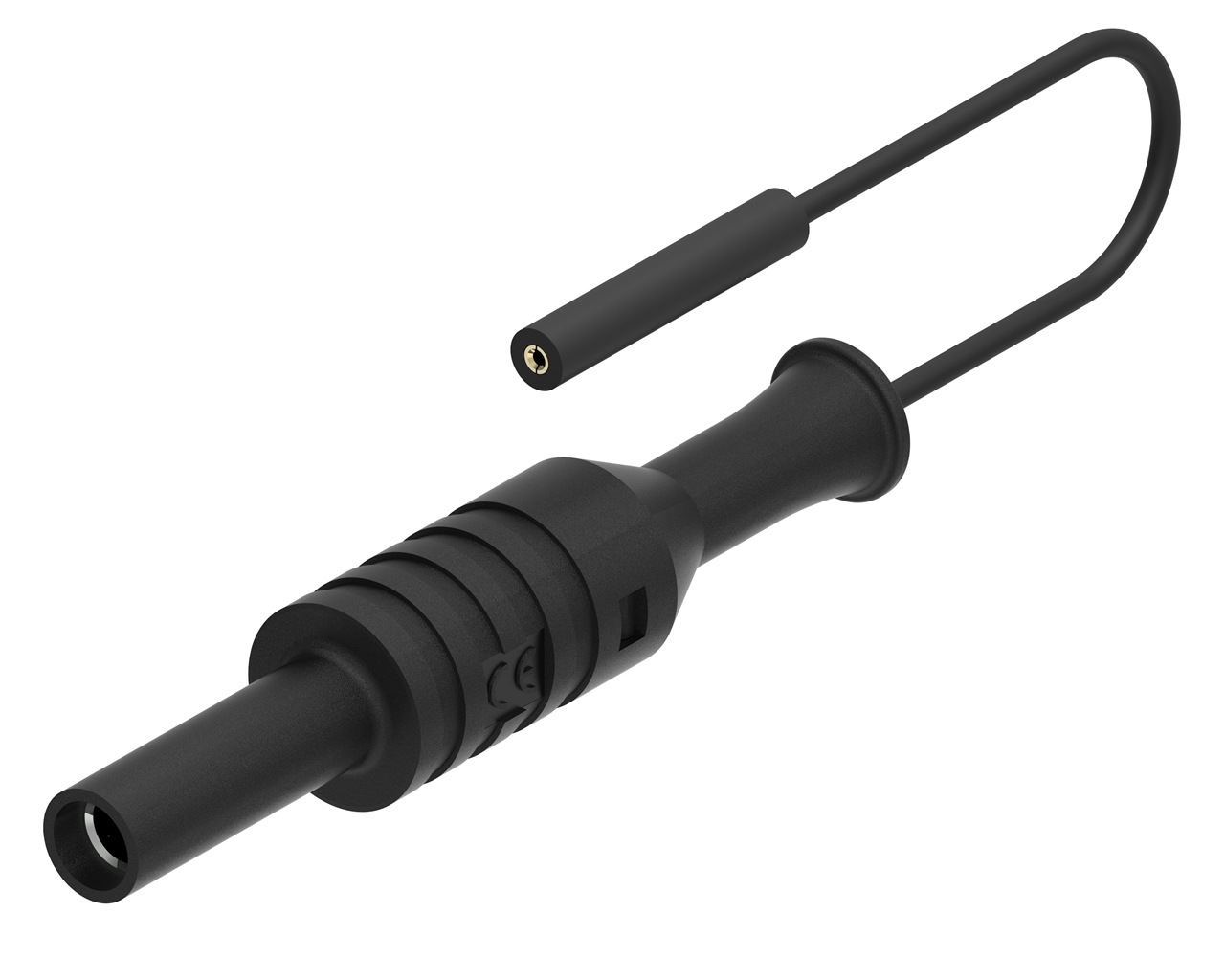

4mm MicroLead to .031 J - SILIC, 10cm, Black
$10.001 Year Warranty
Where to Buy
Overview
Individual lead for interconnecting MicroClip Test Clips and MiniFlex Clips to instrument. 0.8mm female jack to 4mm banana jack with silicone lead wire. Connect a MicroClip or a MiniFlex Clip to a sheathed banana plug lead for DMM use.
- Highly flexible Silicone lead wire
- Material: Brass, Gold Plt.
- Available in black and red as a pair, CT3099
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Connector B | Length | Color | Rated Voltage | Max Current | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2887-10-0 | 4mm MicroLead to .031 J - SILIC, 10cm, Black | $10.00 | Active Catalog | 1 Year | MicroLead | MicroLead | 4mm Jack, MicroLead Jack | 10 cm | Black | 33 VAC / 70 VDC | 2 A | 24 AWG | EA |
 |
CT2887-10-2 | 4mm MicroLead to .031 J - SILIC, 10cm, Red | $10.00 | Active Catalog | 1 Year | MicroLead | MicroLead | 4mm Jack, MicroLead Jack | 10 cm | Red | 33 VAC / 70 VDC | 2 A | 24 AWG | EA |
Specifications
- Type
- MicroLead
- Connector A
- MicroLead
- Connector B
- 4mm Jack, MicroLead Jack
- Length
- 10 cm
- Color
- Black
- Rated Voltage
- 33 VAC / 70 VDC
- Max Current
- 2 A
- Wire Gauge
- 24 AWG
- Conductor Area
- 0.22 mm2
- Jacket Material
- Silicone
- OD
- 1.4mm (0.055")
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
