CT3099
CT3099 Series

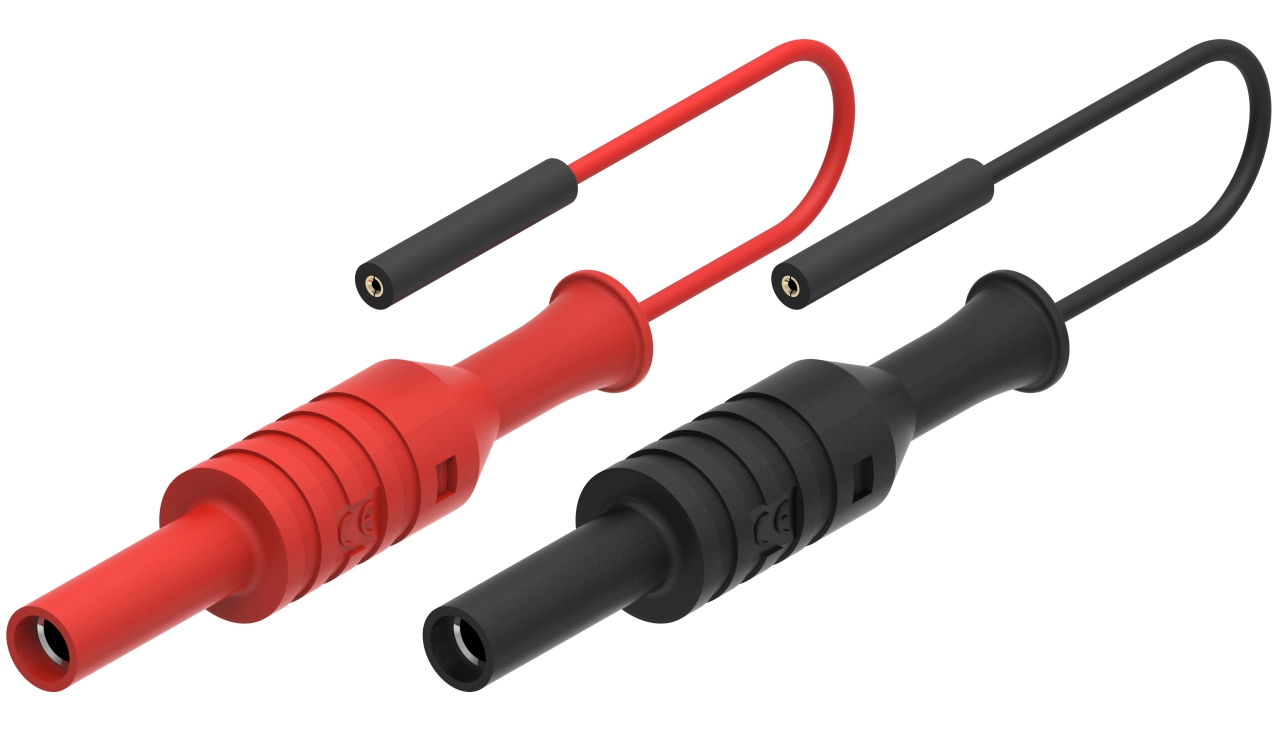

Active CatalogMicroLead Jack to 4mm Jack, Pair (B/R)
4mm MicroLead to .031 J - SILIC, 10cm, Pair (B/R)
$20.001 Year Warranty
Where to Buy
Select Variant
Length
Overview
Pair of interconnecting leads for MicroClip Test Clips and MiniFlex Test Clips to connect to instrument. 0.8mm female jack to 4mm banana jack with silicone lead wire. Connect MicroClip or MiniFlex clips to sheathed banana plug leads for DMM use.
- Highly flexible Silicone lead wire
- Material: Brass, Gold Plt.
- Red and black pair
Kit Contents
- (1) 4mm MicroLead to .031 J - SILIC, 10cm, Black - CT2887-10-0
- (1) 4mm MicroLead to .031 J - SILIC, 10cm, Red - CT2887-10-2
Specifications
- Type
- MicroLead
- Connector A
- MicroLead
- Connector B
- 4mm Jack, MicroLead Jack
- Length
- 10 cm
- Color
- Black/Red Pair
- Rated Voltage
- 33 VAC / 70 VDC
- Max Current
- 2 A
- Wire Gauge
- 24 AWG
- Conductor Area
- 0.22 mm2
- Jacket Material
- Silicone
- OD
- 1.4mm (0.055")
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
