Overview
Replaced by PB-507ALAB
- Flush-mounted, removable circuit breadboard for multiple student lab usage
- LCD displays the settings from each active module
- USB connection enables viewing and controlling from a PC
- Choose your power source: 6.3/12.6 VAC, 5 VDC or variable ±20 VDC
- Draw power from banana plug connections or the tie-point power supplies above each breadboard bus strip
- Powerful 1 MHz bandwidth function generator with sine, triangle, and square wave output
- Pulse generator operates like a second, independent function generator enabled to modify the duty cycle between 10-90%
- Frequency counter module reports on the output of your own specially designed circuits
- One-year warranty
Kit Contents

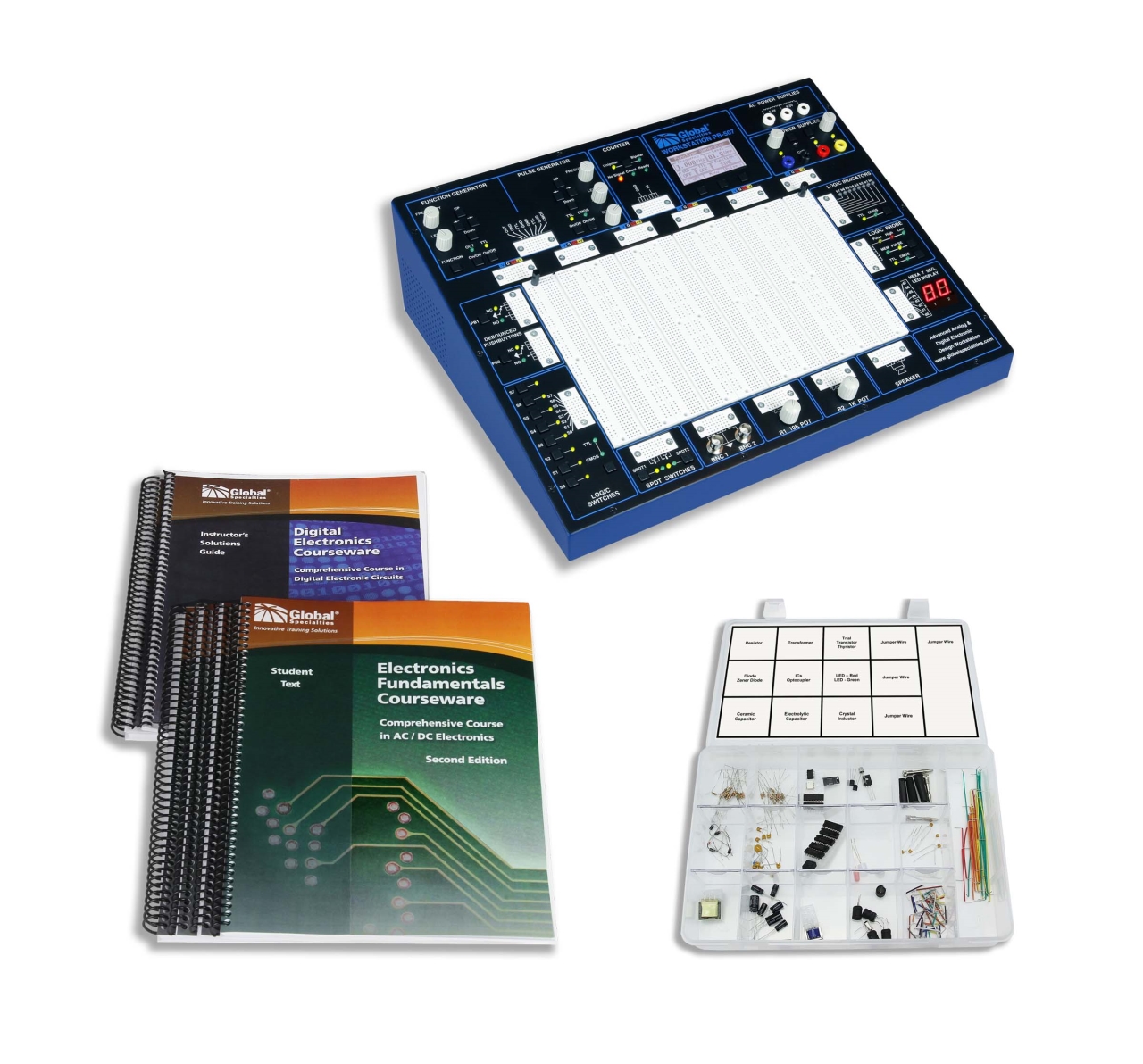

- (1) Electronics Fundamentals Lab Kit - GSC-2311KIT
- (1) Digital Electronics Student Text - GSC-3200
- (1) Digital Electronics Instructor Guide - GSC-3201
- (1) Advanced Analog & Digital Electronic Design Trainer - PB-507
Specifications
- Type
- Desktop Trainer
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- Taiwan
- Lead Time
- 98 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
