PB-507
PB-507 Series
Active CatalogAdvanced Analog & Digital Electronic Design Trainer

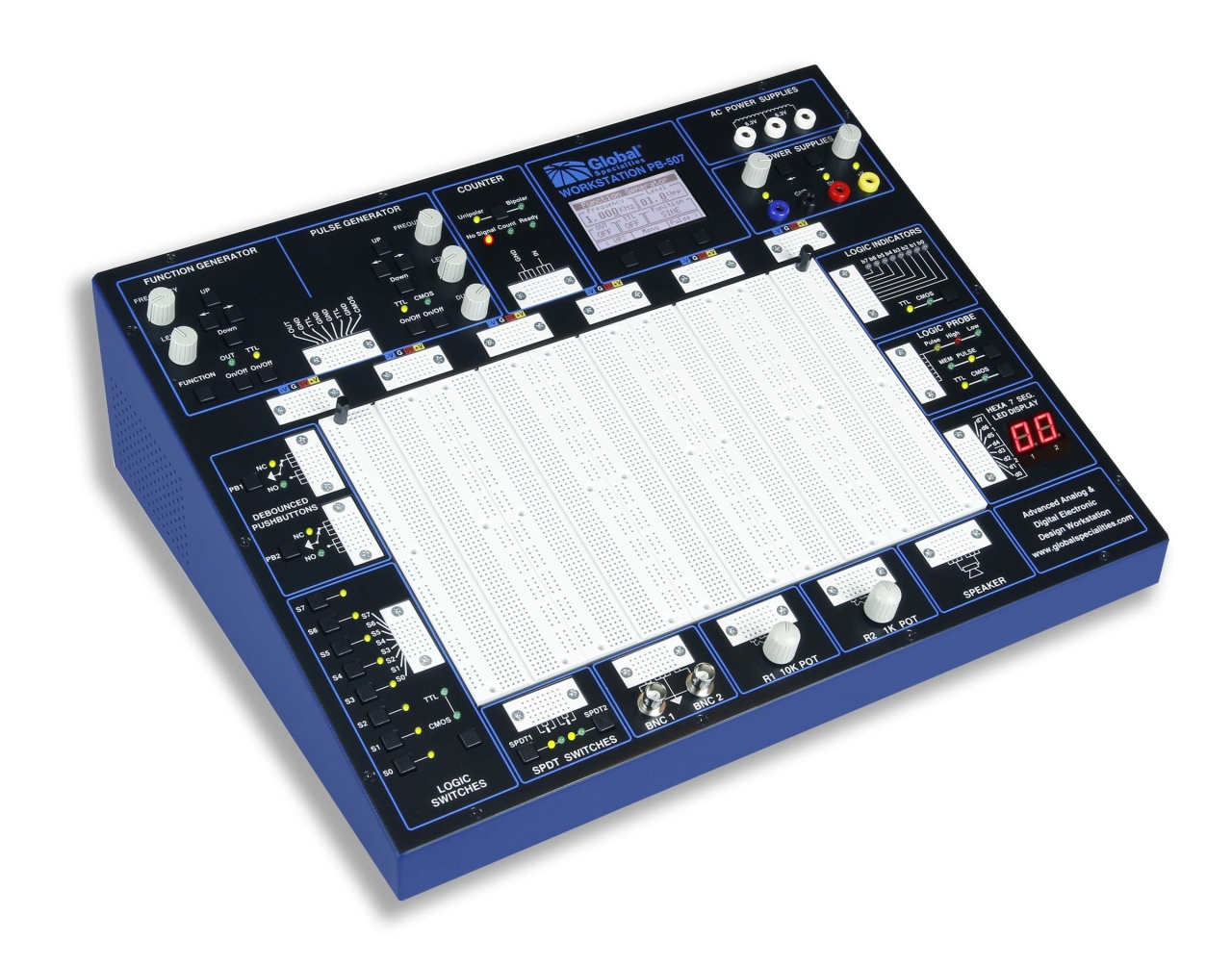

Advanced Analog & Digital Electronic Design Trainer
$1,600.003 Years Warranty
Overview
- Flush-mounted, removable circuit breadboard for multiple student lab usage
- LCD displays the settings from each active module
- USB connection enables viewing and controlling from a PC
- Choose your power source: 6.3/12.6 VAC, 5 VDC or variable ±20 VDC
- Draw power from banana plug connections or the tie-point power supplies above each breadboard bus strip
- Powerful 1 MHz bandwidth function generator with sine, triangle, and square wave output
- Pulse generator operates like a second, independent function generator enabled to modify the duty cycle between 1090%
- Frequency counter module reports on the output of your own specially designed circuits
