Overview

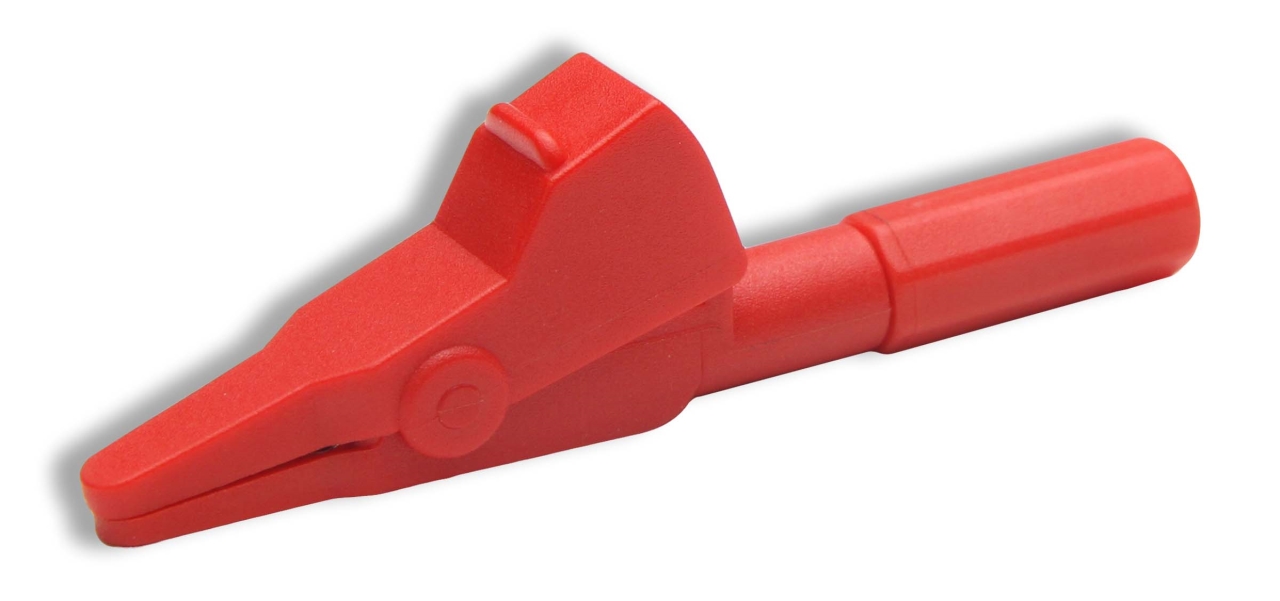

Fully insulated small safety alligator clip with 4mm safety banana jack. Accepts retractable, sheathed, and standard banana plugs. Jaws open to 0.27" (7 mm).
- Material: Steel, Nickel Plated; Glass-filled Nylon
- Mueller cross: BU-652-*
- Jaws open to 0.27" (7 mm)
- Length: 3.24" (82 mm)
- Accepts retractable, sheathed, and standard 4mm banana plugs
- Available in 2 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | Operating Temperature | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CTM-652-0 | Small Safety Alligator Clip, 20A, Black | $8.35 | Active Catalog | 1 Year | Fully Insulated | Black | 1,000 V CAT II / 600 V CAT III | 20 A | 0° to +60°C | EA |
 |
CTM-652-2 | Small Safety Alligator Clip, 20A, Red | $8.35 | Active Catalog | 1 Year | Fully Insulated | Red | 1,000 V CAT II / 600 V CAT III | 20 A | 0° to +60°C | EA |
Specifications
- Type
- Fully Insulated
- Color
- Red
- Rated Voltage
- 1,000 V CAT II / 600 V CAT III
- Max Current
- 20 A
- Operating Temperature
- 0° to +60°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- China
- Lead Time
- 98 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
