CTM-652-0
CTM-652 Series
Active CatalogSmall Insulated Alligator Clip

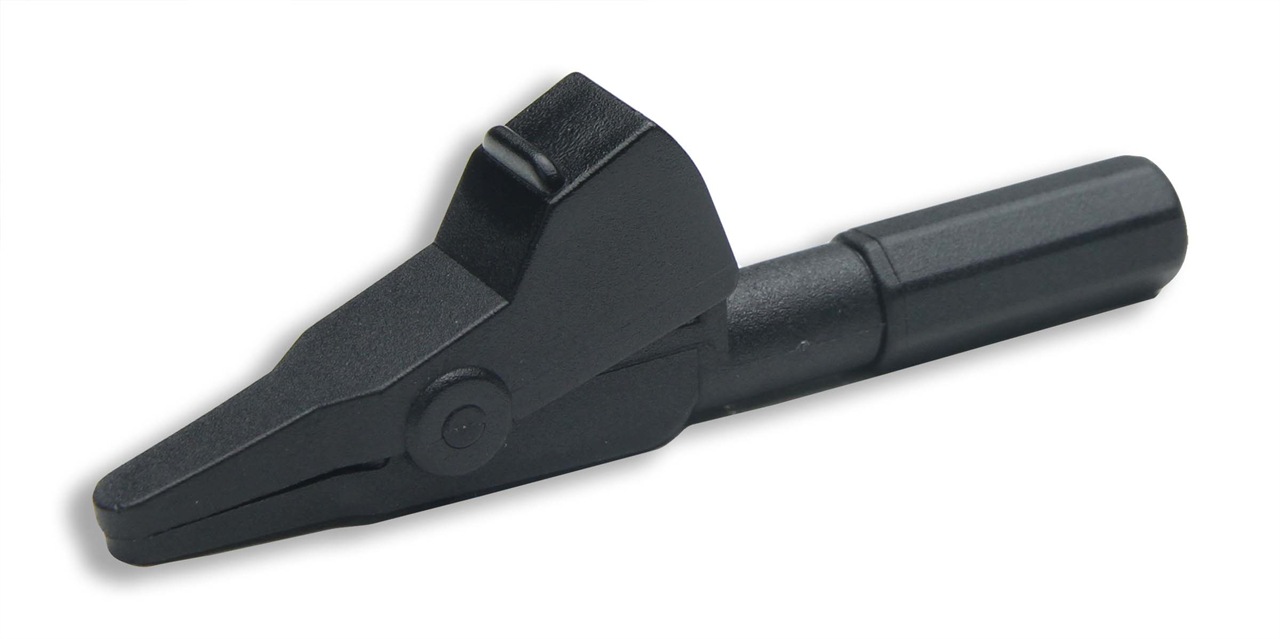

Small Safety Alligator Clip, 20A, Black
$8.351 Year Warranty
Where to Buy
Overview
Fully insulated small safety alligator clip with 4mm safety banana jack. Accepts retractable, sheathed, and standard banana plugs. Jaws open to 0.27" (7 mm).
- Material: Steel, Nickel Plated; Glass-filled Nylon
- Mueller cross: BU-652-*
- Jaws open to 0.27" (7 mm)
- Length: 3.24" (82 mm)
- Accepts retractable, sheathed, and standard 4mm banana plugs
- Available in 2 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | Operating Temperature | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CTM-652-0 | Small Safety Alligator Clip, 20A, Black | $8.35 | Active Catalog | 1 Year | Fully Insulated | Black | 1,000 V CAT II / 600 V CAT III | 20 A | 0° to +60°C | EA |
 |
CTM-652-2 | Small Safety Alligator Clip, 20A, Red | $8.35 | Active Catalog | 1 Year | Fully Insulated | Red | 1,000 V CAT II / 600 V CAT III | 20 A | 0° to +60°C | EA |
Specifications
- Type
- Fully Insulated
- Color
- Black
- Rated Voltage
- 1,000 V CAT II / 600 V CAT III
- Max Current
- 20 A
- Operating Temperature
- 0° to +60°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- China
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
