CT4567RA

Name: CT4567RA Probe 5mm, 10x, 500MHz, 500V CAT II (Readout), Champagne
Brand: Cal Test Electronics
SKU: CT4567RA
Price: 100.0 USD
Availability: InStock

CT4560 Series

Active Catalog

CT4560 Series - 5 mm Passive-Voltage Probes, 55–500 MHz, 55 Vrms–4 kVrms

Probe 5 mm, 10 x, 500 MHz, 500 V CAT II (Readout), Champagne

$100.002 Years Warranty

Where to Buy

Distributor	Availability
DIGIKEY	Low Stock	Buy Now →
MOUSER ELECTRONICS	4 in stock	Buy Now →
NEWARK	1 in stock	Buy Now →

Select Variant

Overview

The Cal Test Electronics CT4560 Series comprises 14 distinct models of 5mm passive voltage oscilloscope probes, engineered for a broad range of electrical testing scenarios. These probes deliver dependable performance and are constructed with high-quality materials to ensure durability, precision, and long-term reliability.

Attenuation options include X1, X10, X100, and switchable X10/X1, supporting a wide range of signal amplitudes. The series covers a frequency range from 55 MHz to 500 MHz, making it suitable for everything from low-frequency analog signals to high-speed digital waveforms. Select models support voltage measurements of either 2 kVrms or 4 kVrms, with one 4 kVrms model offering 1% measurement accuracy for precision-critical applications.

Each probe is designed to provide accurate signal transmission with minimal loading effect, making them ideal for:

General-purpose signal monitoring
Troubleshooting and diagnostics in electronic circuits
Design validation and verification
Educational lab environments
Industrial and high-voltage testing (select models)

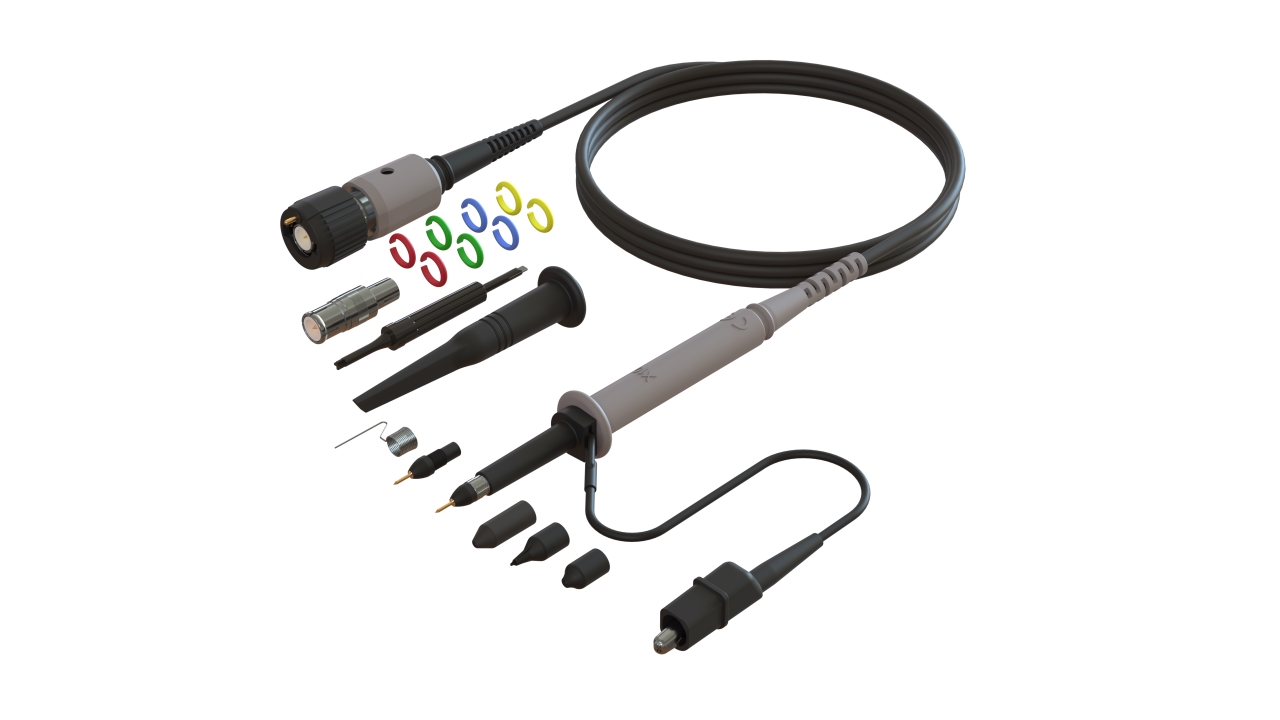

Each CT4560 Series probe includes a comprehensive accessory kit with tips, adapters, and ground leads, allowing users to tailor the probe setup to their specific testing needs.

All models are RoHS 2 and REACH compliant, and the series is now backed by a two-year warranty for added peace of mind.

Select your probe with the comparison table below. For full specifications, see the manual.

Models

Model	Description	MSRP	Status	Warranty	Type	Attenuation	Bandwidth	Rated Voltage	Cable Length	Impedance	UOM
CT4560	Probe 5mm, 1x, 55MHz, Champagne	$25.00	Active Catalog	2 Years	CT4560	1x	55 MHz	55 V CAT II	1.2 m	1 MΩ / 45 pF	EA
CT4561	Probe 5mm, 1x/10x, 17/150MHz, 55/500V CAT II, Champagne	$29.00	Active Catalog	2 Years	CT4560	1x/10x	150/17 MHz	500 CAT II	1.2 m	10/1 MΩ / 12/45 pF	EA
CT4562RA	Probe 5mm, 10x, 150MHz, 500V CAT II (Readout), Champagne	$35.00	Active Catalog	2 Years	CT4560	X10	150 MHz	500 CAT II	1.2 m	10 MΩ	EA
CT4563	Probe 5mm, 1x/10x, 25/250MHz, 55/500V CAT II, Champagne	$40.00	Active Catalog	2 Years	CT4560	X10/X1	250/25 MHz	500 CAT II	1.2 m	10/1 MΩ	EA
CT4564RA	Probe 5mm, 10x, 250MHz, 500V CAT II (Readout), Champagne	$45.00	Active Catalog	2 Years	CT4560	X10	250 MHz	500 CAT II	1.2 m	10 MΩ	EA
CT4565	Probe 5mm, 1x/10x, 25/350MHz, 55/500V CAT II, Champagne	$55.00	Active Catalog	2 Years	CT4560	X10/X1	350/25 MHz	500 CAT II	1.2 m	10/1 MΩ	EA
CT4566RA	Probe 5mm, 10x, 350MHz, 500V CAT II (Readout), Champagne	$60.00	Active Catalog	2 Years	CT4560	X10	350 MHz	500 CAT II	1.2 m	10 MΩ	EA
CT4567ARA	Probe 5mm,10x,500MHz,500V CATII (Readout),Champagne Full Kit	$120.00	Active Catalog	2 Years	CT4560	X10	500 MHz	500 CAT II	1.2 m	10 MΩ	EA
CT4567RA	Probe 5mm, 10x, 500MHz, 500V CAT II (Readout), Champagne	$100.00	Active Catalog	2 Years	CT4560	X10	500 MHz	500 CAT II	1.2 m	10 MΩ	EA
CT4568	Probe 5mm, 100x, 300MHz, 2kV, Red	$55.00	Active Catalog	2 Years	CT4560	X100	300 MHz	2 kVrms	1.2 m	100 MΩ	EA
CT4568RA	Probe 5mm, 100x, 300MHz, 2kV (Readout), Red	$60.00	Active Catalog	2 Years	CT4560	X100	300 MHz	2 kVrms	1.2 m	100 MΩ	EA
CT4570RA	Probe 5mm, 100x, 500MHz, 2kV (Readout), Red	$120.00	Active Catalog	2 Years	CT4560	X100	500 MHz	2 kVrms	1.2 m	100 MΩ	EA
CT4571RA	Probe 5mm, 100x, 300MHz, 4kV (Readout), Red	$130.00	Active Catalog	2 Years	CT4560	X100	300 MHz	4 kVrms	1.2 m	100 MΩ	EA
CT4572RA	Probe 5mm, 100x, 500MHz, 4kV (Readout), Precision 1%, Red	$140.00	Active Catalog	2 Years	CT4560	X100	500 MHz	4 kVrms	1.2 m	100 MΩ	EA

Specifications

Type: CT4560
Attenuation: X10
Bandwidth: 500 MHz
Rated Voltage: 500 CAT II
Cable Length: 1.2 m
Impedance: 10 MΩ
Input Capacitance: 12 pF
Rise Time: 0.7 ns
Export Control Classification Number (ECCN): EAR99
REACH Compliance: Compliant
RoHS Compliance: RoHS 2 (2015/863/EU) Compliant
Schedule B Number: 9030.90.8010
Country of Origin: Taiwan
Lead Time: 84 days
See More Specifications: Manual
