Active CatalogCT4560 Series - 5 mm Passive-Voltage Probes, 55–500 MHz, 55 Vrms–4 kVrms

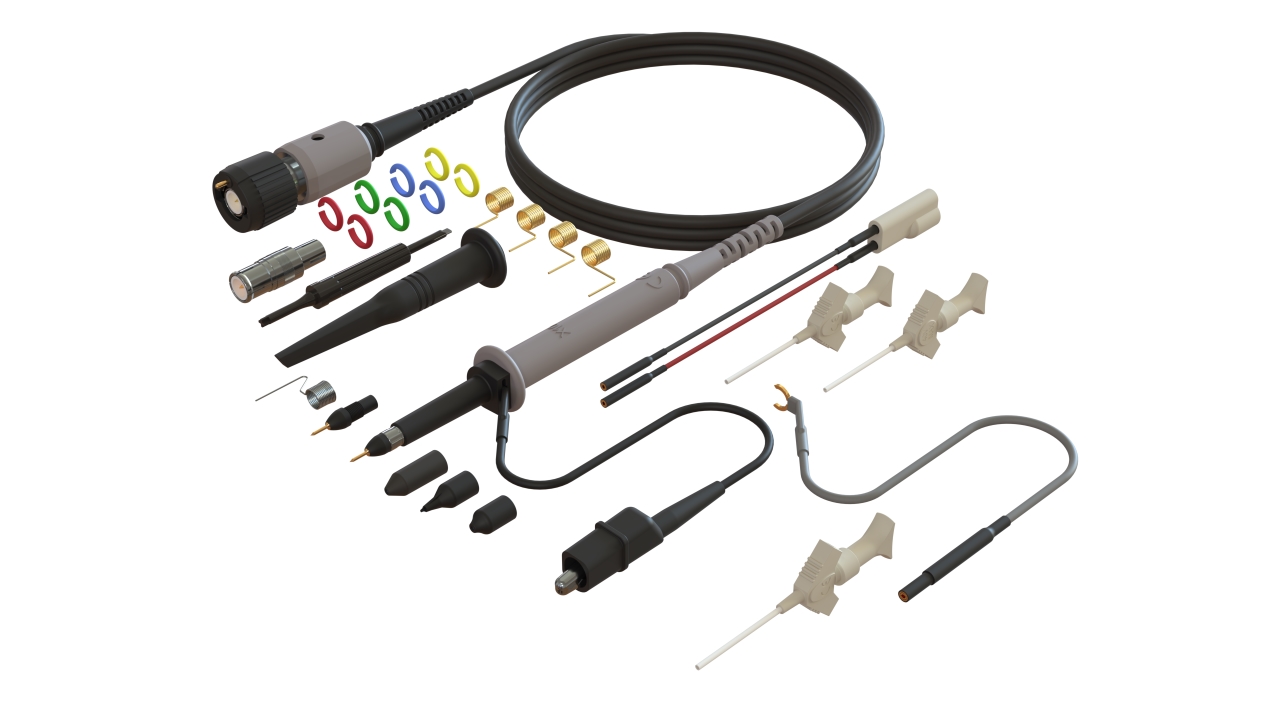

Probe 5mm,10x,500MHz,500V CATII (Readout),Champagne Full Kit
Where to Buy
Overview
The Cal Test Electronics CT4560 Series comprises 14 distinct models of 5mm passive voltage oscilloscope probes, engineered for a broad range of electrical testing scenarios. These probes deliver dependable performance and are constructed with high-quality materials to ensure durability, precision, and long-term reliability.
Attenuation options include X1, X10, X100, and switchable X10/X1, supporting a wide range of signal amplitudes. The series covers a frequency range from 55 MHz to 500 MHz, making it suitable for everything from low-frequency analog signals to high-speed digital waveforms. Select models support voltage measurements of either 2 kVrms or 4 kVrms, with one 4 kVrms model offering 1% measurement accuracy for precision-critical applications.
Each probe is designed to provide accurate signal transmission with minimal loading effect, making them ideal for:
- General-purpose signal monitoring
- Troubleshooting and diagnostics in electronic circuits
- Design validation and verification
- Educational lab environments
- Industrial and high-voltage testing (select models)
Each CT4560 Series probe includes a comprehensive accessory kit with tips, adapters, and ground leads, allowing users to tailor the probe setup to their specific testing needs.
All models are RoHS 2 and REACH compliant, and the series is now backed by a two-year warranty for added peace of mind.
Select your probe with the comparison table below. For full specifications, see the manual.
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Attenuation | Bandwidth | Rated Voltage | Cable Length | Impedance | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4560 | Probe 5mm, 1x, 55MHz, Champagne | $25.00 | Active Catalog | 2 Years | CT4560 | 1x | 55 MHz | 55 V CAT II | 1.2 m | 1 MΩ / 45 pF | EA |
 |
CT4561 | Probe 5mm, 1x/10x, 17/150MHz, 55/500V CAT II, Champagne | $29.00 | Active Catalog | 2 Years | CT4560 | 1x/10x | 150/17 MHz | 500 CAT II | 1.2 m | 10/1 MΩ / 12/45 pF | EA |
 |
CT4562RA | Probe 5mm, 10x, 150MHz, 500V CAT II (Readout), Champagne | $35.00 | Active Catalog | 2 Years | CT4560 | X10 | 150 MHz | 500 CAT II | 1.2 m | 10 MΩ | EA |
 |
CT4563 | Probe 5mm, 1x/10x, 25/250MHz, 55/500V CAT II, Champagne | $40.00 | Active Catalog | 2 Years | CT4560 | X10/X1 | 250/25 MHz | 500 CAT II | 1.2 m | 10/1 MΩ | EA |
 |
CT4564RA | Probe 5mm, 10x, 250MHz, 500V CAT II (Readout), Champagne | $45.00 | Active Catalog | 2 Years | CT4560 | X10 | 250 MHz | 500 CAT II | 1.2 m | 10 MΩ | EA |
 |
CT4565 | Probe 5mm, 1x/10x, 25/350MHz, 55/500V CAT II, Champagne | $55.00 | Active Catalog | 2 Years | CT4560 | X10/X1 | 350/25 MHz | 500 CAT II | 1.2 m | 10/1 MΩ | EA |
 |
CT4566RA | Probe 5mm, 10x, 350MHz, 500V CAT II (Readout), Champagne | $60.00 | Active Catalog | 2 Years | CT4560 | X10 | 350 MHz | 500 CAT II | 1.2 m | 10 MΩ | EA |
 |
CT4567ARA | Probe 5mm,10x,500MHz,500V CATII (Readout),Champagne Full Kit | $120.00 | Active Catalog | 2 Years | CT4560 | X10 | 500 MHz | 500 CAT II | 1.2 m | 10 MΩ | EA |
 |
CT4567RA | Probe 5mm, 10x, 500MHz, 500V CAT II (Readout), Champagne | $100.00 | Active Catalog | 2 Years | CT4560 | X10 | 500 MHz | 500 CAT II | 1.2 m | 10 MΩ | EA |
 |
CT4568 | Probe 5mm, 100x, 300MHz, 2kV, Red | $55.00 | Active Catalog | 2 Years | CT4560 | X100 | 300 MHz | 2 kVrms | 1.2 m | 100 MΩ | EA |
 |
CT4568RA | Probe 5mm, 100x, 300MHz, 2kV (Readout), Red | $60.00 | Active Catalog | 2 Years | CT4560 | X100 | 300 MHz | 2 kVrms | 1.2 m | 100 MΩ | EA |
 |
CT4570RA | Probe 5mm, 100x, 500MHz, 2kV (Readout), Red | $120.00 | Active Catalog | 2 Years | CT4560 | X100 | 500 MHz | 2 kVrms | 1.2 m | 100 MΩ | EA |
 |
CT4571RA | Probe 5mm, 100x, 300MHz, 4kV (Readout), Red | $130.00 | Active Catalog | 2 Years | CT4560 | X100 | 300 MHz | 4 kVrms | 1.2 m | 100 MΩ | EA |
 |
CT4572RA | Probe 5mm, 100x, 500MHz, 4kV (Readout), Precision 1%, Red | $140.00 | Active Catalog | 2 Years | CT4560 | X100 | 500 MHz | 4 kVrms | 1.2 m | 100 MΩ | EA |
Specifications
- Type
- CT4560
- Attenuation
- X10
- Bandwidth
- 500 MHz
- Rated Voltage
- 500 CAT II
- Cable Length
- 1.2 m
- Impedance
- 10 MΩ
- Input Capacitance
- 12 pF
- Rise Time
- 0.7 ns
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Manual
