CT4536-02-120-0_2
CT4536 Series
Active CatalogCT4536 Series Probe Lead Sets (2 mm Tip Configurations)

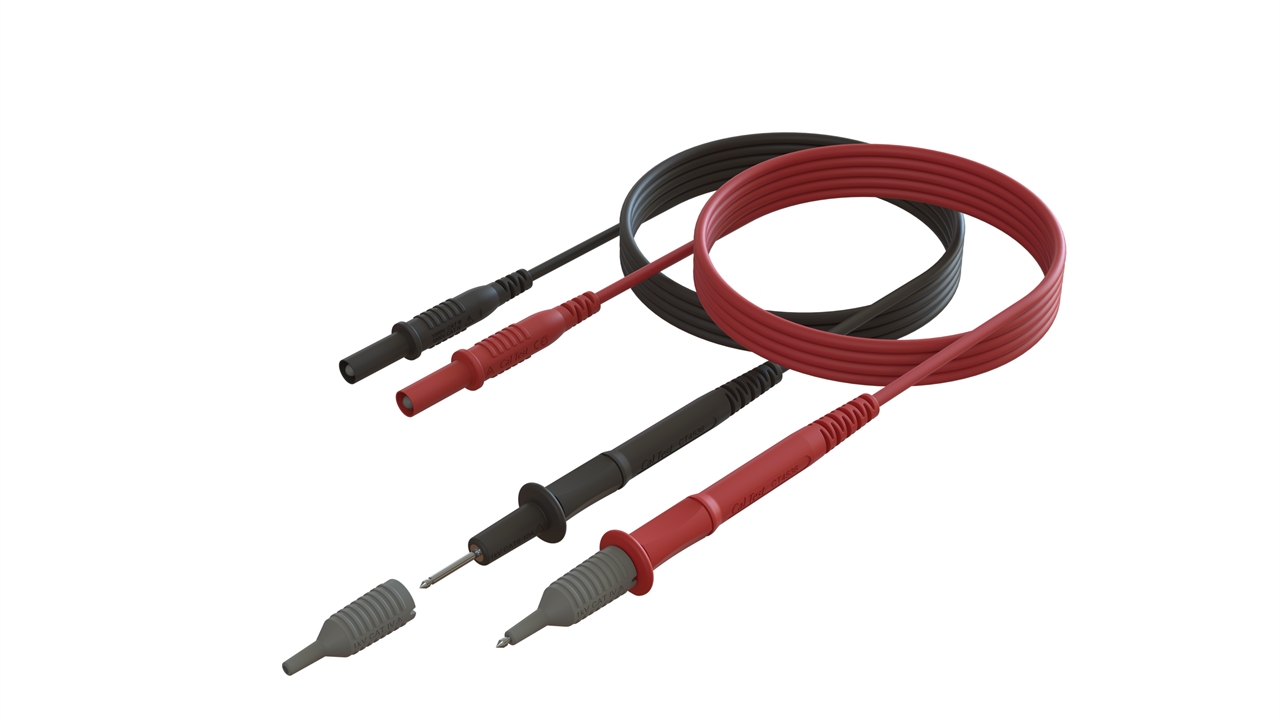

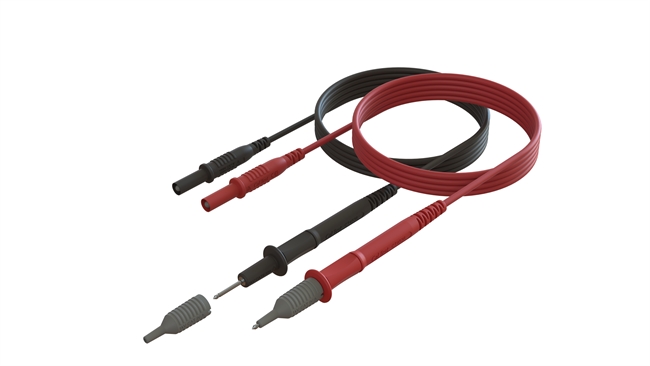

Probe Lead, 2 mm Tip to Sheathed Plug, with Cap, 120 cm, Black and Red Pair
Where to Buy
No distributor stock found. View all distributors →
Overview
The CT4536 Series probe leads from Cal Test Electronics are designed for handheld meter use and inline test setups in industrial, field service, and laboratory environments. Options include 2 mm tip to right-angle banana plug and 2 mm tip to straight banana plug configurations, with 120 cm black/red probe lead pairs. The probe body features a brass, nickel-plated tip with a removable safety cap and is rated for IEC 61010-031 protection.
Each lead assembly provides 1,500 VDC CAT III / 1,000 V CAT IV with the cap installed, and the series specifies 1,000 V CAT II when the tip cover is removed.
Features
- 2 mm tip to right-angle banana plug or 2 mm tip to straight banana plug configurations
- 120 cm black/red probe lead pairs for handheld meters and inline test setups
- Brass, nickel-plated probe tip with removable safety cap
- 1500 VDC CAT III / 1000 V CAT IV (cap installed); 1000 V CAT II (tip cover removed)
Kit Contents
- (1) Probe Lead, 2mm Tip - 4mm Shth Plug, w/Cap, 120cm, Black - CT4536-02-120-0
- (1) Probe Lead, 2mm Tip - 4mm Shth Plug, w/Cap, 120cm, Red - CT4536-02-120-2
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Connector B | Length | Color | Rated Voltage | Max Current | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4536-01-120-0_2 | Probe Lead, 2mm Tip - RaShth P, w/Cap, 120cm, Black/Red Pair | $12.00 | Active Catalog | 1 Year | Test Probe | 2mm Tip | Banana Plug | 120 cm | Black/Red Pair | 1,500 V DC CAT III / 1,000 V CAT IV | 10 A | 18 AWG | EA |
 |
CT4536-02-120-0_2 | Probe Lead, 2mm Tip-Shth Plug, w/Cap, 120cm, Black/Red Pair | $12.00 | Active Catalog | 1 Year | Test Probe | 2mm Tip | Right Angle Banana Plug | 120 cm | Black/Red Pair | 1,500 V DC CAT III / 1,000 V CAT IV | 10 A | 18 AWG | EA |
Specifications
- Type
- Test Probe
- Connector A
- 2mm Tip
- Connector B
- Right Angle Banana Plug
- Length
- 120 cm
- Color
- Black/Red Pair
- Rated Voltage
- 1,500 V DC CAT III / 1,000 V CAT IV
- Max Current
- 10 A
- Wire Gauge
- 18 AWG
- Jacket Material
- PVC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 98 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
