CT4536-01-120-0_2
CT4536 Series
Active CatalogCT4536 Series Probe Lead Sets (2 mm Tip Configurations)

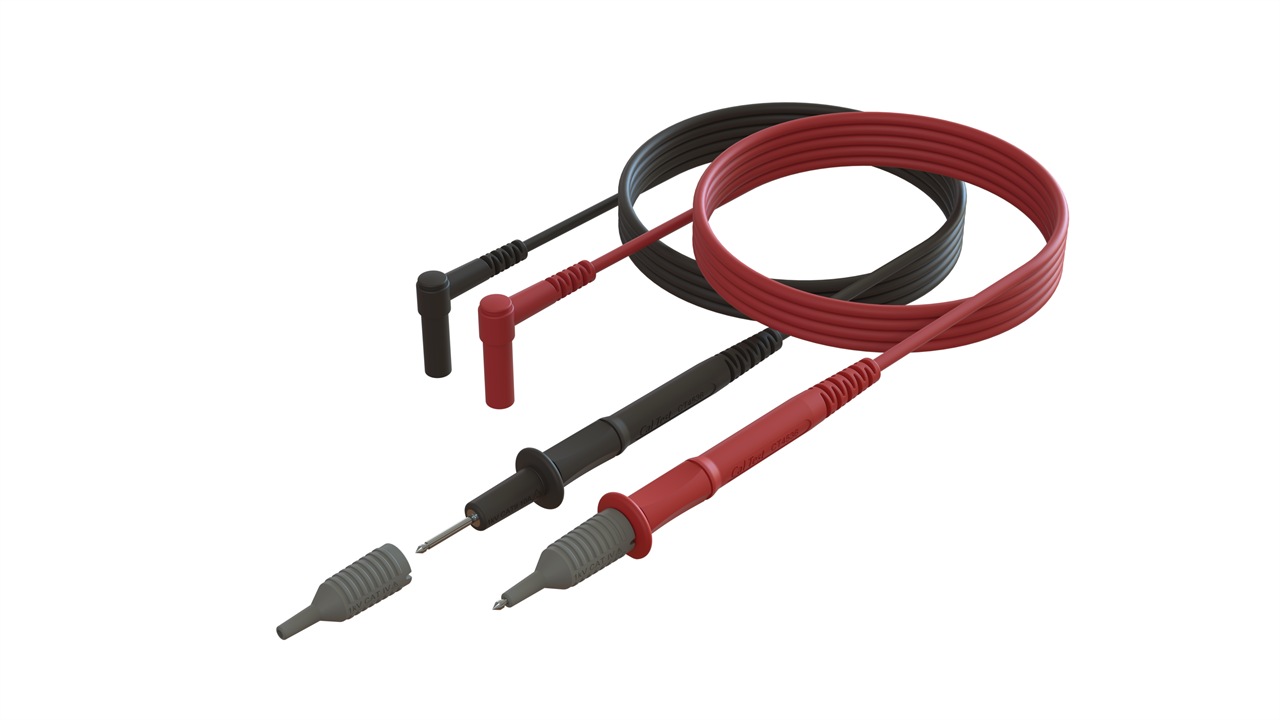

Probe Lead, 2 mm Tip to Right-Angle Sheath Plug, with Cap, 120 cm, Black and Red Pair
Where to Buy
Overview
The CT4536 Series probe leads from Cal Test Electronics are designed for handheld meter use and inline test setups in industrial, field service, and laboratory environments. Options include 2 mm tip to right-angle banana plug and 2 mm tip to straight banana plug configurations, with 120 cm black/red probe lead pairs. The probe body features a brass, nickel-plated tip with a removable safety cap and is rated for IEC 61010-031 protection.
Each lead assembly provides 1,500 VDC CAT III / 1,000 V CAT IV with the cap installed, and the series specifies 1,000 V CAT II when the tip cover is removed.
Features
- 2 mm tip to right-angle banana plug or 2 mm tip to straight banana plug configurations
- 120 cm black/red probe lead pairs for handheld meters and inline test setups
- Brass, nickel-plated probe tip with removable safety cap
- 1500 VDC CAT III / 1000 V CAT IV (cap installed); 1000 V CAT II (tip cover removed)
Kit Contents
- (1) Probe Lead, 2mm Tip - 4mm RaShth P, w/Cap, 120cm, Black - CT4536-01-120-0
- (1) Probe Lead, 2mm Tip - 4mm RaShth P, w/Cap, 120cm, Red - CT4536-01-120-2
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Connector B | Length | Color | Rated Voltage | Max Current | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4536-01-120-0_2 | Probe Lead, 2mm Tip - RaShth P, w/Cap, 120cm, Black/Red Pair | $12.00 | Active Catalog | 1 Year | Test Probe | 2mm Tip | Right Angle Banana Plug | 120 cm | Black/Red Pair | 1,500 V DC CAT III / 1,000 V CAT IV | 10 A | 18 AWG | EA |
 |
CT4536-02-120-0_2 | Probe Lead, 2mm Tip-Shth Plug, w/Cap, 120cm, Black/Red Pair | $12.00 | Active Catalog | 1 Year | Test Probe | 2mm Tip | Banana Plug | 120 cm | Black/Red Pair | 1,500 V DC CAT III / 1,000 V CAT IV | 10 A | 18 AWG | EA |
 |
CT4643-120 | Probe Lead Set, 2mm Tip-RaShth P, w/Cap, w/Allig, 120cm B/R | $20.00 | Active Catalog | 1 Year | Test Probe Kit | 2mm Tip | Right Angle Banana Plug | 120 cm | Black/Red Pair | 1,500 V DC CAT III / 1,000 V CAT IV | 10 A | 18 AWG | EA |
Specifications
- Type
- Test Probe
- Connector A
- 2mm Tip
- Connector B
- Right Angle Banana Plug
- Length
- 120 cm
- Color
- Black/Red Pair
- Rated Voltage
- 1,500 V DC CAT III / 1,000 V CAT IV
- Max Current
- 10 A
- Wire Gauge
- 18 AWG
- Jacket Material
- PVC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 98 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
