CT4525

Oscilloscope users are often faced with the need to make measurements between two voltages, both of which are not at earth ground. Differential probes allow earth grounded oscilloscope to make safe, accurate floating measurements between these two points.

The CT4525 High-Voltage differential probe allows differential voltage measurement s up to 40 kV peak to peak, one of the highest measuring probes available on the market. The probe convert these floating signals to low-voltage ground-referenced signal that can be displayed safely on any ground-referenced oscilloscope.

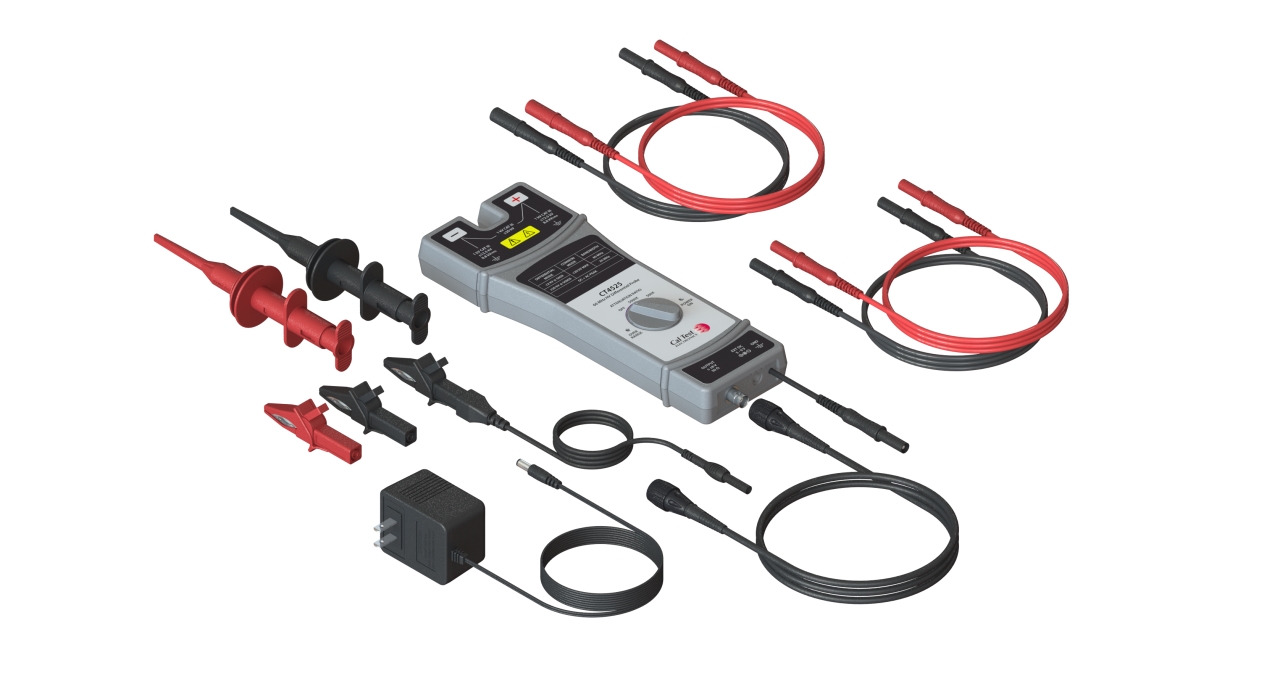

Compatible with oscilloscope from all major manufacturers, the CT4525 connects to highvoltage signals with a full range of included accessories, unique high-voltage hook clips.

For added safety, probe kit also includes a special grounding banana connection to alligator clip lead when measuring voltages great than 10 kV DC or 5 kVrms.

Powered by an included mains adapter, the probe is easy to setup and use

Features:

• Up to 40 kVp-p High-Voltage Operation
• Bandwidth to 60 MHz
• 1,000 V CAT III rated
• Voltage over range indicator
• Switchable attenuation, 500x / 5000x
• Mains power operations
• Insulated BNC connection cable
• Two-year warranty

Applications:

• Precision power semiconductors
• Switchable power supply design
• Floating measurements
• Power converter measurements
• Precision motor drive measurements
