CT4446-60
CT4446 Series
DiscontinuedSMA Male to BNC Male, RG142B/U

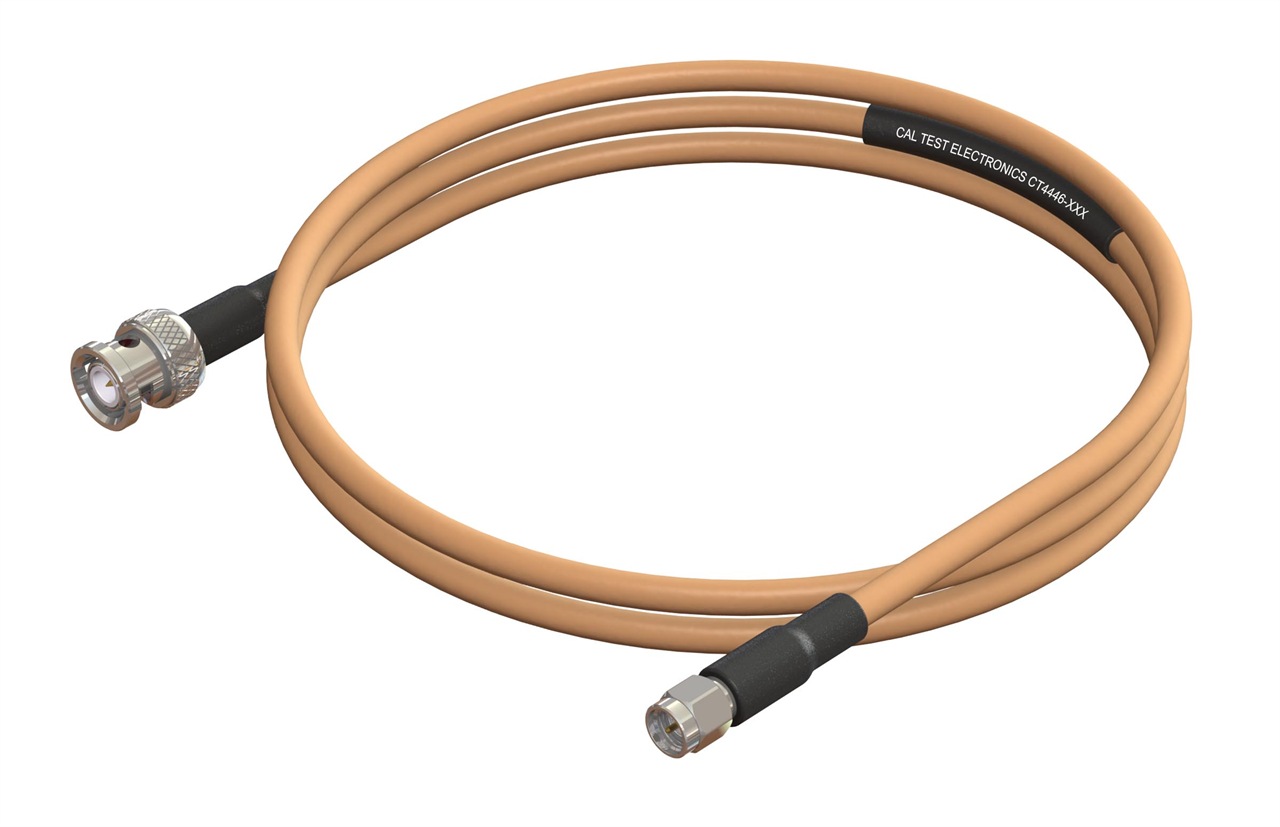

SMA Male to BNC Male, RG142B/U, 60cm (24")
1 Year Warranty
Where to Buy
Overview
Instrument grade SMA male to BNC male coaxial cable assembly using RG-142B/U is a 50 Ω, double insulated coaxial cable offering higher bandwidth than standard RG-58 cable.
This instrument grade cable comes as close as possible to the performance and tight tolerances of metrology grade, yet retaining cost effectiveness and durability. It is perfect to meet your everyday testing needs whether interconnecting an oscilliscope, spectrum analyzer, network analyzer, or arbitrary waveform generator. Available in two convenient lengths of 60 and 100 cm.
- Double shielded RG-142B/U coaxial cable
- Impedance: 50 Ω
- Frequency range: DC to 4 GHz
- Excellent VSWR: 1.20:1 @ 1 GHz
- RoHS 2 compliant
Models
| Image | Model | Description | MSRP | Status | Warranty | Cable Type | Length | Impedance | Bandwidth | VSWR | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4446-100 | SMA Male to BNC Male, RG142B/U, 100cm (40") | $75.00 | Active Catalog | 1 Year | RG-142B/U | 100 cm | 50 Ω | DC to 4 GHz | 1.20:1 @ 1 GHz | EA |
 |
CT4446-60 | SMA Male to BNC Male, RG142B/U, 60cm (24") | Discontinued | 1 Year | RG-142B/U | 60 cm | 50 Ω | DC to 4 GHz | 1.20:1 @ 1 GHz | EA |
Specifications
- Cable Type
- RG-142B/U
- Length
- 60 cm
- Impedance
- 50 Ω
- Bandwidth
- DC to 4 GHz
- VSWR
- 1.20:1 @ 1 GHz
- Connector Grade
- Instrument
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- South Korea
- Lead Time
- 56 days
- See More Specifications
- Drawing
