CT4442-100
CT4442 Series
Active CatalogN-Type Male to N-Type Male, RG142B/U

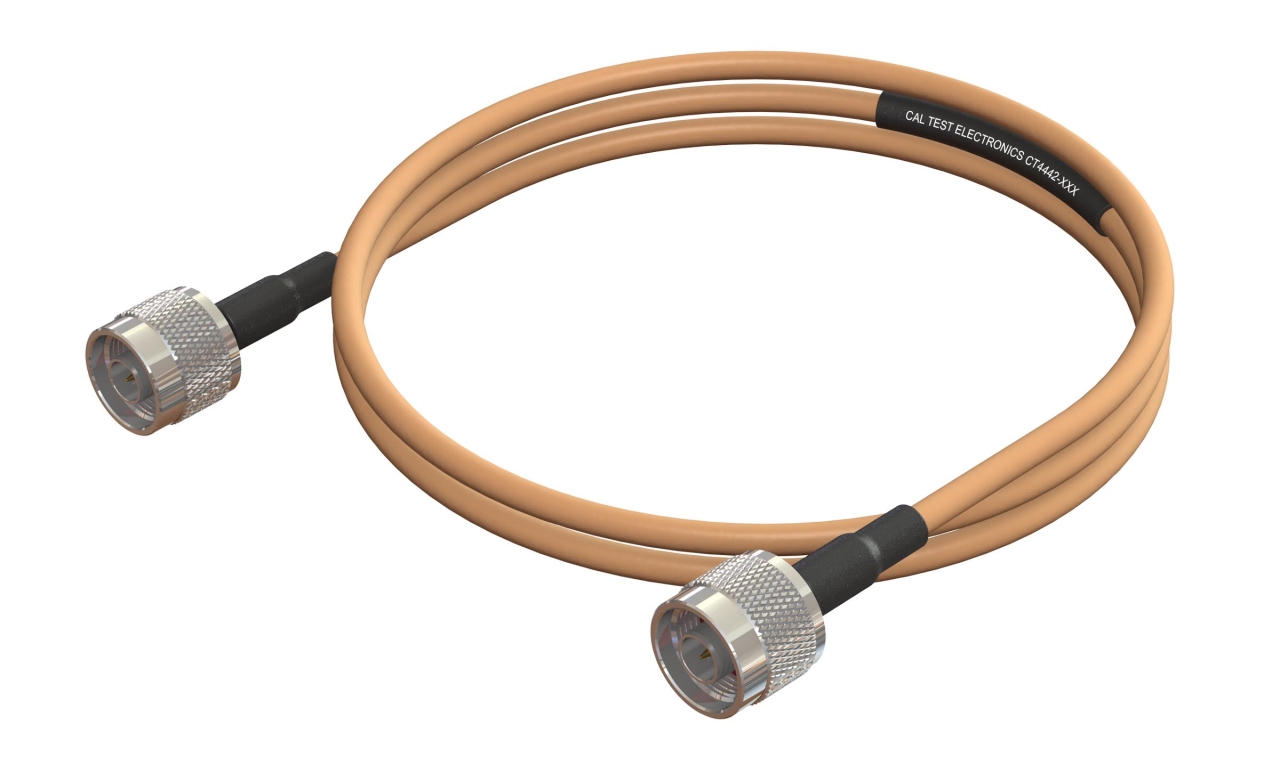

N-Type Male to N-Type Male, RG142B/U, 100cm (40")
$91.001 Year Warranty
Where to Buy
Overview
Instrument grade N Type male to N Type male coaxial cable assembly using RG-142B/U is a 50 Ω, double insulated coaxial cable offering higher bandwidth than standard RG-58 cable.
This instrument grade cable comes as close as possible to the performance and tight tolerances of metrology grade, yet retaining cost effectiveness and durability. It is perfect to meet your everyday testing needs whether interconnecting an oscilliscope, spectrum analyzer, network analyzer, or arbitrary waveform generator. Available in two convenient lengths of 60 and 100 cm.
- Double shielded RG-142B/U coaxial cable
- Impedance: 50 Ω
- Frequency range: DC to 6 GHz
- Excellent VSWR: 1.30:1 @ 6 GHz
- RoHS 2 compliant
Models
| Image | Model | Description | MSRP | Status | Warranty | Cable Type | Length | Impedance | Bandwidth | VSWR | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4442-100 | N-Type Male to N-Type Male, RG142B/U, 100cm (40") | $91.00 | Active Catalog | 1 Year | RG-142B/U | 100 cm | 50 Ω | DC to 6 GHz | 1.30:1 @ 6 GHz | EA |
 |
CT4442-60 | N-Type Male to N-Type Male, RG142B/U, 60cm (24") | Discontinued | 1 Year | RG-142B/U | 60 cm | 50 Ω | DC to 6 GHz | 1.30:1 @ 6 GHz | EA |
Specifications
- Cable Type
- RG-142B/U
- Length
- 100 cm
- Impedance
- 50 Ω
- Bandwidth
- DC to 6 GHz
- VSWR
- 1.30:1 @ 6 GHz
- Connector Grade
- Instrument
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- South Korea
- Lead Time
- 56 days
- See More Specifications
- Drawing
