CT4397-04-3

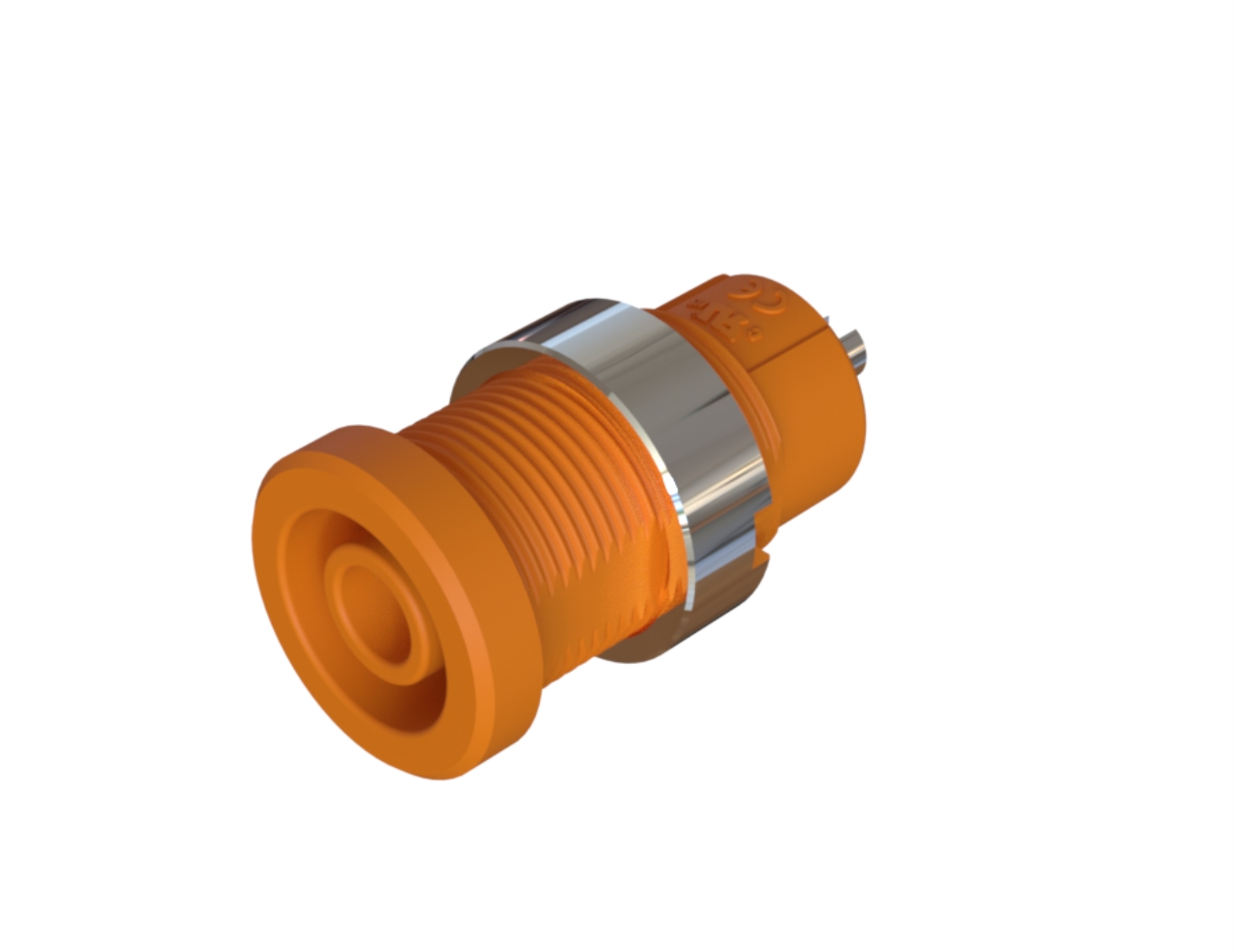

Name: CT4397-04-3 4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Orang
Brand: Cal Test Electronics
SKU: CT4397-04-3
Price: 2.5 USD
Availability: InStock

CT4397-04 Series

Special Order

UL 4 mm Sheathed (Safety) Jack, Panel Mount, 2mm Solder Hole / Slot

4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Orang

$2.501 Year Warranty

Where to Buy

Distributor	Availability
DIGIKEY	Low Stock	Buy Now →
MOUSER ELECTRONICS	Low Stock	Buy Now →
TestEquity LLC	Low Stock	Buy Now →
TestEquity LLC	Low Stock	Buy Now →

Select Variant

Configuration

Threaded Stud 6.4mm Quick-Connect Solder Hole Solder Hole / Slot Short Pin Long Pin Threaded Hole 4.8mm Quick-Connect

Color

Black Blue Brown Green Grey Orange Red Violet White Yellow

Overview

The UL Recognized 4 mm Sheathed (Safety) Jack Panel Mount is designed to provide safety and reliability. This versatile jack accepts both sheathed banana plugs, ensuring full compliance with the IEC 61010 international safety standards, supporting 1,000 V CAT III / 600 V CAT IV ratings. It features an included round panel nut for seamless, efficient placement in even the most space-constrained designs.

The jack terminates using an 2 mm (.080") Solder Hole / Slot.

Features:

UL Recognized component for enhanced safety assurance
IEC 61010 compliance for 1,000 V CAT III / 600 V CAT IV
Available in 10 colors for easy identification in complex setups
Compact design for efficient panel assembly
RoHS 2 compliant for environmental and safety standards
Supplied with round panel nut: Model CT2830
Recommended assembly tool: Model CT2246B

Models

Model	Description	MSRP	Status	Warranty	Type	Rated Voltage	Color	Contact Material	Insulation Material	Max Current	Max Voltage	UOM
CT4397-04-0	4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Black	$2.50	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Black	Brass, Nickel Plated	Polyamide	25 A	-	EA
CT4397-04-1	4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Brown	$2.50	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Brown	Brass, Nickel Plated	Polyamide	25 A	-	EA
CT4397-04-2	4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Red	$2.50	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Red	Brass, Nickel Plated	Polyamide	25 A	-	EA
CT4397-04-3	4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Orang	$2.50	Special Order	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Orange	Brass, Nickel Plated	Polyamide	25 A	-	EA
CT4397-04-4	4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Yello	$2.50	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Yellow	Brass, Nickel Plated	Polyamide	25 A	-	EA
CT4397-04-5	4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Green	$2.50	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Green	Brass, Nickel Plated	Polyamide	25 A	-	EA
CT4397-04-6	4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Blue	$2.50	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Blue	Brass, Nickel Plated	Polyamide	25 A	-	EA
CT4397-04-7	4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Viole	$2.50	Special Order	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Violet	Brass, Nickel Plated	Polyamide	25 A	-	EA
CT4397-04-8	4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Grey	$2.50	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	Grey	Brass, Nickel Plated	Polyamide	25 A	-	EA
CT4397-04-9	4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, White	$2.50	Active Catalog	1 Year	Panel Mount	1000 V CAT III / 600 V CAT IV	White	Brass, Nickel Plated	Polyamide	25 A	-	EA
