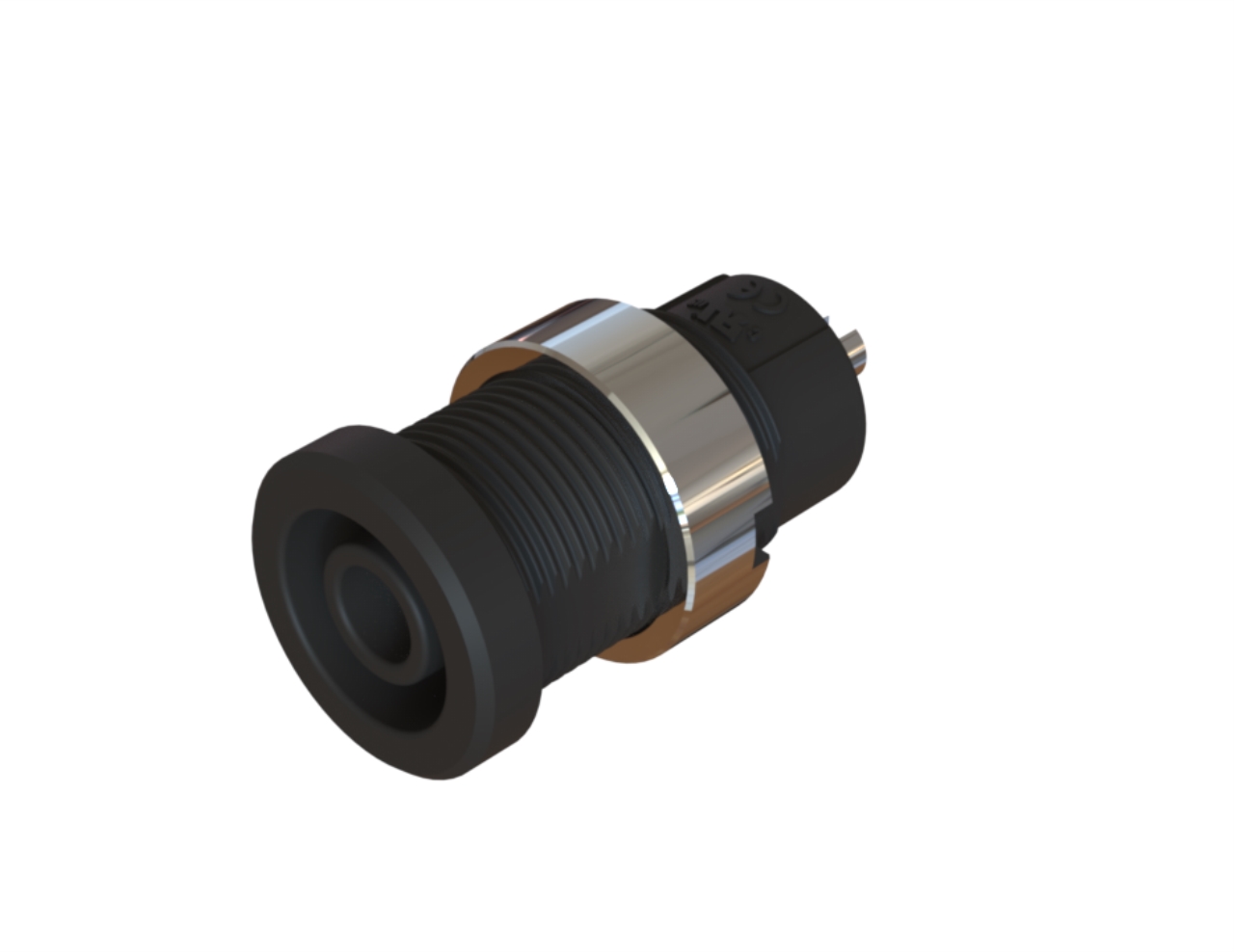

CT4397-04-0
CT4397-04 Series
Active CatalogUL 4 mm Sheathed (Safety) Jack, Panel Mount, 2mm Solder Hole / Slot
4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Black
$2.501 Year Warranty
Where to Buy
Select Variant
Configuration
Overview
The UL Recognized 4 mm Sheathed (Safety) Jack Panel Mount is designed to provide safety and reliability. This versatile jack accepts both sheathed banana plugs, ensuring full compliance with the IEC 61010 international safety standards, supporting 1,000 V CAT III / 600 V CAT IV ratings. It features an included round panel nut for seamless, efficient placement in even the most space-constrained designs.
The jack terminates using an 2 mm (.080") Solder Hole / Slot.
Features:
- UL Recognized component for enhanced safety assurance
- IEC 61010 compliance for 1,000 V CAT III / 600 V CAT IV
- Available in 10 colors for easy identification in complex setups
- Compact design for efficient panel assembly
- RoHS 2 compliant for environmental and safety standards
- Supplied with round panel nut: Model CT2830
- Recommended assembly tool: Model CT2246B
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4397-04-0 | 4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Black | $2.50 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Black | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT4397-04-1 | 4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Brown | $2.50 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Brown | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT4397-04-2 | 4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Red | $2.50 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Red | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT4397-04-3 | 4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Orang | $2.50 | Special Order | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Orange | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT4397-04-4 | 4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Yello | $2.50 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Yellow | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT4397-04-5 | 4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Green | $2.50 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Green | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT4397-04-6 | 4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Blue | $2.50 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Blue | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT4397-04-7 | 4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Viole | $2.50 | Special Order | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Violet | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT4397-04-8 | 4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, Grey | $2.50 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | Grey | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
 |
CT4397-04-9 | 4mm Sheathed Jack, 2mm (.080") Solder Slot, Panel, UL, White | $2.50 | Active Catalog | 1 Year | Panel Mount | 1000 V CAT III / 600 V CAT IV | White | Brass, Nickel Plated | Polyamide | 25 A | - | EA |
Specifications
- Type
- Panel Mount
- Rated Voltage
- 1000 V CAT III / 600 V CAT IV
- Color
- Black
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 25 A
- Max Voltage
- -
- Operating Temperature
- -20C TO +65C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Product Drawing
