Overview

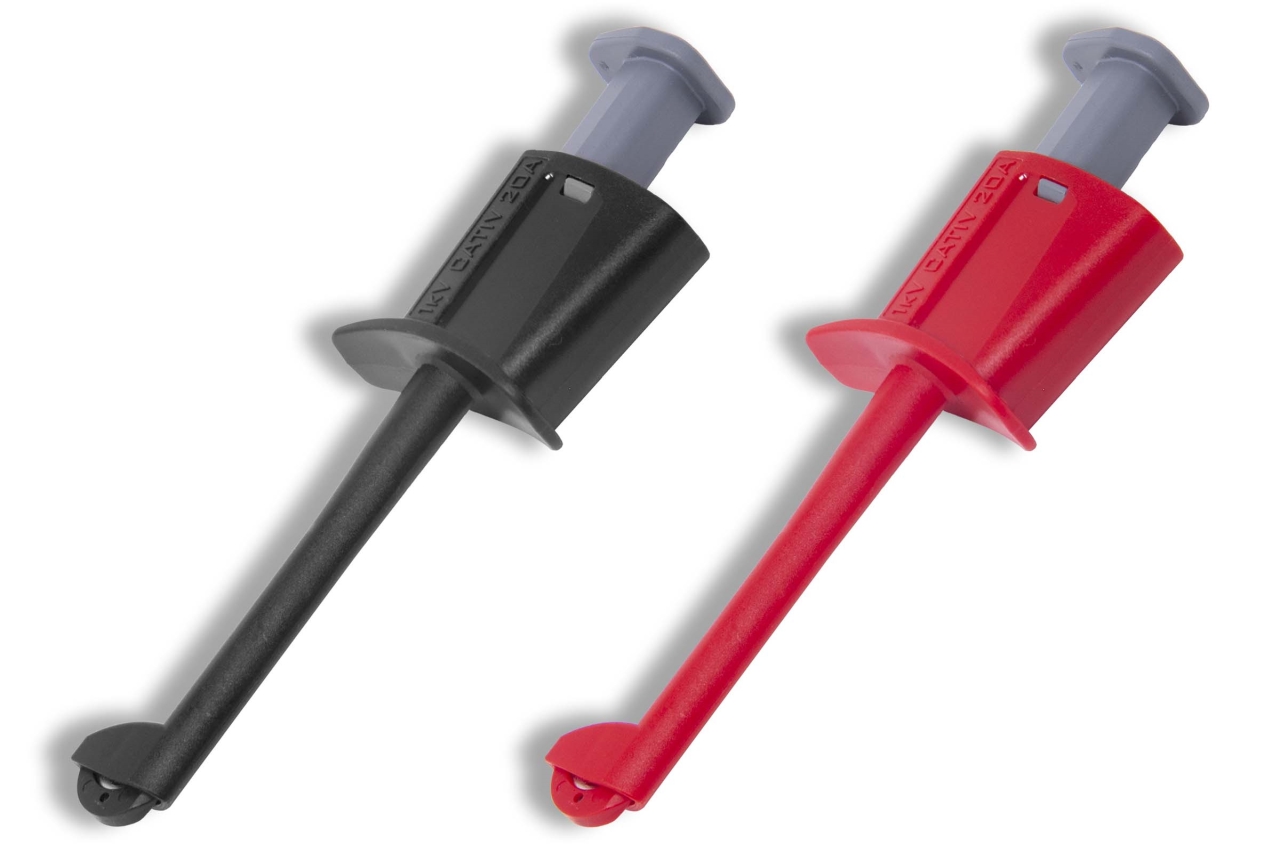

Cal Test’s Sheathed Hook Clip can grip terminals up to 9 mm in diameter. The fully insulated spring loaded clip is IEC 61010-031 rated to 1000 V in a CAT IV environment to 20 A. The 4 mm sheathed banana jack makes for easy connection to sheathed (shrouded) banana plug leads. Available individually in 2 colors (model CT4378-#) or a convenient black and red pair (model CT4379). Applications include electrical, automotive, industrial and high power electronics.
- IEC 601010-031 CAT IV rating
- Spring loaded for secure attachment
- Ergonomic design for comfortable handling
- 4 mm sheathed banana jack interconnect
- Up to 9 mm diameter contact
- RoHS 2 Compliant
- CE Mark
Kit Contents
Specifications
- Type
- Hook
- Color
- B/R Pair
- Rated Voltage
- 1,000 V CAT IV
- Max Current
- 20 A
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
