CT4378-0
CT4378 Series
Active CatalogCAT IV Sheathed Hook Clip

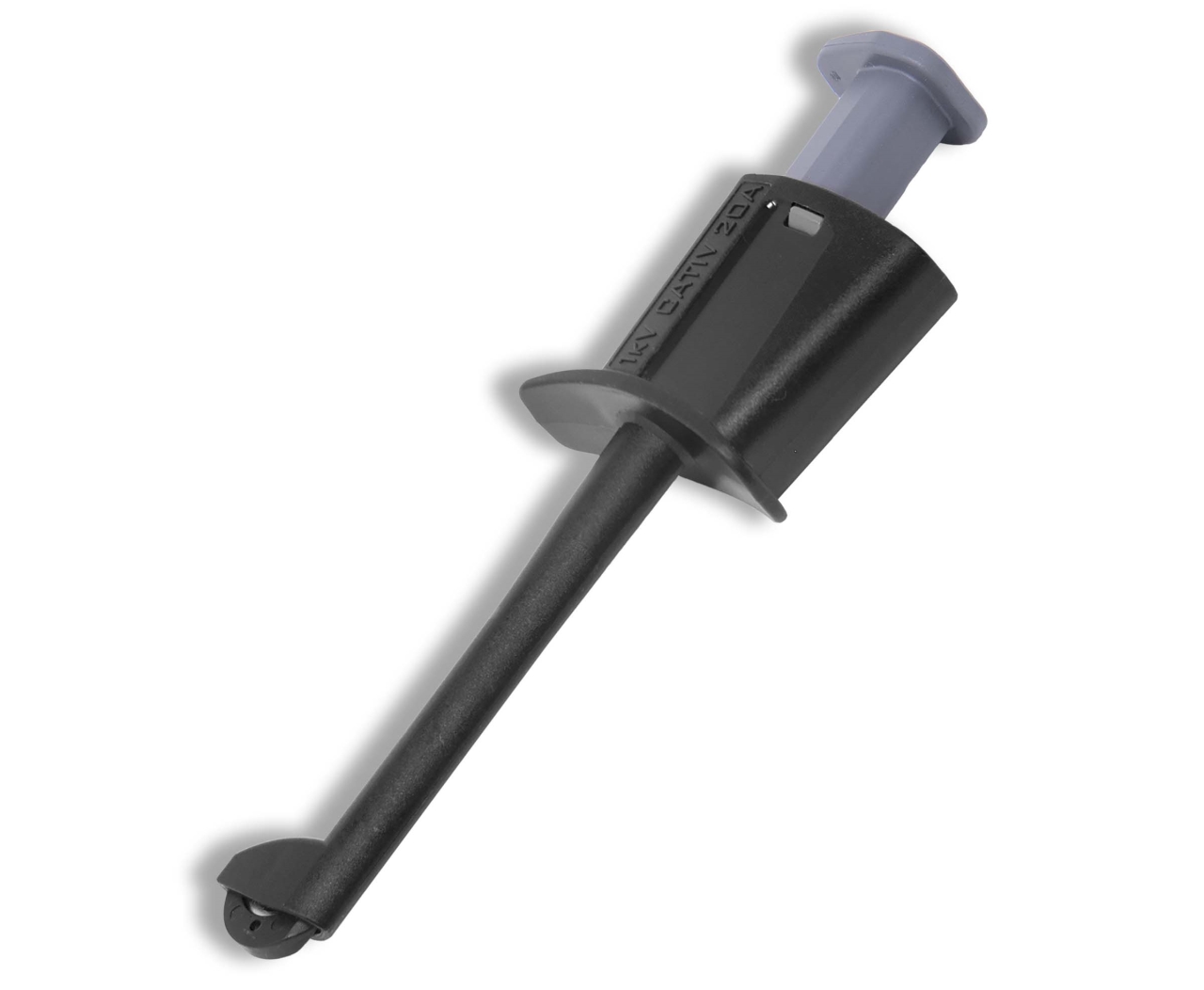

CAT IV Safety Hook Clip, Black
$42.001 Year Warranty
Where to Buy
Overview
Cal Test’s Sheathed Hook Clip can grip terminals up to 9 mm in diameter. The fully insulated spring loaded clip is IEC 61010-031 rated to 1000 V in a CAT IV environment to 20 A. The 4 mm sheathed banana jack makes for easy connection to sheathed (shrouded) banana plug leads. Available individually in 2 colors (model CT4378-#) or a convenient black and red pair (model CT4379). Applications include electrical, automotive, industrial and high power electronics.
- IEC 601010-031 CAT IV rating
- Spring loaded for secure attachment
- Ergonomic design for comfortable handling
- 4 mm sheathed banana jack interconnect
- Up to 9 mm diameter contact
- RoHS 2 Compliant
- CE Mark
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4378-0 | CAT IV Safety Hook Clip, Black | $42.00 | Active Catalog | 1 Year | Hook | Black | 1,000 V CAT IV | 20 A | EA |
 |
CT4378-2 | CAT IV Safety Hook Clip, Red | $42.00 | Active Catalog | 1 Year | Hook | Red | 1,000 V CAT IV | 20 A | EA |
Specifications
- Type
- Hook
- Color
- Black
- Rated Voltage
- 1,000 V CAT IV
- Max Current
- 20 A
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
