Overview
This binding post is perfect for electronic and electrical projects large and small. The versatile threaded binding cap accommodates spade lugs, bare wires, and 2 mm pin tips through the cross-hole. The coaxial banana jack accepts standard, retractile sheath, and fixed sheath 4 mm banana plugs.
The binding post is front panel mounted with the same proven system as Cal Test’s 4 mm Sheathed Banana Jacks, 12 mm round or 12 mm ‘double-D’ hole, to ensure maximum stability and retention. A compact round panel nut makes for easy assembly. (Optional tool CT2246A is available)
For effortless wiring, the binding post features an M4 threaded stud for ring or spade lug connection - M4 nut, flat washer, and lock washer are included. Additionally, the threaded stud features a turret end for solder connection.
- Voltage: 100 V CAT II
- Current: 36 A
- Materials: Body: Polyamide (Nylon); Jack: Brass, Nickel Plated
- Accepts both sheathed and standard 4 mm banana plugs
- Working connection by spade lug, bare wire, or 2 mm pin tip
- Rugged construction
- Available in 6 cap colors
- CE mark
- RoHS 2 compliant
- Mounting and connection hardware included
Models
| Image | Model | Description | MSRP | Status | Warranty | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4231-NI-0 | Sheathed Binding Post, 4mm, Nickel Plated, Black | $6.00 | Active Catalog | 1 Year | 100 V CAT II | Black | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT4231-NI-2 | Sheathed Binding Post, 4mm, Nickel Plated, Red | $6.00 | Active Catalog | 1 Year | 100 V CAT II | Red | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT4231-NI-4 | Sheathed Binding Post, 4mm, Nickel Plated, Yellow | $6.00 | Special Order | 1 Year | 100 V CAT II | Yellow | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |

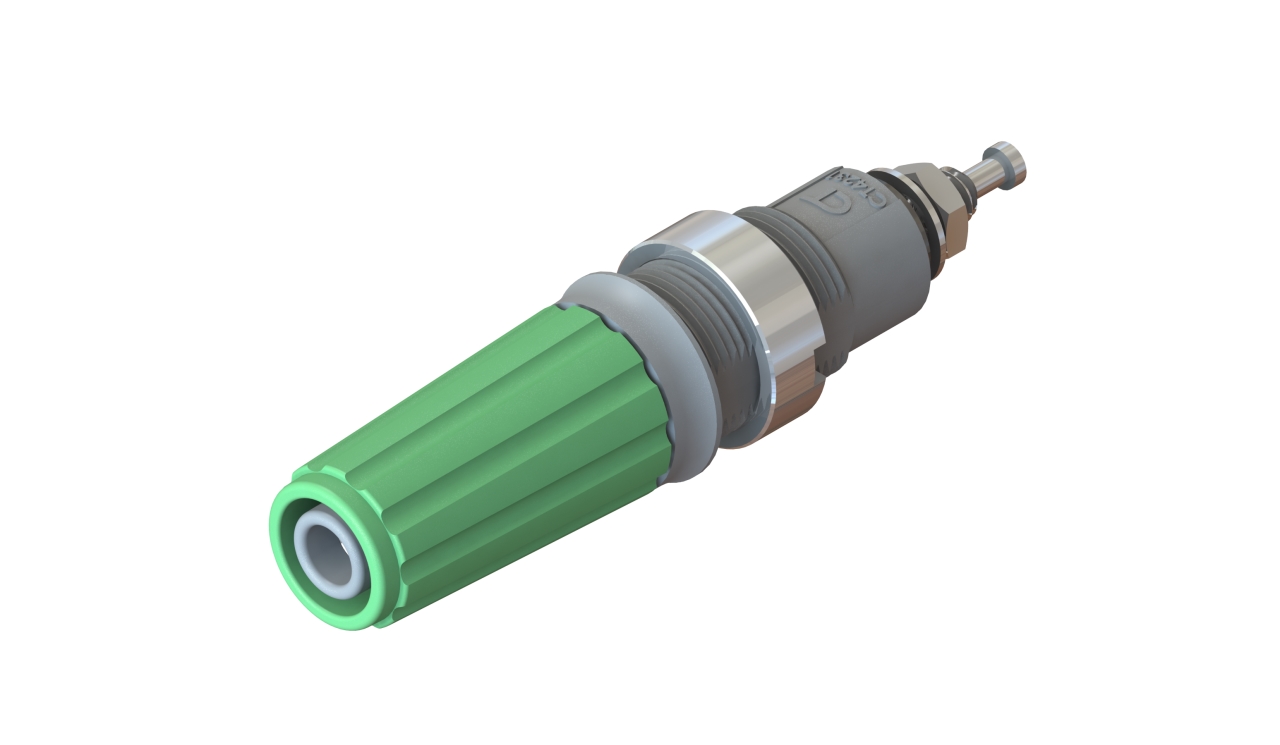

CT4231-NI-5 | Sheathed Binding Post, 4mm, Nickel Plated, Green | $6.00 | Active Catalog | 1 Year | 100 V CAT II | Green | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT4231-NI-6 | Sheathed Binding Post, 4mm, Nickel Plated, Blue | $6.00 | Special Order | 1 Year | 100 V CAT II | Blue | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT4231-NI-9 | Sheathed Binding Post, 4mm, Nickel Plated, White | $6.00 | Special Order | 1 Year | 100 V CAT II | White | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
Specifications
- Rated Voltage
- 100 V CAT II
- Color
- Green
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36 A
- Max Voltage
- -
- Operating Temperature
- 0° to +60° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Product Drawing
