CT4231-NI-0
CT4231 Series
Active Catalog4mm Sheathed Binding Post

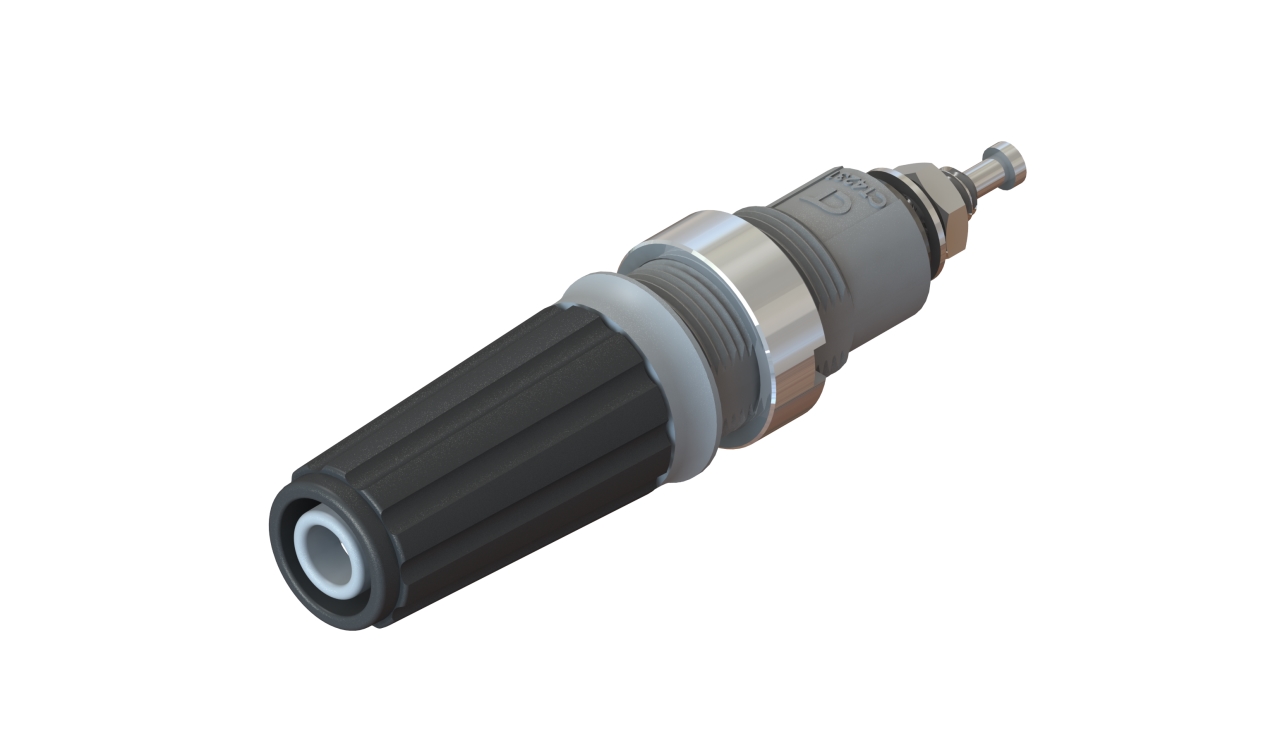

Sheathed Binding Post, 4mm, Nickel Plated, Black
Where to Buy
Overview
This binding post is perfect for electronic and electrical projects large and small. The versatile threaded binding cap accommodates spade lugs, bare wires, and 2 mm pin tips through the cross-hole. The coaxial banana jack accepts standard, retractile sheath, and fixed sheath 4 mm banana plugs.
The binding post is front panel mounted with the same proven system as Cal Test’s 4 mm Sheathed Banana Jacks, 12 mm round or 12 mm ‘double-D’ hole, to ensure maximum stability and retention. A compact round panel nut makes for easy assembly. (Optional tool CT2246A is available)
For effortless wiring, the binding post features an M4 threaded stud for ring or spade lug connection - M4 nut, flat washer, and lock washer are included. Additionally, the threaded stud features a turret end for solder connection.
- Voltage: 100 V CAT II
- Current: 36 A
- Materials: Body: Polyamide (Nylon); Jack: Brass, Nickel Plated
- Accepts both sheathed and standard 4 mm banana plugs
- Working connection by spade lug, bare wire, or 2 mm pin tip
- Rugged construction
- Available in 6 cap colors
- CE mark
- RoHS 2 compliant
- Mounting and connection hardware included
Models
| Image | Model | Description | MSRP | Status | Warranty | Rated Voltage | Color | Contact Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4231-NI-0 | Sheathed Binding Post, 4mm, Nickel Plated, Black | $6.00 | Active Catalog | 1 Year | 100 V CAT II | Black | Brass, Nickel Plated | 36 A | - | EA |
 |
CT4231-NI-2 | Sheathed Binding Post, 4mm, Nickel Plated, Red | $6.00 | Active Catalog | 1 Year | 100 V CAT II | Red | Brass, Nickel Plated | 36 A | - | EA |
 |
CT4231-NI-4 | Sheathed Binding Post, 4mm, Nickel Plated, Yellow | $6.00 | Special Order | 1 Year | 100 V CAT II | Yellow | Brass, Nickel Plated | 36 A | - | EA |
 |
CT4231-NI-5 | Sheathed Binding Post, 4mm, Nickel Plated, Green | $6.00 | Active Catalog | 1 Year | 100 V CAT II | Green | Brass, Nickel Plated | 36 A | - | EA |
 |
CT4231-NI-6 | Sheathed Binding Post, 4mm, Nickel Plated, Blue | $6.00 | Special Order | 1 Year | 100 V CAT II | Blue | Brass, Nickel Plated | 36 A | - | EA |
 |
CT4231-NI-9 | Sheathed Binding Post, 4mm, Nickel Plated, White | $6.00 | Special Order | 1 Year | 100 V CAT II | White | Brass, Nickel Plated | 36 A | - | EA |
Specifications
- Rated Voltage
- 100 V CAT II
- Color
- Black
- Contact Material
- Brass, Nickel Plated
- Max Current
- 36 A
- Max Voltage
- -
- Operating Temperature
- 0° to +60° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Product Drawing
