Overview
The CT4196 differential probe allows safe, accurate measurement between two voltage points where neither point is referenced to ground. Designed for high sensitivity measurements, the probe offers up to 60 MHz bandwidth. Compatible with oscilloscopes from all major manufacturers, the probe is exclusively powered by the included 9 V power adapter.
Features:
- Meets IEC 61010-1 safety standard
- Selectable attenuation settings of 1x/5x/10x
- 60 MHz bandwidth (at 1x setting)
- 35 MHz bandwidth (at 10x setting)
- Up to ±35 V differential
- High accuracy (±2%)
- Power and over range indicator LEDs
- Optional European style 9 V power adapter (CT3957-EU)

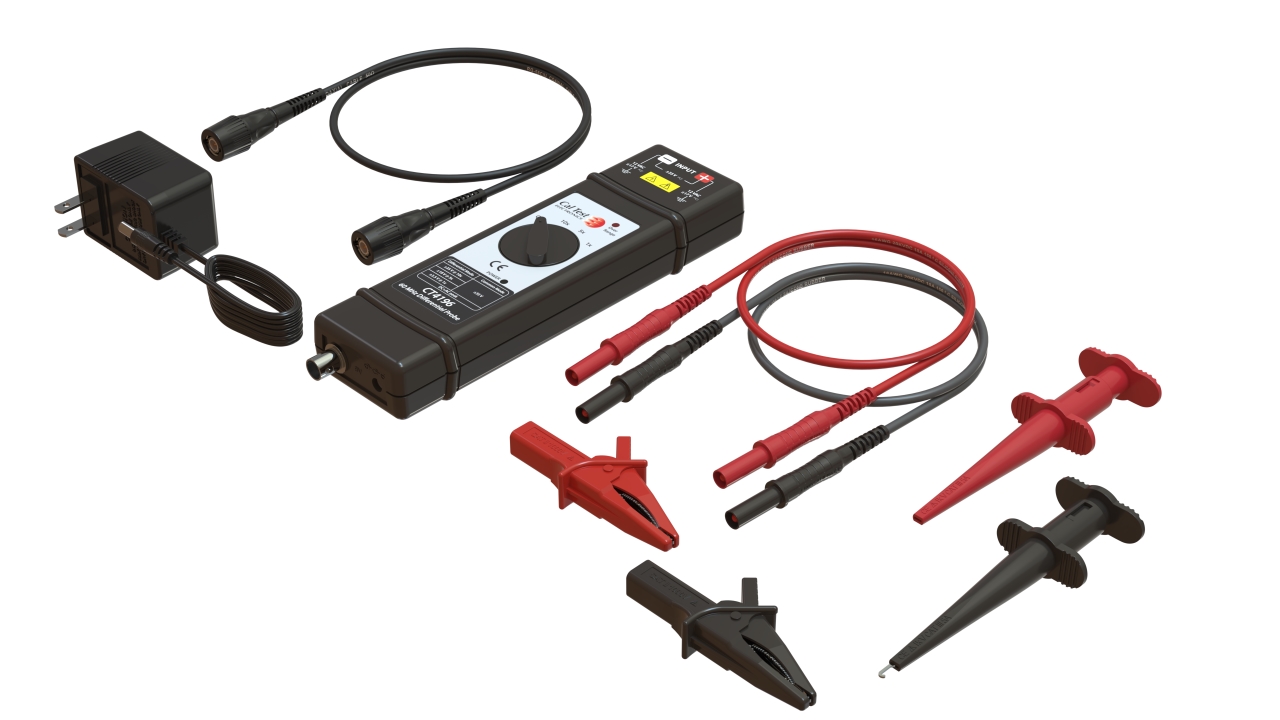

Comes with:
- (2) Pincer Clips, black & red
- (2) Alligator Clips, black & red
- (2) Sheathed 4 mm banana plug test leads, silicone jacketed, black & red
- Insulated BNC cable, 100 cm
- 9 V Power adapter included (CT3957-NA)
Specifications
- Attenuation
- 1x/5x/10x
- Bandwidth
- 60 MHz
- Max Differential Input Voltage
- 35 V
- Rated Voltage
- IEC 61010-1 CAT II
- Input Impedance
- 4 MΩ
- Rise Time
- 5.8 ns
- Input Leads Length
- 55 cm
- Output Leads Length
- 100 cm
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 49 days
- See More Specifications
- Manual
Documents
- DatasheetDatasheet
- ManualManual
- Power Adapter Compatibility GuidePower Adapter Compatibility Guide
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
