CT4098-25
CT4098 Series

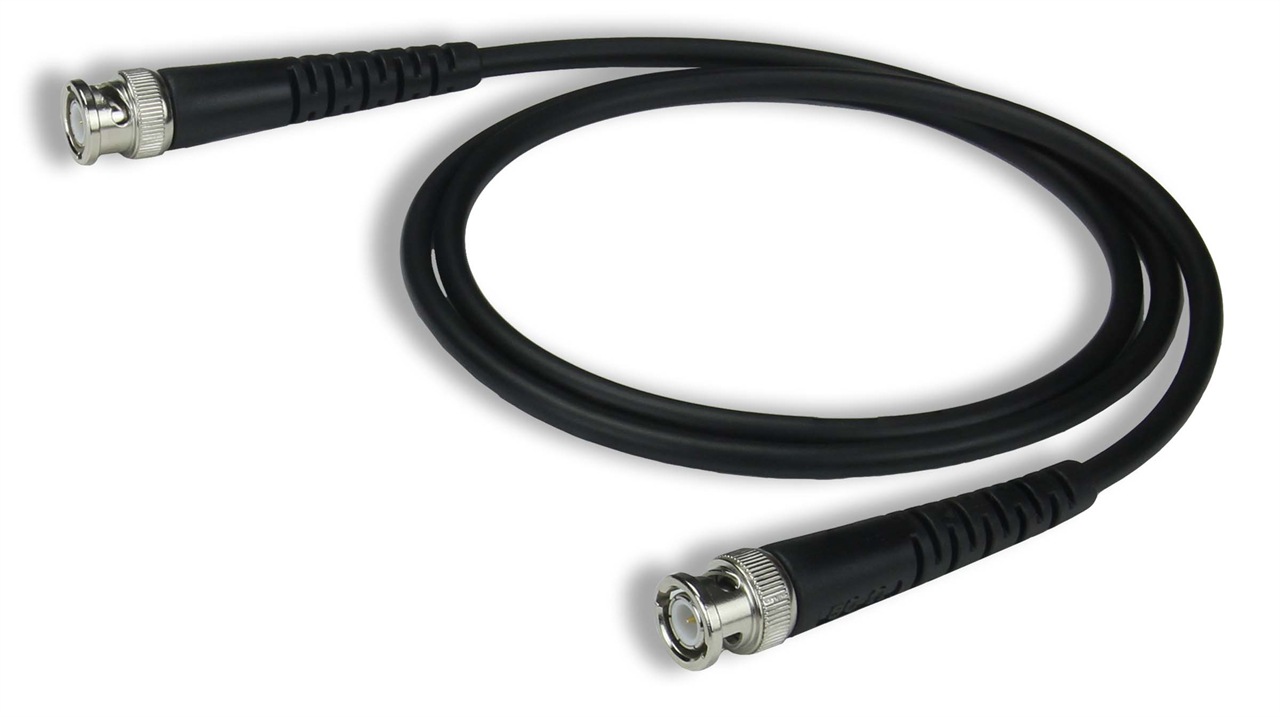

DiscontinuedBNC Male to BNC Male Cable
BNC (m) Cable Assembly - RG223/U, 25cm, Black
1 Year Warranty
Where to Buy
Overview
High Quality double shielded BNC male to male coaxial cable assembly. Molded bend relief boot.
- 50 Ohm
- Available in 6 lengths
Models
| Image | Model | Description | MSRP | Status | Warranty | Cable Type | Length | Impedance | Bandwidth | VSWR | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4098-100 | BNC (m) Cable Assembly - RG223/U, 100cm, Black | $38.00 | Active Catalog | 1 Year | RG-223/U | 100 cm | 50 Ω | DC to 1 Ghz | 1.20:1 - DC to 500 MHz 1.70:1 - 500 MHz to 1 GHz | EA |
 |
CT4098-120 | BNC (m) Cable Assembly - RG223/U, 120cm, Black | Discontinued | 1 Year | RG-223/U | 120 cm | 50 Ω | DC to 1 Ghz | 1.20:1 - DC to 500 MHz 1.70:1 - 500 MHz to 1 GHz | EA | |
 |
CT4098-150 | BNC (m) Cable Assembly - RG223/U, 150cm, Black | $42.00 | Active Catalog | 1 Year | RG-223/U | 150 cm | 50 Ω | DC to 1 Ghz | 1.20:1 - DC to 500 MHz 1.70:1 - 500 MHz to 1 GHz | EA |
 |
CT4098-200 | BNC (m) Cable Assembly - RG223/U, 200cm, Black | Discontinued | 1 Year | RG-223/U | 200 cm | 50 Ω | DC to 1 Ghz | 1.20:1 - DC to 500 MHz 1.70:1 - 500 MHz to 1 GHz | EA | |
 |
CT4098-25 | BNC (m) Cable Assembly - RG223/U, 25cm, Black | Discontinued | 1 Year | RG-223/U | 25 cm | 50 Ω | DC to 1 Ghz | 1.20:1 - DC to 500 MHz 1.70:1 - 500 MHz to 1 GHz | EA | |
 |
CT4098-250 | BNC (m) Cable Assembly - RG223/U, 250cm, Black | $64.00 | Active Catalog | 1 Year | RG-223/U | 250 cm | 50 Ω | DC to 1 Ghz | 1.20:1 - DC to 500 MHz 1.70:1 - 500 MHz to 1 GHz | EA |
 |
CT4098-50 | BNC (m) Cable Assembly - RG223/U, 50cm, Black | $24.00 | Active Catalog | 1 Year | RG-223/U | 50 cm | 50 Ω | DC to 1 Ghz | 1.20:1 - DC to 500 MHz 1.70:1 - 500 MHz to 1 GHz | EA |
Specifications
- Cable Type
- RG-223/U
- Length
- 25 cm
- Impedance
- 50 Ω
- Bandwidth
- DC to 1 Ghz
- VSWR
- 1.20:1 - DC to 500 MHz 1.70:1 - 500 MHz to 1 GHz
- Connector Grade
- General Purpose
- Insertion Loss
- 0.8 dB/m @ 1 GHz
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 70 days
