CT4076-NA
CT4076 Series
Active Catalog35 MHz Differential Probe
Differential Probe Kit, 35MHz, 15kV, 100x/1000x, NA Adapter
$920.001 Year Warranty
Overview
Differential probes allow for safe, accurate measurements between two voltage points where neither point is referenced to ground.
Model CT4076 features 100x/1000x attenuation settings, 35 MHz bandwidth and ±7.5 kV maximum differential - all in a compact, safety yellow housing.
Compatible with oscilloscopes from all major manufacturers, the probe is ideal where high sensitivity and dynamic range is needed.
User applications include:
- Precise power semiconductor device measurements
- Switching power supply design
- Measurement of power converters
- Precise measurement of motor drives
Features:
- Meets IEC 61010-031 safety standard
- Up to ±750 V / ±7.5 kV differential
- 35 MHz bandwidth (3 dB)
- Excellent CMRR
- Power and over-range indicators

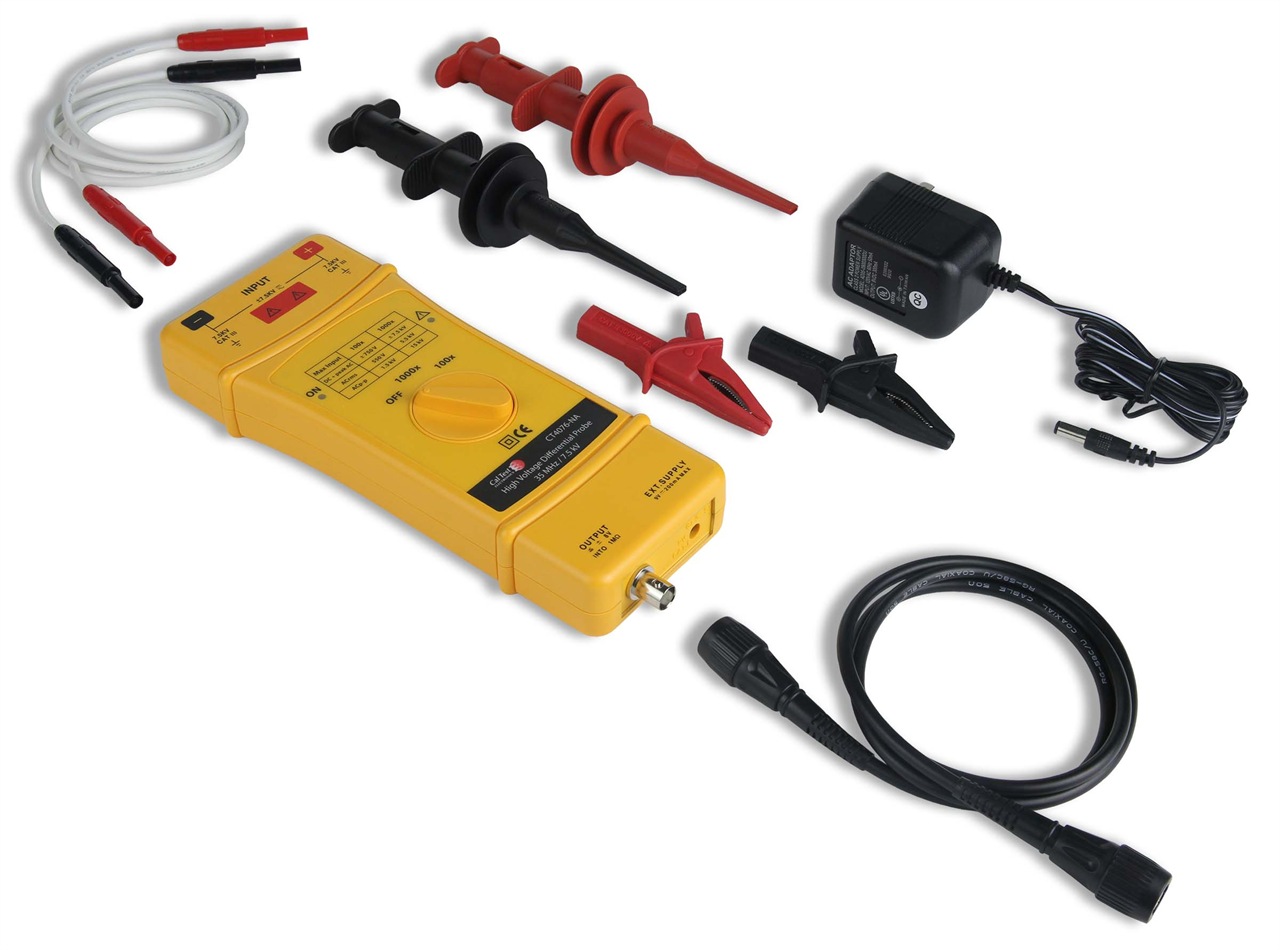

- Kit contains:
- Differential probe
- (2) HV Hook clips, black & red
- (2) Alligator clips, black & red
- (2) HV Banana plug leads, black & red
- Insulated BNC cable
- 5V AC/DC wall mount adapter (CT4476)
- User manual
Specifications
- Attenuation
- 100x/1000x
- Bandwidth
- 35 MHz
- Max Differential Input Voltage
- 7500 V (7.5 kV)
- Rated Voltage
- CAT I
- Input Impedance
- 50 MΩ
- Rise Time
- 10 ns
- Input Leads Length
- 60 cm
- Output Leads Length
- 100 cm
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 49 days
